How to Set Up the Kiosk Display | Catalog

Video Guide

Image Attached

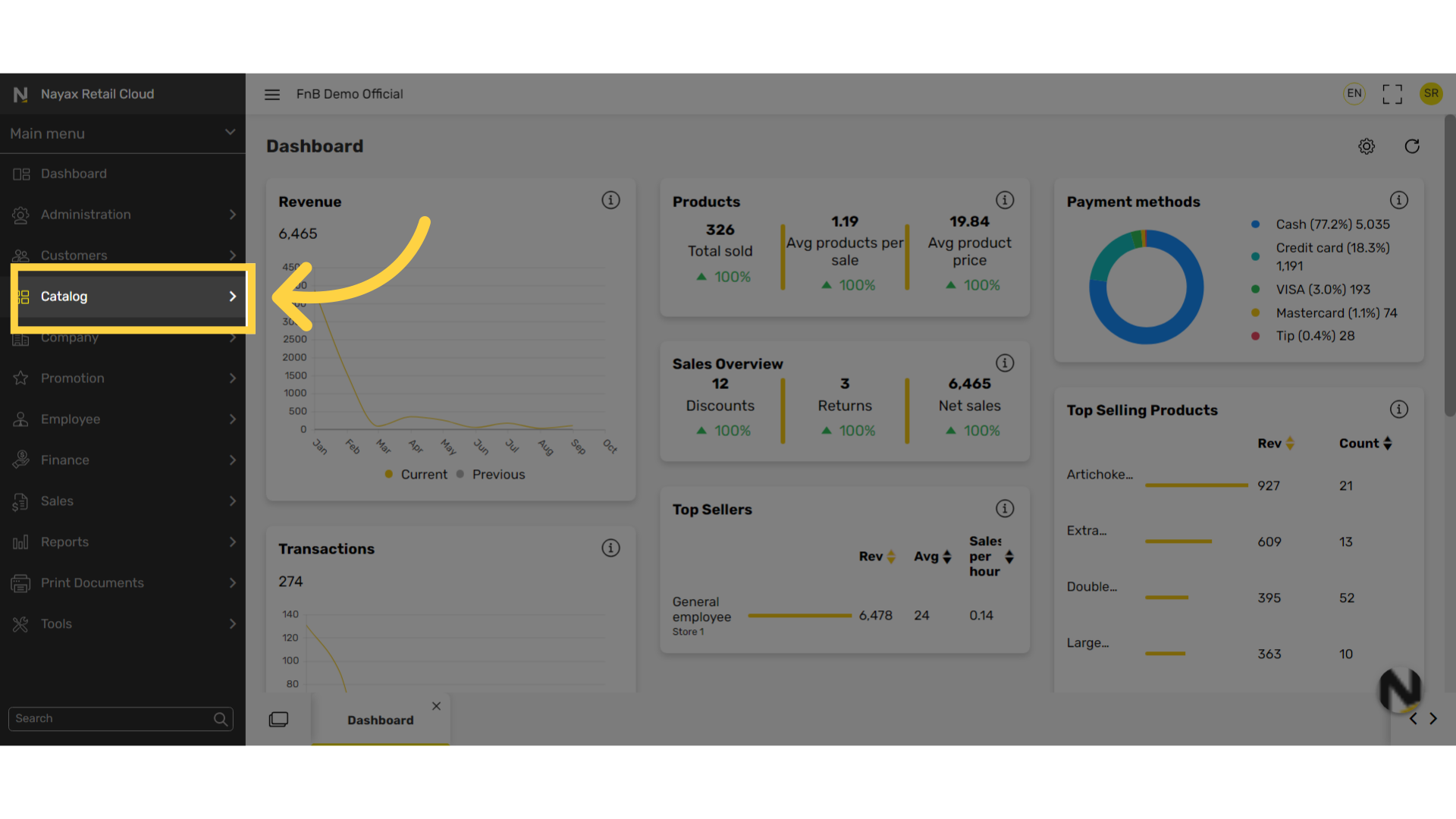

On the Dashboard of your Retail Core management suite click on the catalog tab.

Image Attached

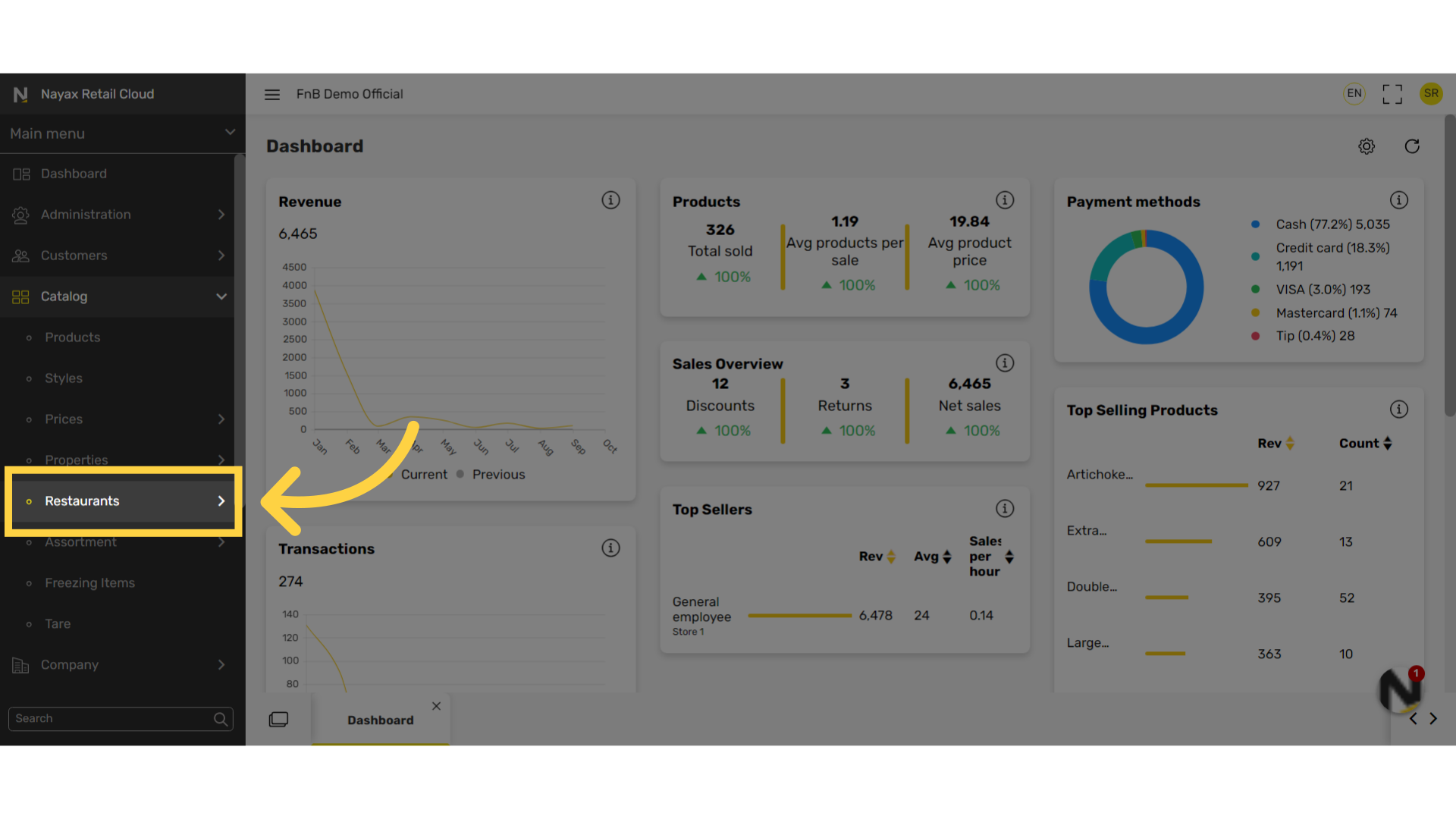

In the sub-menu click on Restaurants tab.

Image Attached

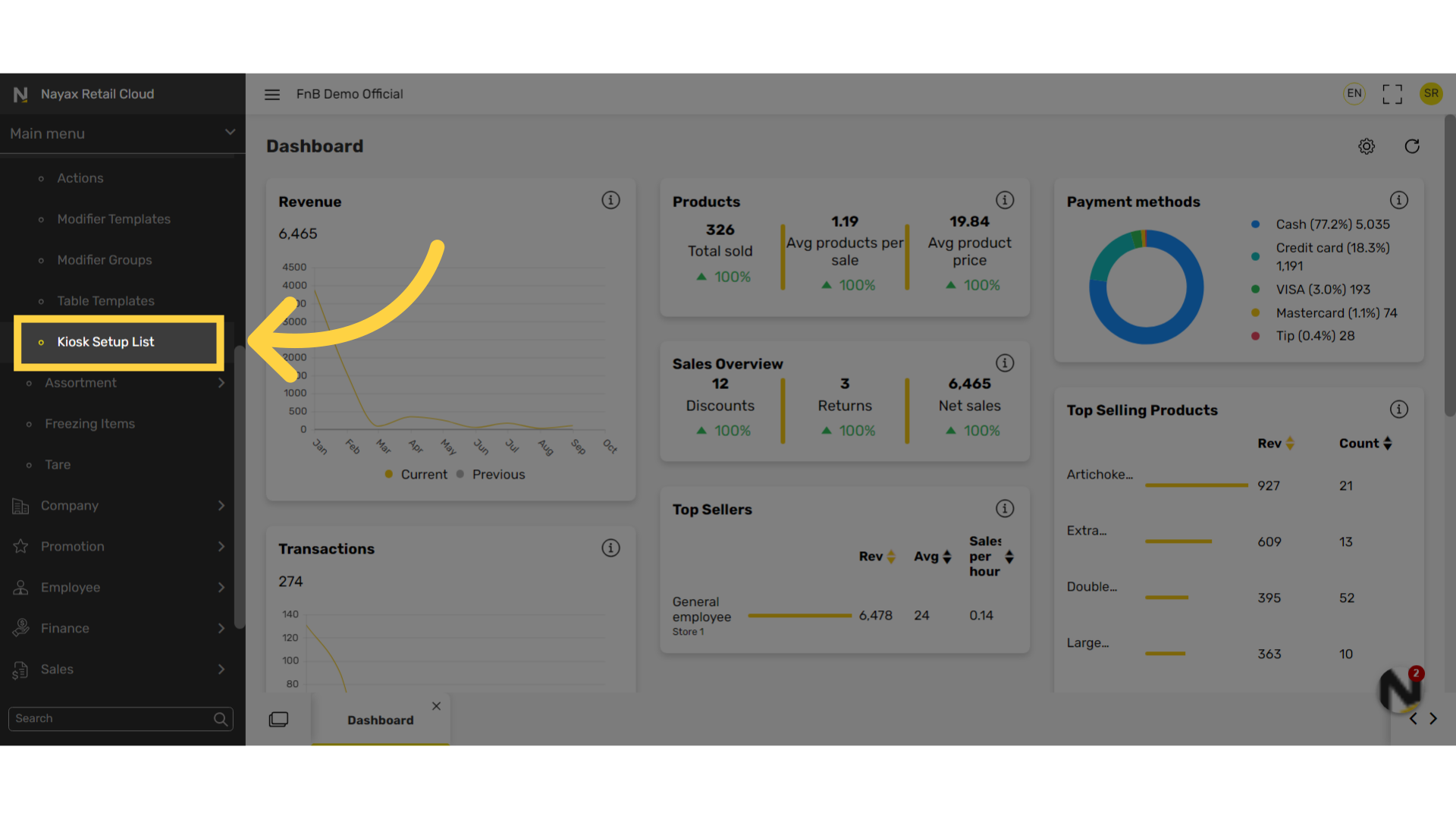

Scroll down the sub menu and click on Kiosk Setup List tab.

Image Attached

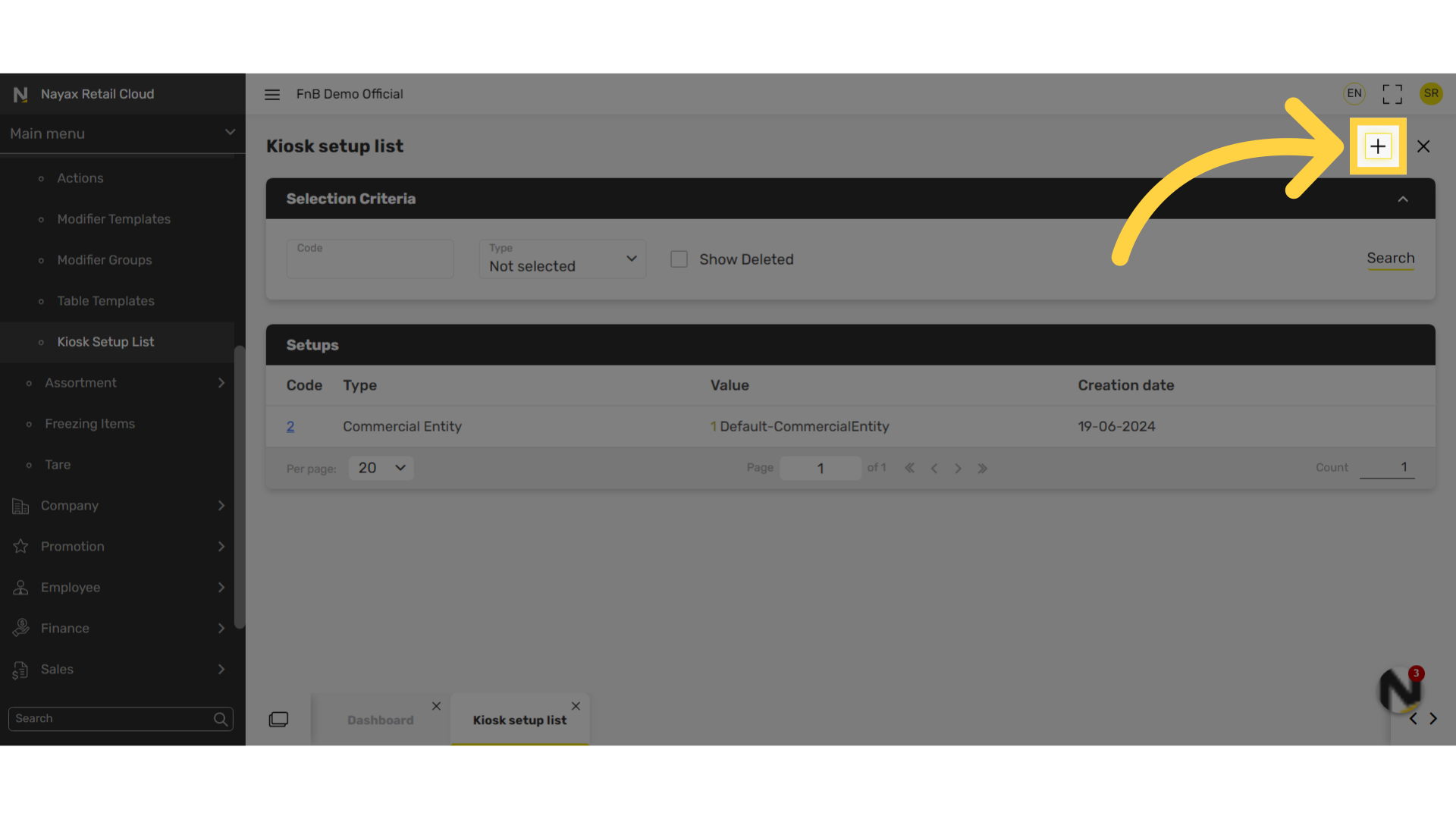

Click the plus icon at the top right of the screen.

Image Attached

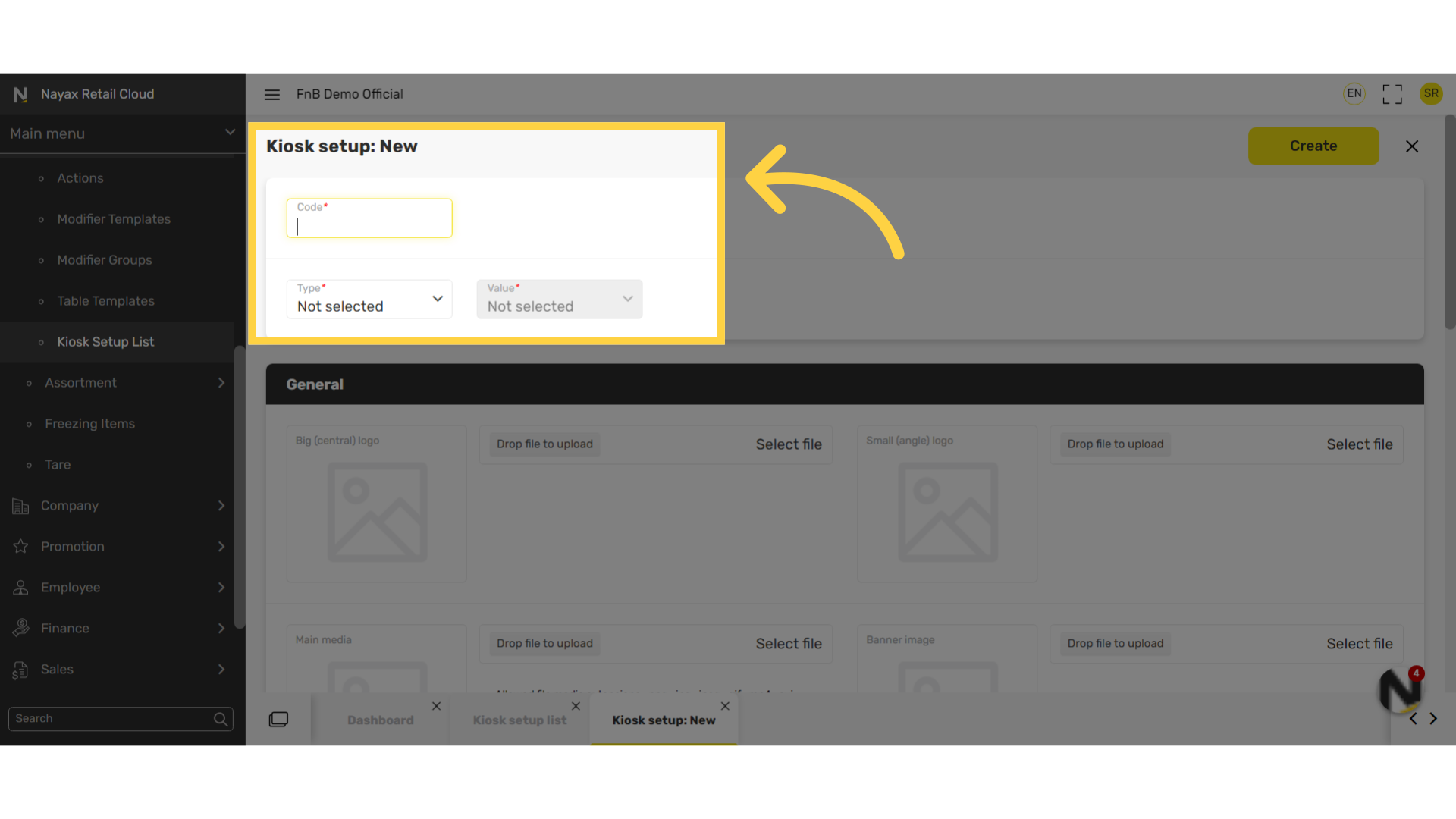

Type a code for this kiosk and in the Type tab, from the drop down menu select the location this kiosk belongs to.

According to the type, in the Value tab, select the a more specific location.

Image Attached

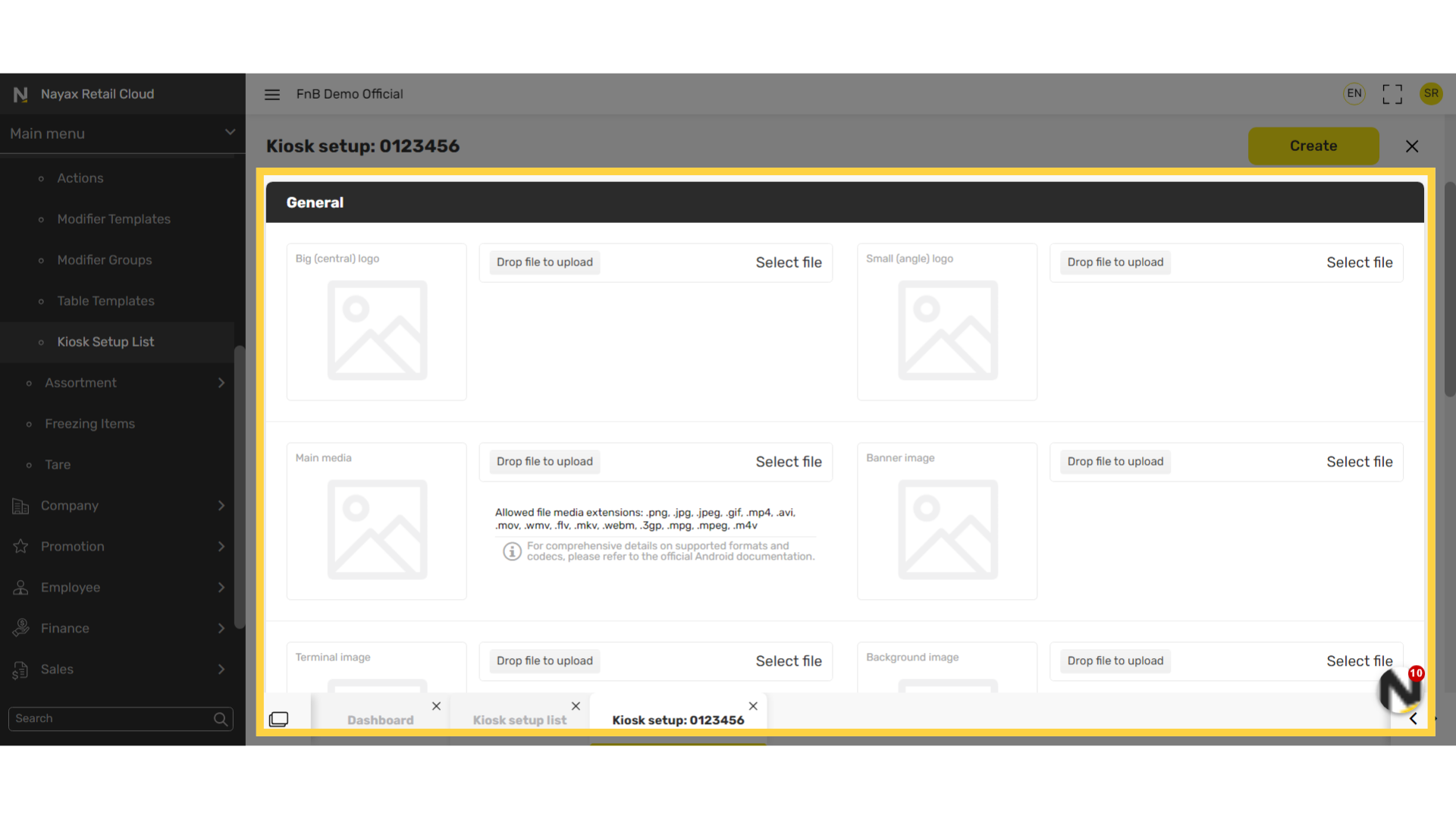

There are six file uploads to customize your kiosk

Image	Description	Max file size (mb)	Image size (pixels)	Image types supported
Big (central) logo	The logo image that will show at the top center of the kiosk.	Under 1MB	W282 H73	Jpg / png
Main Media	The screensaver media that will show when the device is not in use.	Under 5MB	W1080 H1920	Jpg/png/ mp4/mov
Small (angle) logo	The logo image that will show on the side of the kiosk.	Under 1MB	W122 H73	Jpg / png
Banner image	While scrolling the menu, this image will show at the top of the screen.	Under 1MB	W1080 H332	Jpg / png
Background image	After the initial screen saver page, this image will show in the background of the menu.	Under 1MB	W1080 H1920	Jpg / png

Image Attached

After uploading media, scroll down and fill in the additional features like:

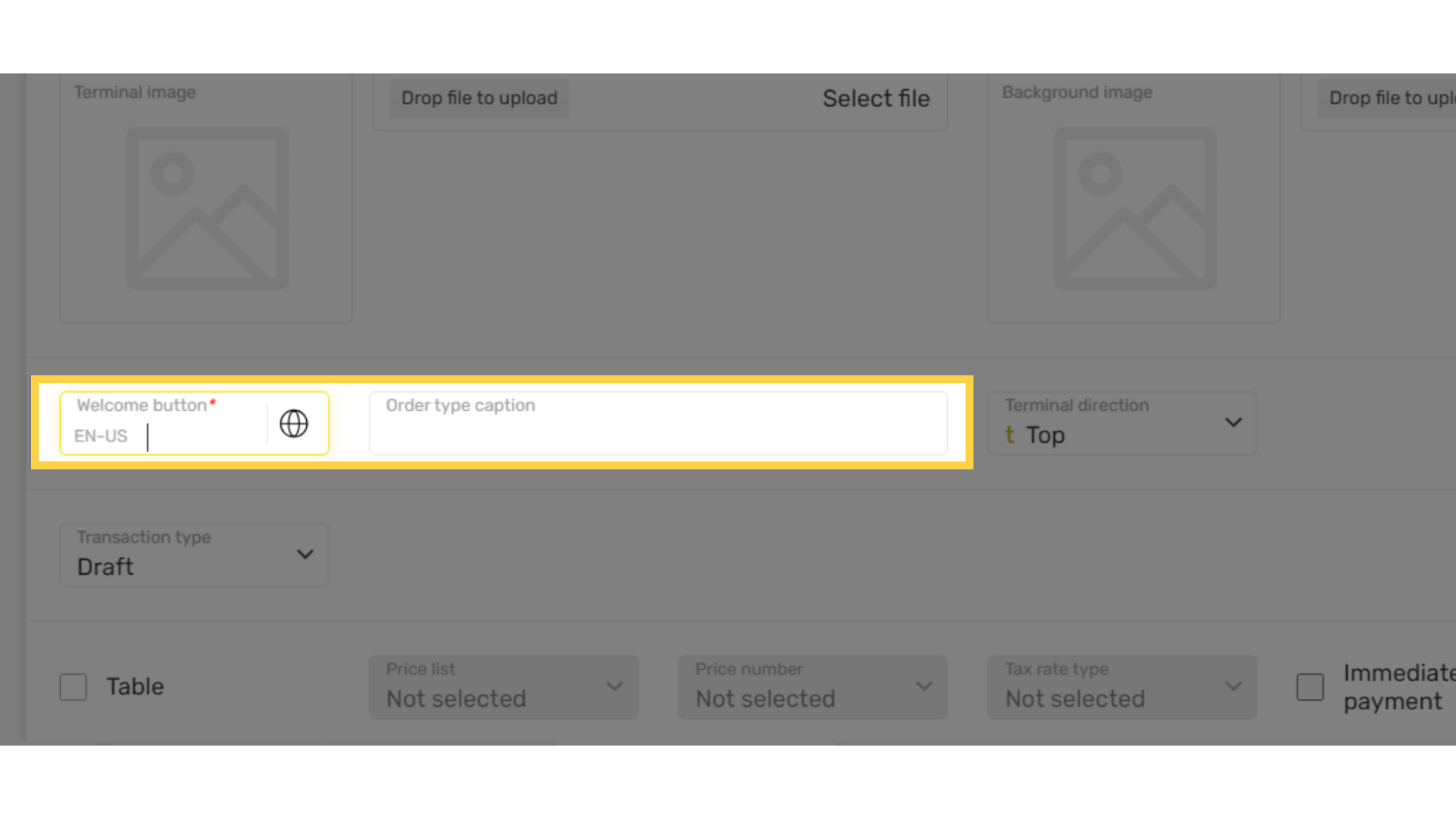

Welcome Button – When a customer approaches the Kiosk, this button will be displayed on the screen. EX. Click to order.

Image Attached

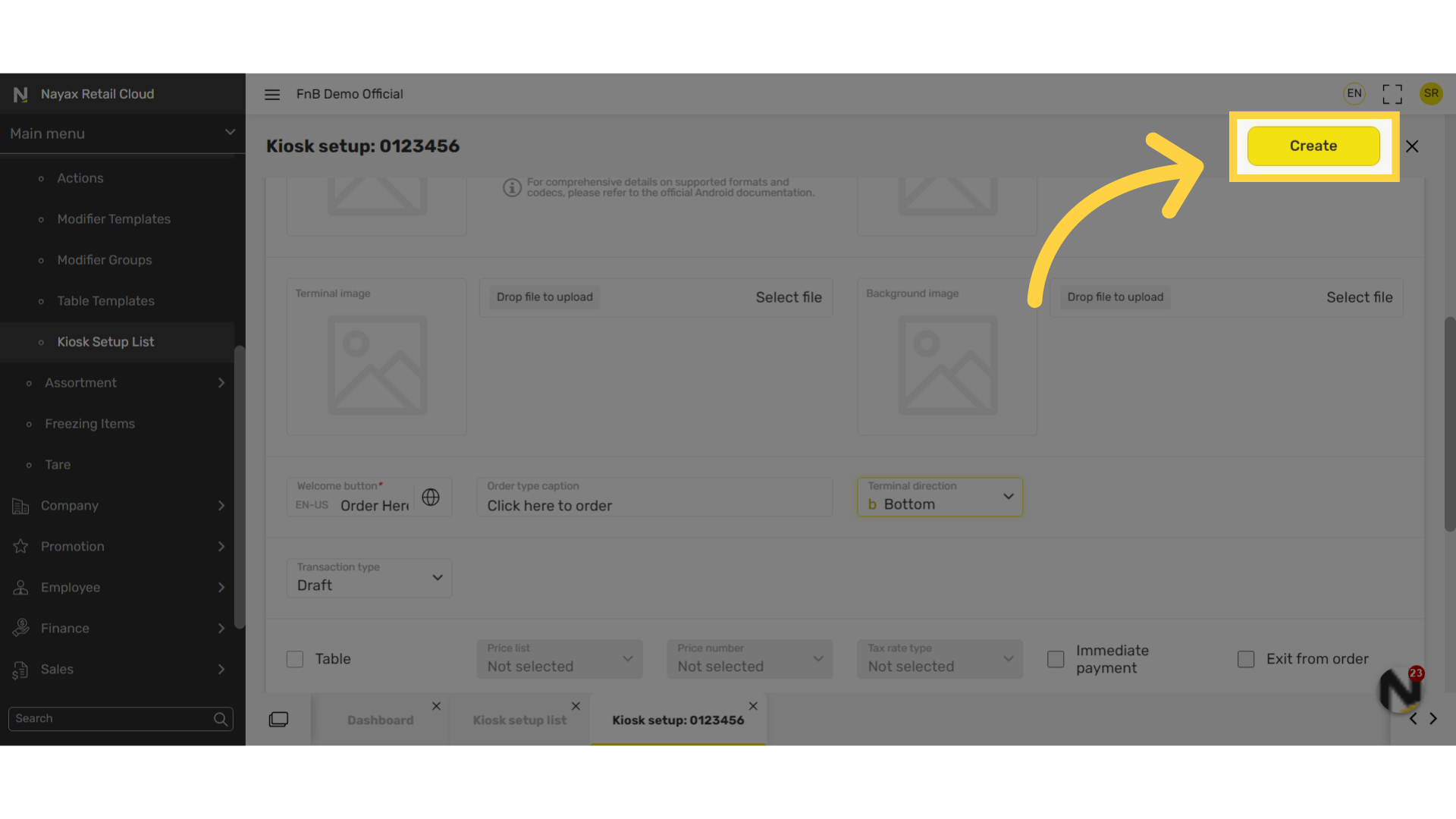

Click create button to save your progress.

We hope this guide was able to walk you through the process, we ask you to please help us help you by leaving feedback!

Thanks for watching!
