This guide covers configuring MDB vending machines for "Always Idle" (Selection First) operation. This mode ensures the user selects their item before payment authorization, streamlining transactions and preventing overcharges.
Video Guide
00:00: This guide provides a walkthrough for configuring
00:02: default credit settings for MDB always Idle for VPOS Media
00:06: in Nayax Core.
00:08: On the dashboard of your Nayax Core platform, click on the Operations tab, then
00:12: click on Machines from the drop-down menu.
00:15: To locate your machine, type in your Operator name and any other fields.
00:19: Then click the search button.
00:22: Locate and click on the machine from the hierarchy.
00:25: The main general section will open and scroll to the Card Reader as highlighted
00:29: in RED on the visual, and click to open.
00:32: Set the Card Reader MDB level to 3, the Decimal place to 2, and
00:36: the transaction start method to 'Product' from the drop-down menu. Then, click
00:41: on the checkbox, as highlighted in red, on the visual.
00:44: The attributes displayed made, differ from those shown on your machine page due to variations
00:48: in device configurations and settings.
00:51: If any attributes are missing from your machine, please refer to the
00:55: guide on how to add attributes to a machine in Nyx.
00:59: Click on the tool tip icons for an explanation and options of the field.
01:04: Return to the main general section, and scroll and click to open the MDB
01:08: tab.
01:09: Set the MDB level 3 optional features to enable 'Always Idle State',
01:13: then click the checkbox to enable it.
01:16: Return to the main general section, scroll, and click to open the Payment tab.
01:21: Set the Default Credit field (Which must be higher than the most expensive product in the machine),
01:25: then click on the checkbox highlighted in red on the visual.
01:30: Click Save to apply and store all the changes made to the card reader settings.
01:35: A pop-up will be displayed, confirming that the changes were completed successfully.
01:40: Click the Save button to save your progress as highlighted in BLUE on the visual.
01:44: Then, click on the Actions button and select Update Queue, as
01:48: highlighted in RED on the visual. That's now set!

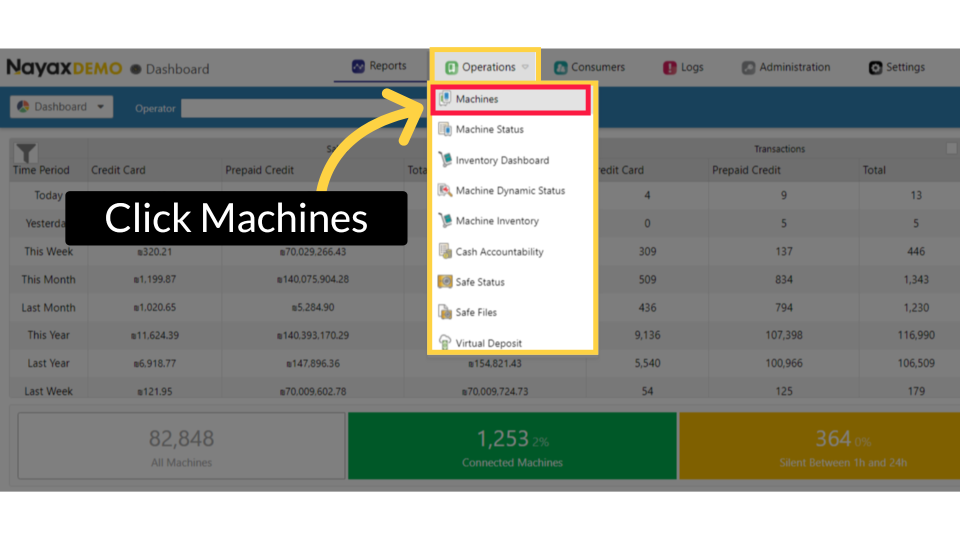

Click Machines
Image AttachedOn the dashboard of your Nayax Core platform, click on the Operations tab, then click on Machines from the drop-down menu.
Fill in Operator Details
Image AttachedTo locate your machine, type in your Operator name and any other fields. Then click the search button.
Locate Machine in Hierarchy
Image AttachedLocate and click on the machine from the hierarchy.
Click Card Readers
Image AttachedThe main general section will open and scroll to the Card Reader as highlighted and click to open.
Set Card Reader Attributes
Image AttachedSet the Card Reader MDB level to 3, the Decimal place to 2, and the transaction start method to 'Product' from the drop-down menu. Then, click on the checkbox, as highlighted in RED , on the visual.
Missing Attributes?
Image AttachedThe attributes displayed may differ from those shown on your machine page due to variations in device configurations and settings.
If any attributes are missing from your machine, please refer to the guide on How to Add Attributes to Machines.
Tool Tip!
Image AttachedClick on the tool tip icons for an explanation and options of the field.
Select MDB Option
Image AttachedReturn to the main general section, and scroll and click to open the MDB tab.
Open Cashless MDB Settings
Image AttachedSet the MDB level 3 optional features to enable 'Always Idle State', then click the checkbox to enable it.
Click Payment Tab
Image AttachedReturn to the main general section, scroll, and click to open the Payment tab.
Enable Default Credit
Image AttachedSet the Default Credit field (Which must be higher than the most expensive product in the machine), then click on the checkbox highlighted in red on the visual.
Click Save
Image AttachedClick Save to apply and store all the changes made to the card reader settings.

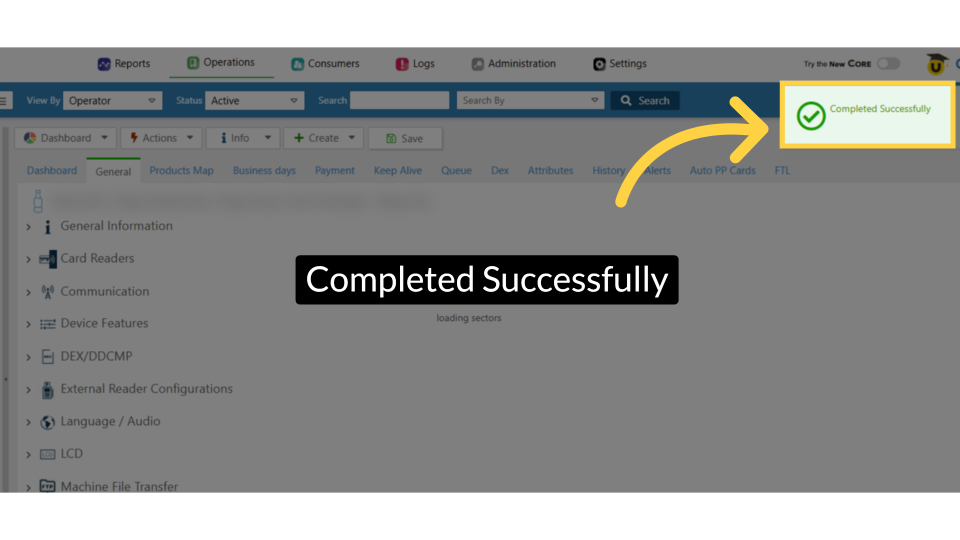

Completed Successfully
Image AttachedA pop-up will be displayed, confirming that the changes were completed successfully.
