How to Set Up "Start with Card" MDB Level 1 Pre-Selection | VPOS Media

00:00: This guide provides a walkthrough for configuring

00:02: default credit settings for MDB Level 1, starting with Card Pre-selection

00:06: for VPOS Media in Nayax Core.

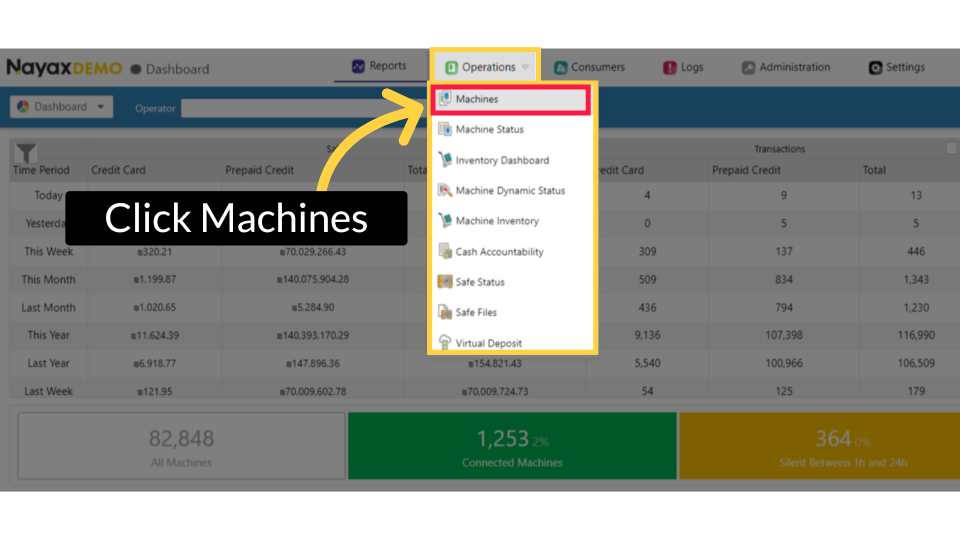

00:10: On the dashboard of your Nayax Core platform, click on the Operations tab, then

00:14: click on Machines from the drop-down menu.

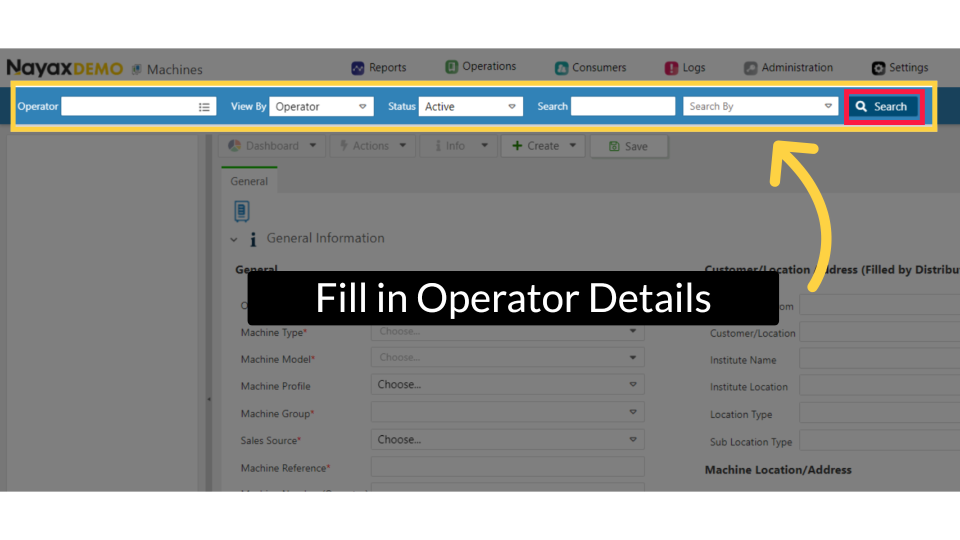

00:17: To locate your machine, type in your Operator name and any other fields.

00:21: Then click the search button.

00:23: Locate and click on the machine from the hierarchy.

00:26: The main general section will open and scroll to the Card Reader, as highlighted,

00:30: and click to open it.

00:33: Set the Card Reader MDB level to 1, and the transaction start method to 'Mag,

00:37: Contact plus Contactless' from the drop-down menu. Then, click on the checkbox,

00:41: as highlighted

00:43: The attributes displayed made, differ from those shown on your machine page due to variations

00:47: in device configurations and settings.

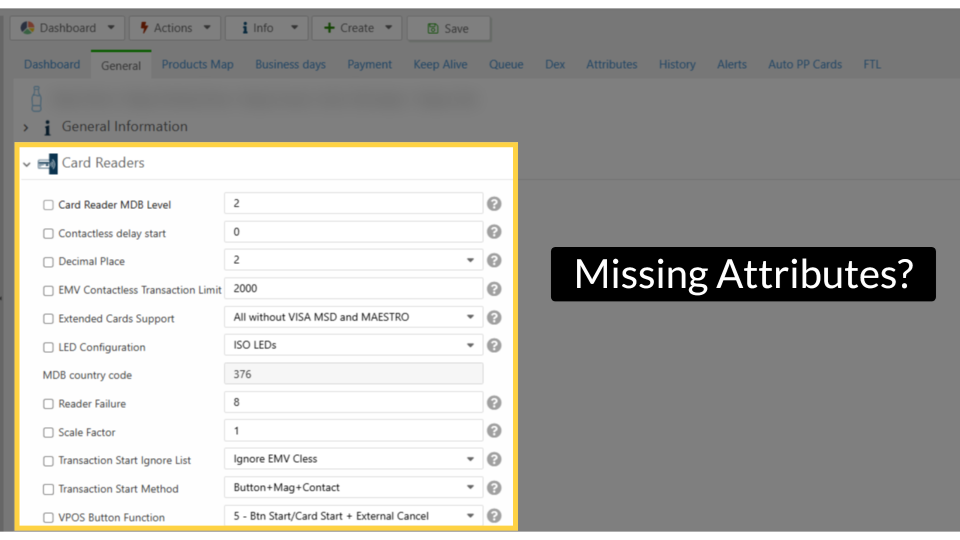

00:49: If any attributes are missing from your machine, please refer to the

00:53: guide on how to add attributes to a machine in Nyx.

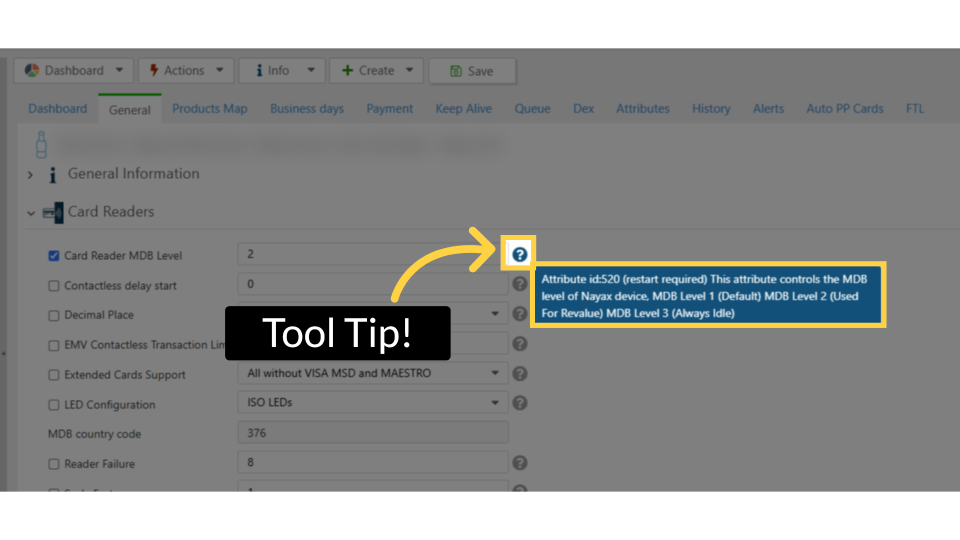

00:58: Click on the tool tip icons for an explanation and options of the field.

01:02: Return to the main general section, and scroll and click to open the MDB

01:06: tab.

01:08: Set, the cashless MDB address. Optional features to enable cashless

01:12: device. Number one, then click the checkbox to enable it.

01:16: Set the cashless MDB address to cashless device.

01:18: Number one, then set the MDB Flags to the pre-selection feature

01:23: from the drop-down menu as highlighted in red on the visual, and click

01:27: the, checkboxes to enable it as highlighted in blue.

01:30: Click Save to apply and store all the changes made to the card reader settings.

01:35: A pop-up will be displayed, confirming that the changes were completed successfully.
