How to Set a Product Map Default Layout | Operations
1
Video Guide
2

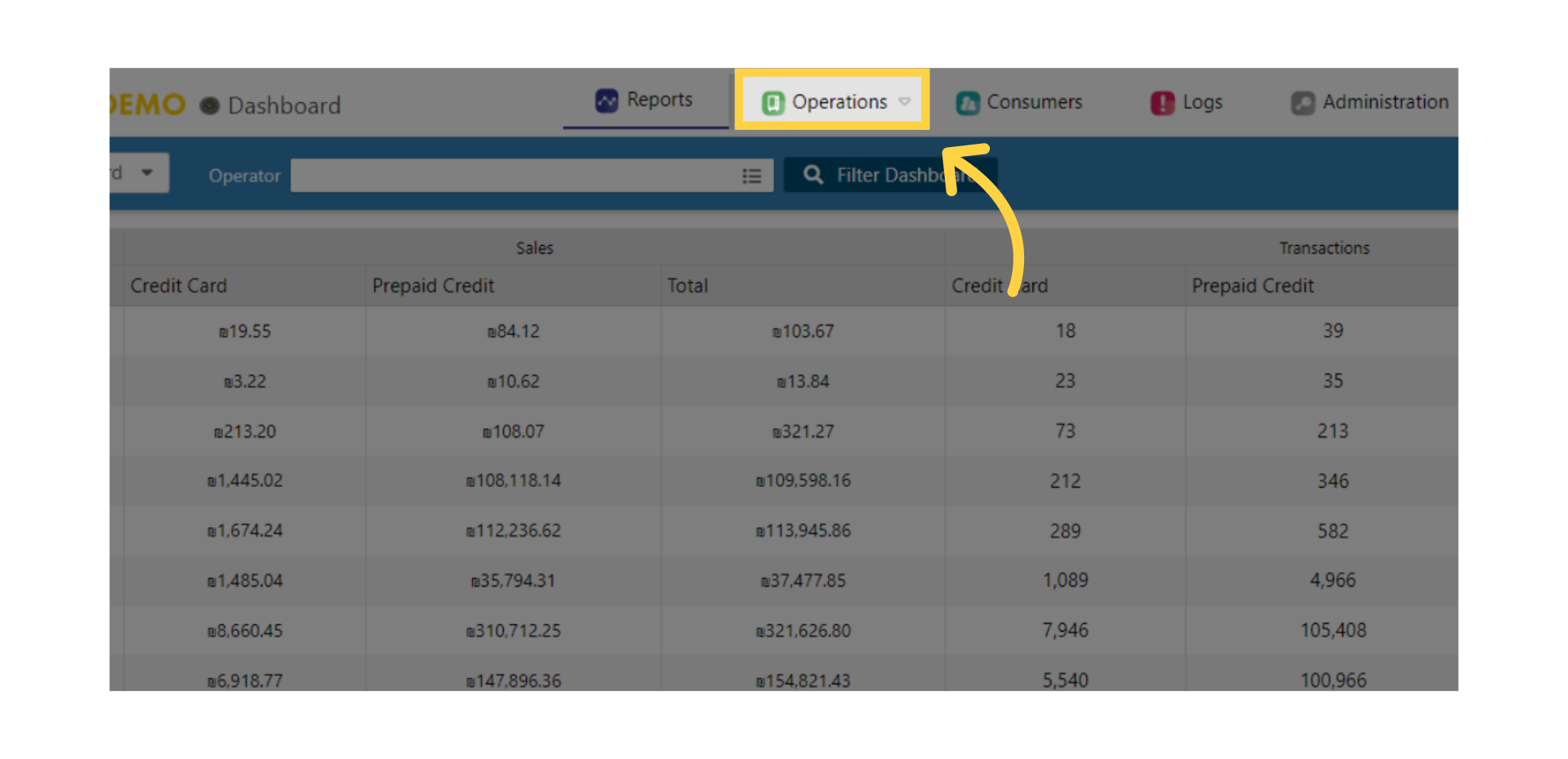

Click Operations
Image Attached
On the Dashboard of your Nayax Core management suite click on the operations tab.
3

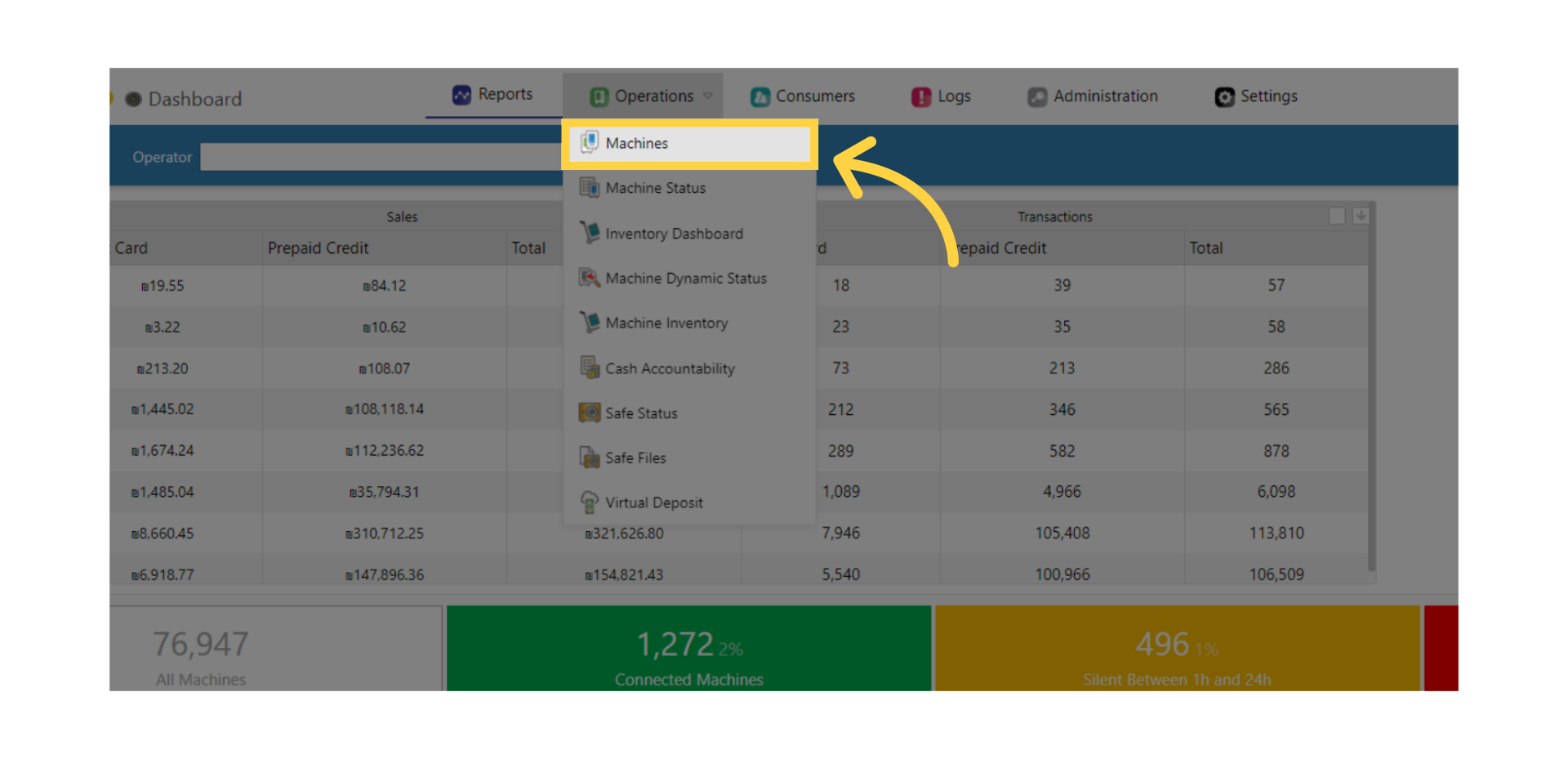

Click on Machines
Image Attached
Click on machines from the drop down menu.
4

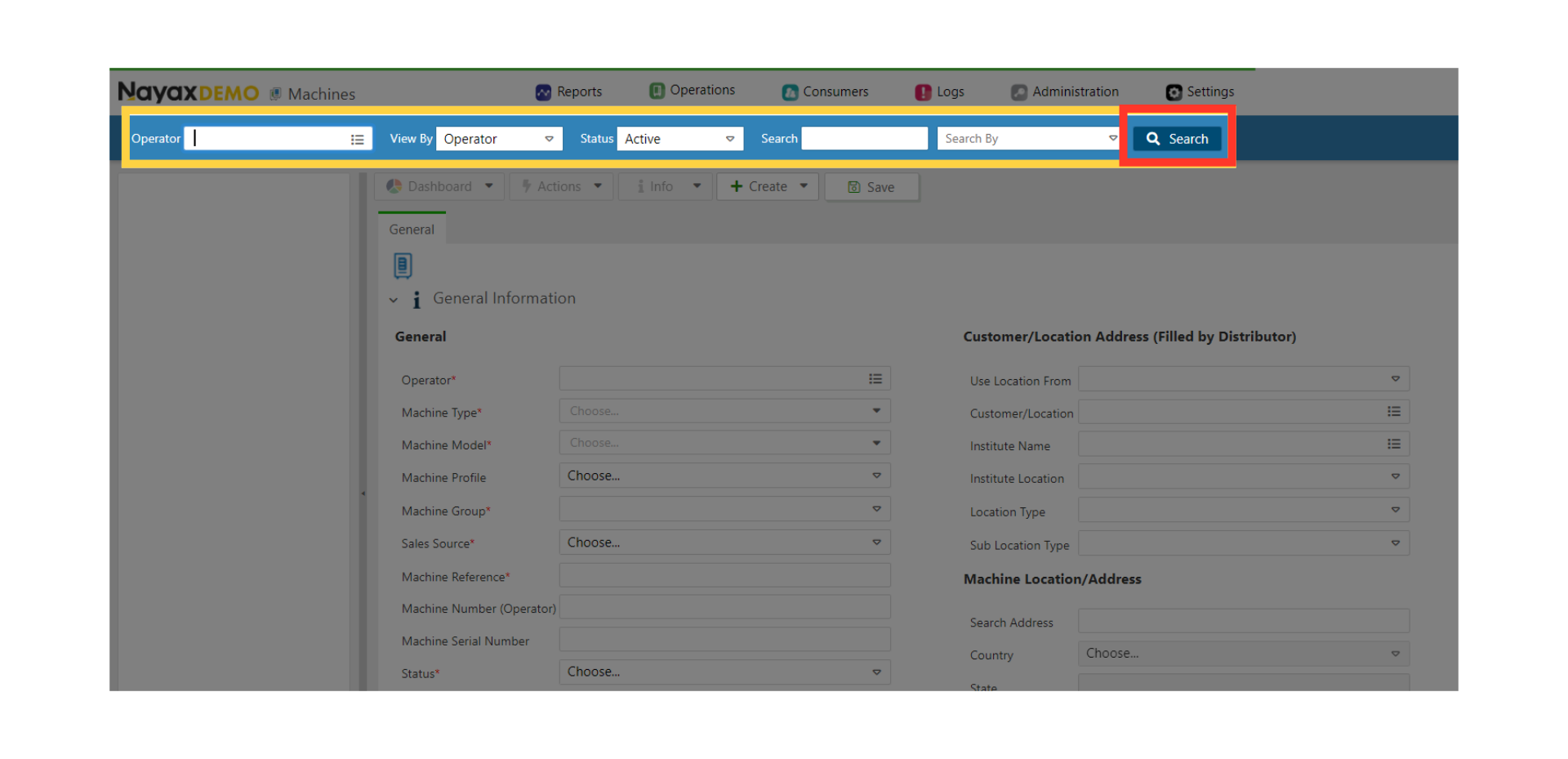

Fill in Operator
Image Attached
Type in your operator name and any other fields to locate your machine and press search as highlighted in RED on the visual.
5

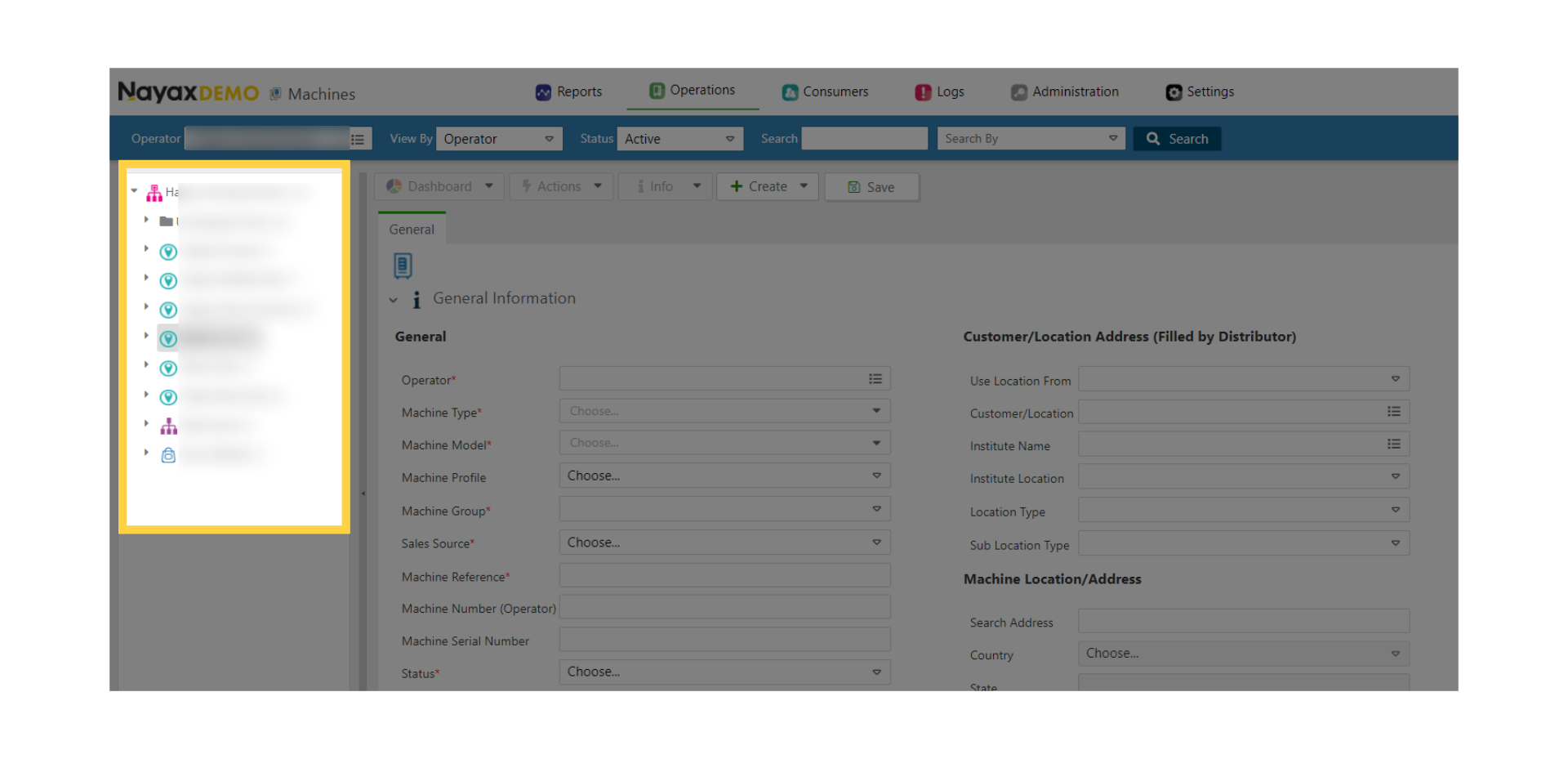

Locate Machine from Hierarchy
Image Attached
Locate and click on the machine from the hierarchy.
6

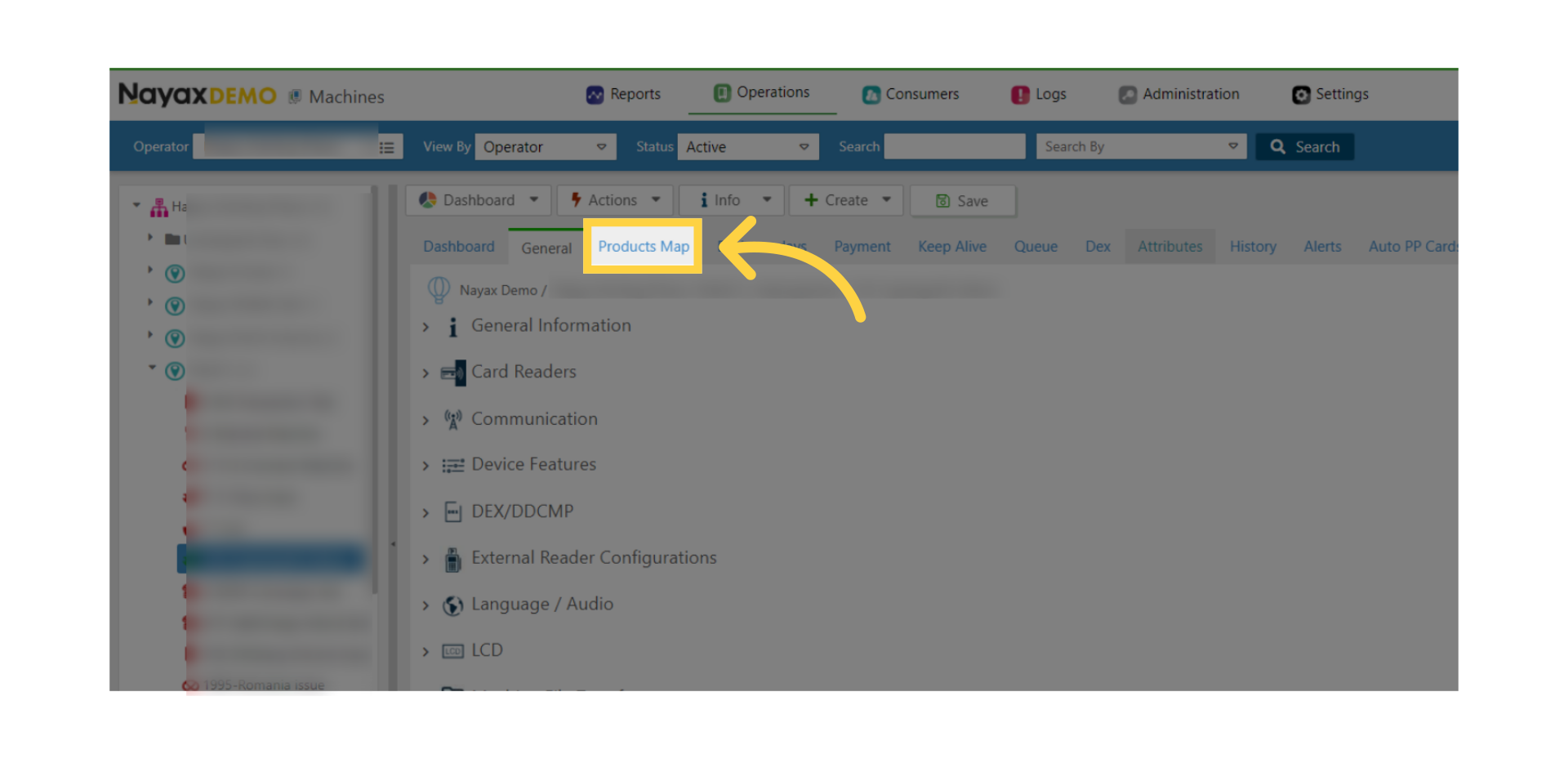

Click on Product Map
Image Attached
From the main screen click on the attributes tab.
7

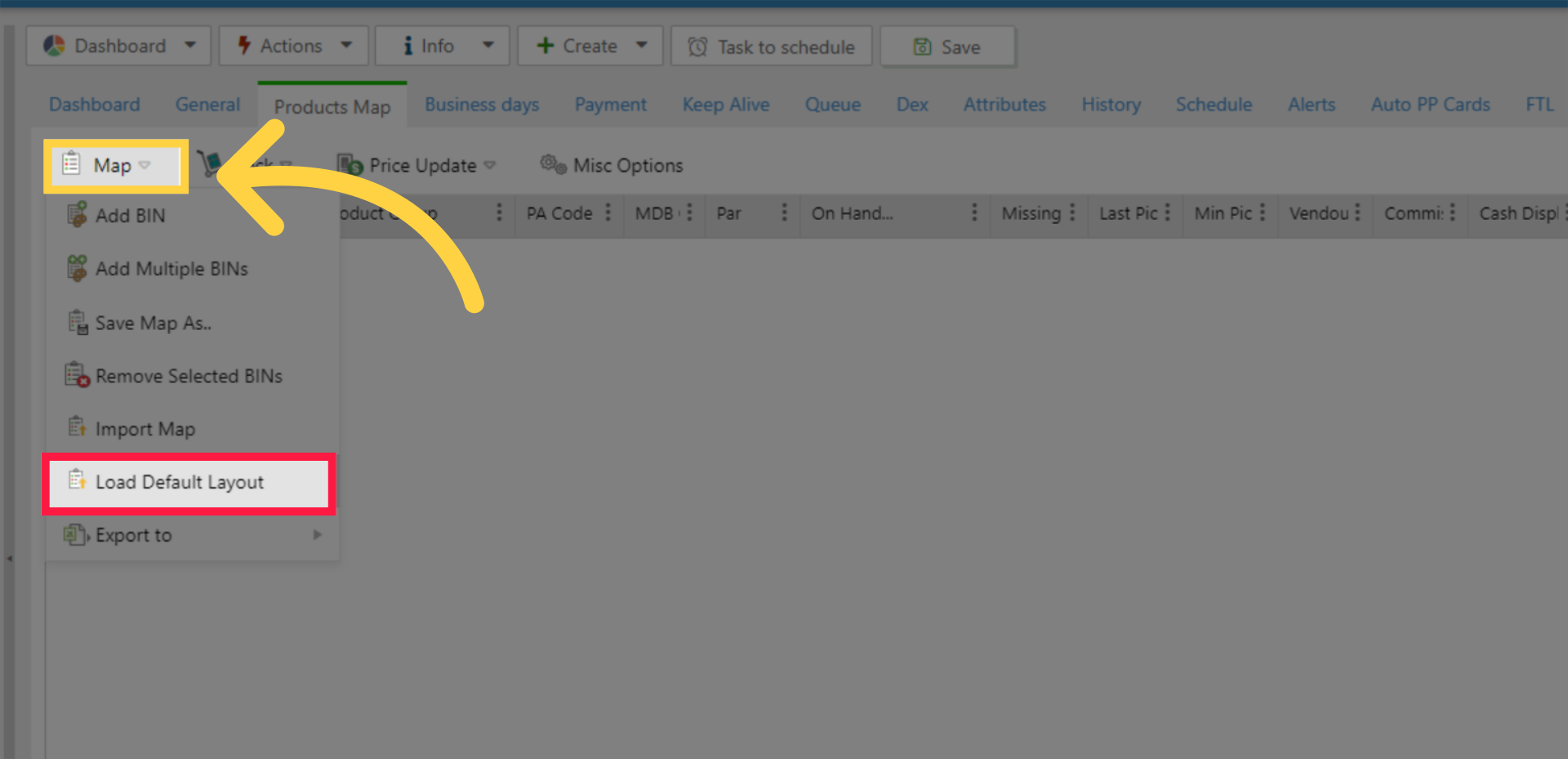

Click on Map
Image Attached
Then click on Map and then Load Default Layout from the drop down menu as highlighted in RED on the visual.
8

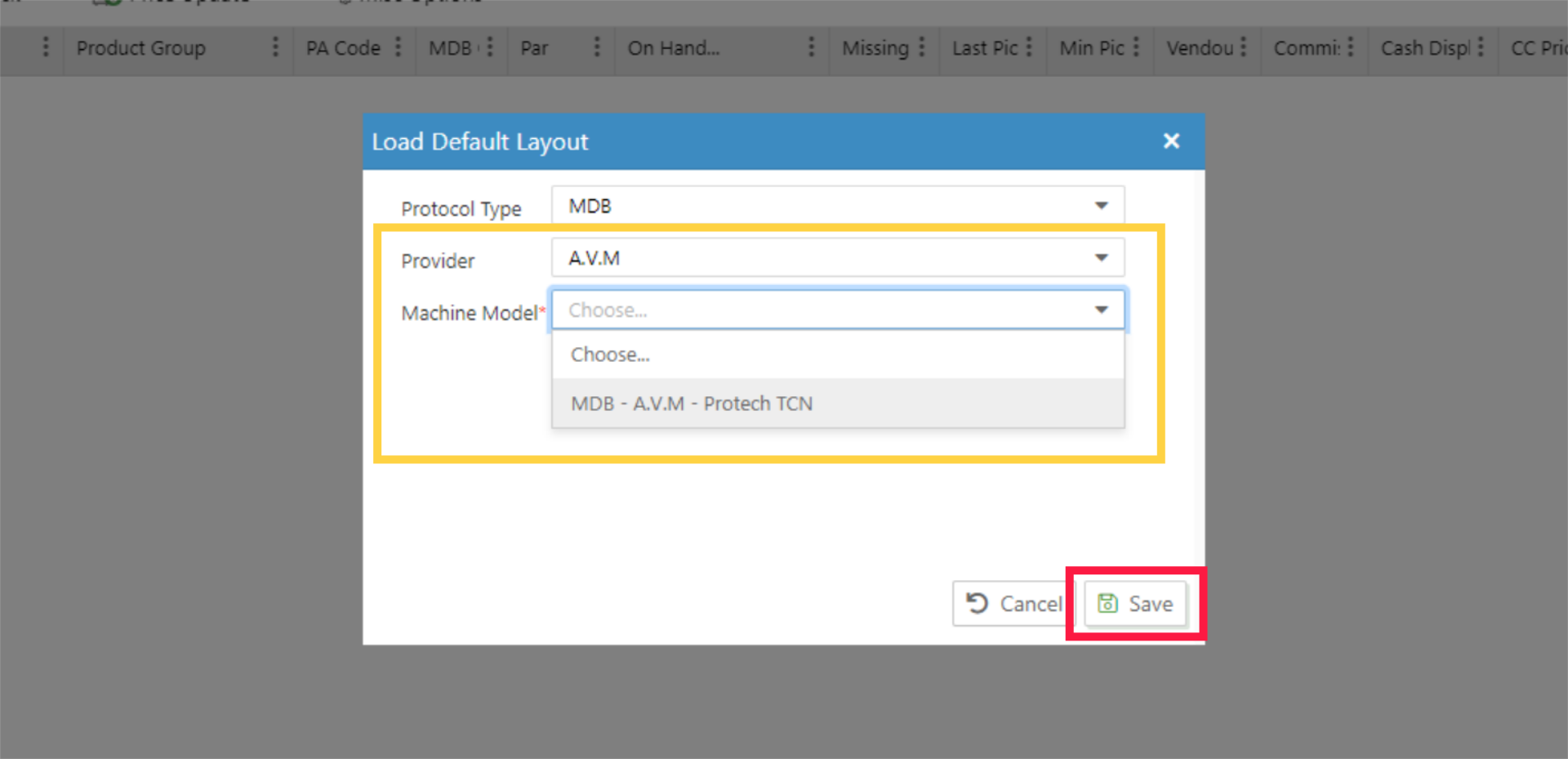

Select Provider and Machine Model
Image Attached
In the pop up window select the Provider and Machine Model from the drop down menu and then click on Save button as highlighted in RED on the visual.
9

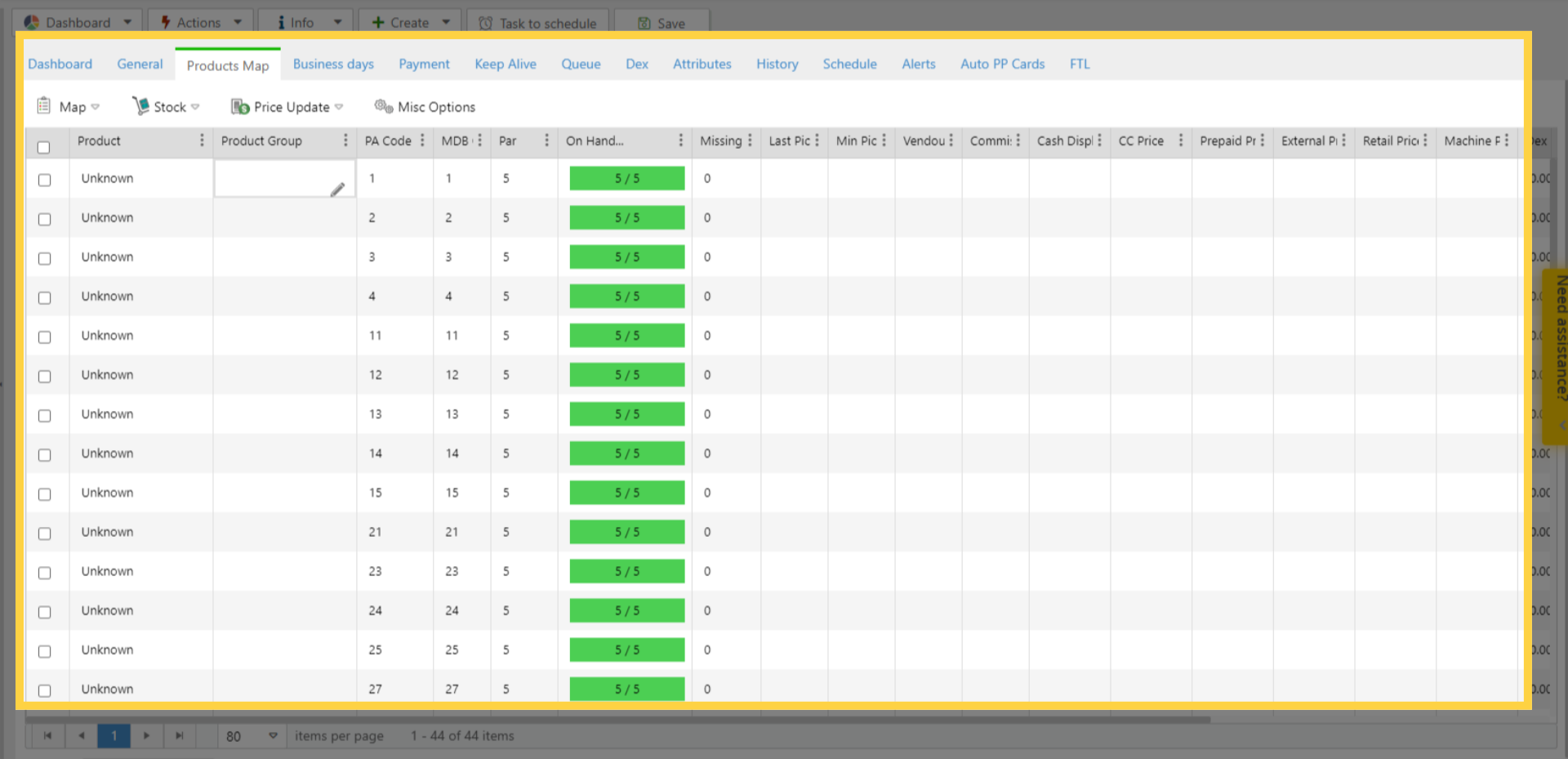

Product Map
Image Attached
Now you've created a product map layout, so all the PA and MDB codes are ready for you.
Now to simply edit the name and price of the products.
10

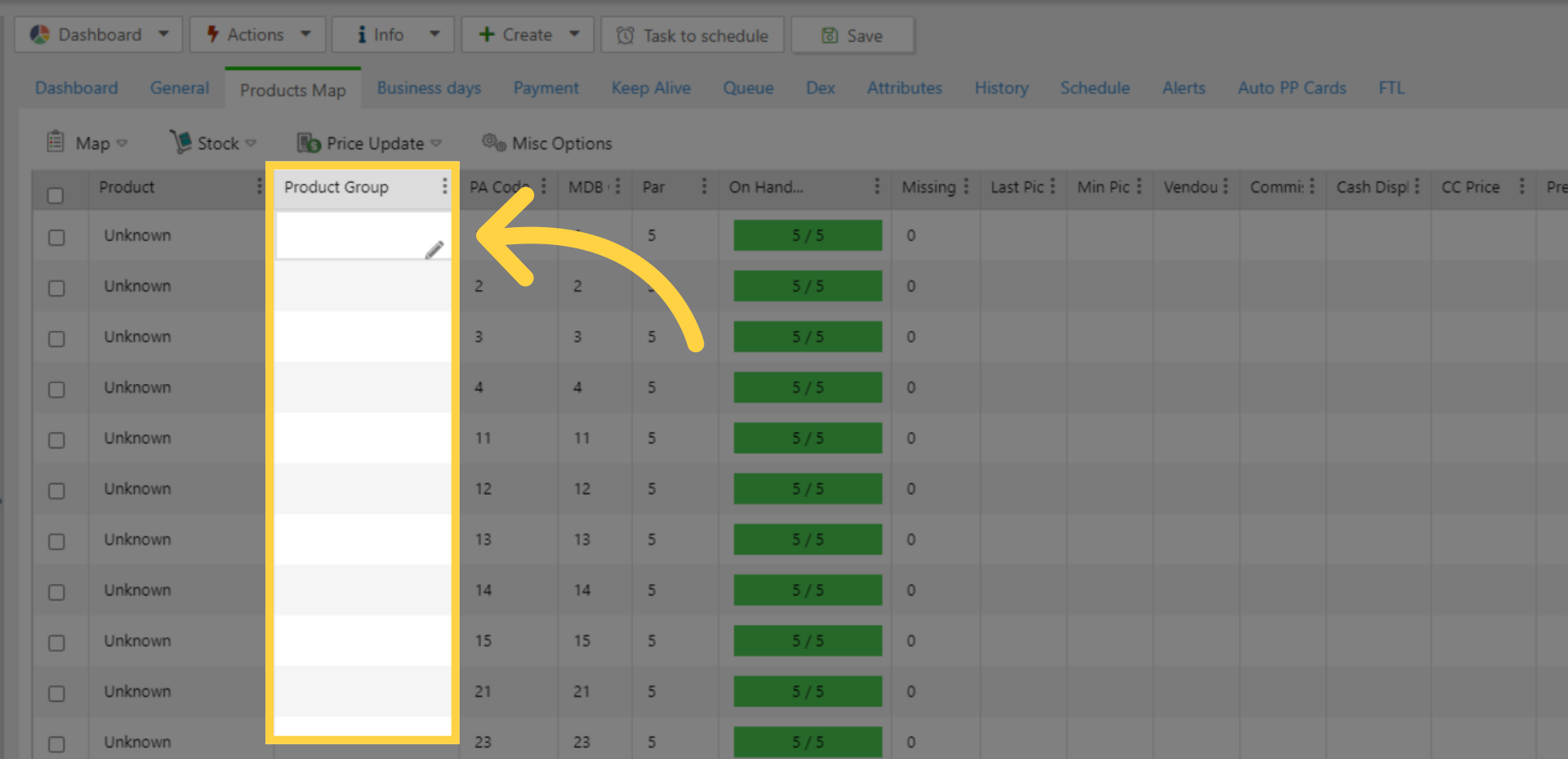

Select a Product Group
Image Attached
Click on and Select a Product Group and name the group.
11

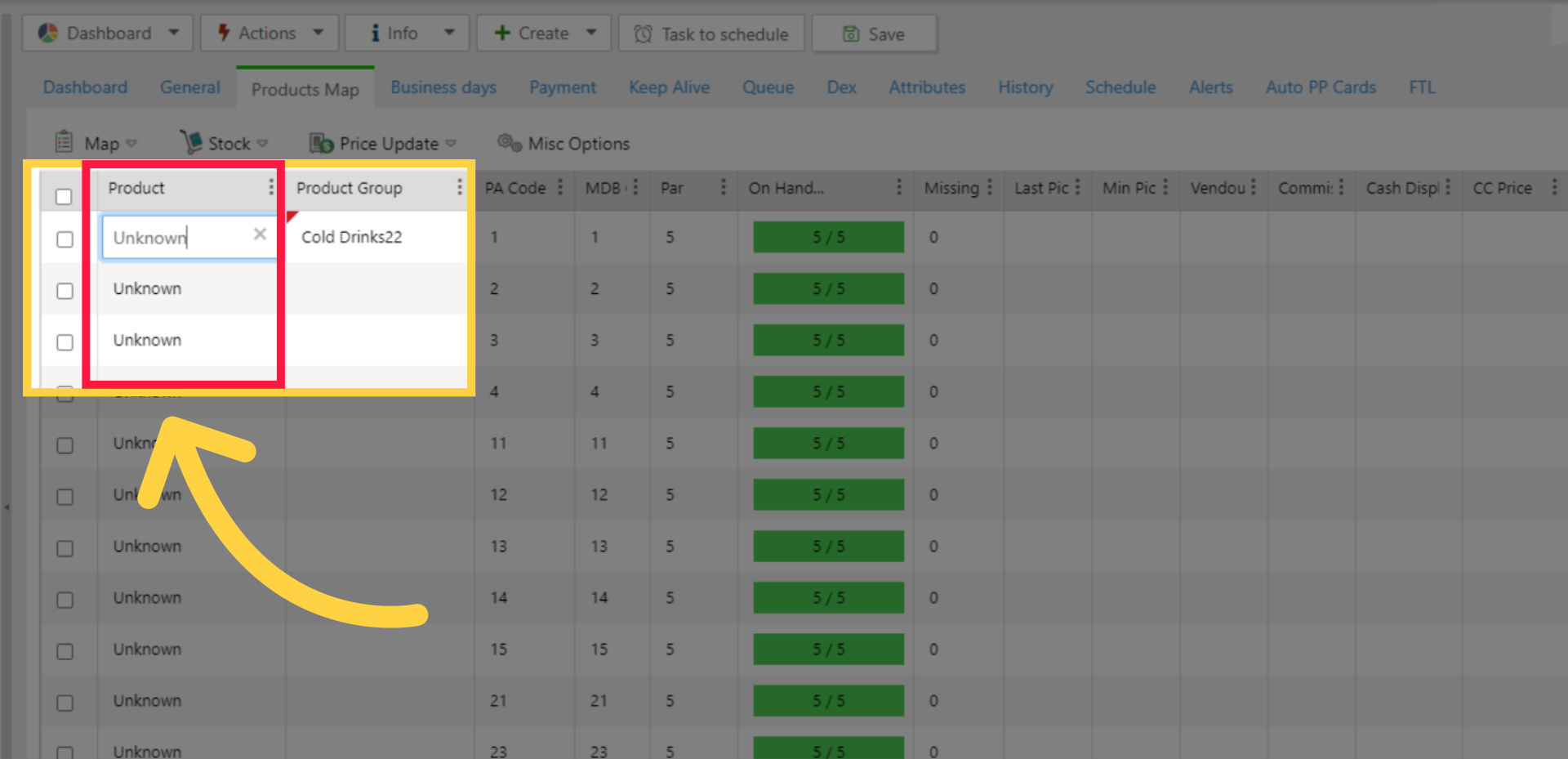

Name Product
Image Attached
Then click open the product menu and name the product.
12

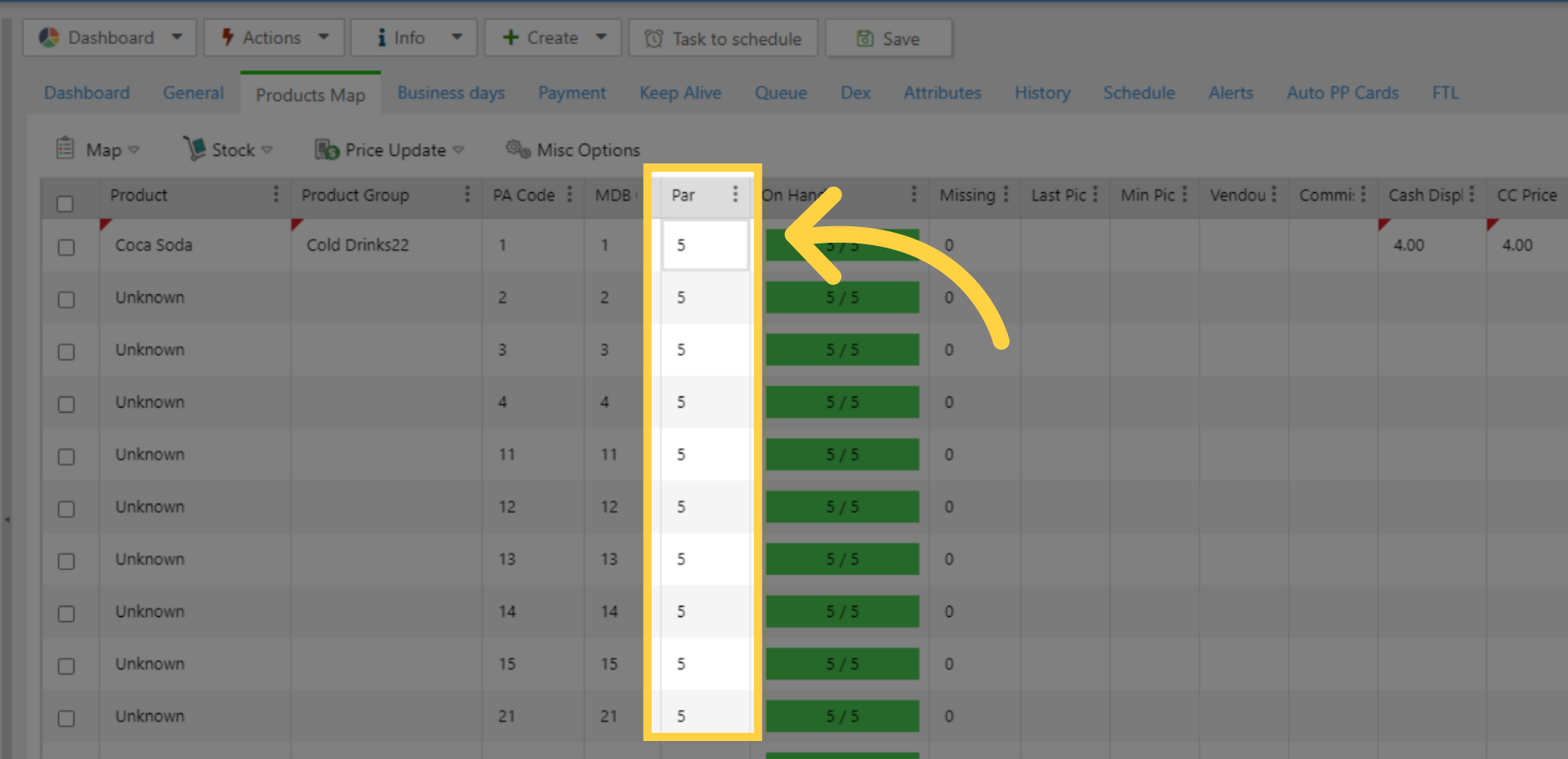

Edit the Par amount
Image Attached
You can edit the Par amount. The Par is the minimum level of a product that needs to be in each vending machine spiral or row at the moment of the service.
13

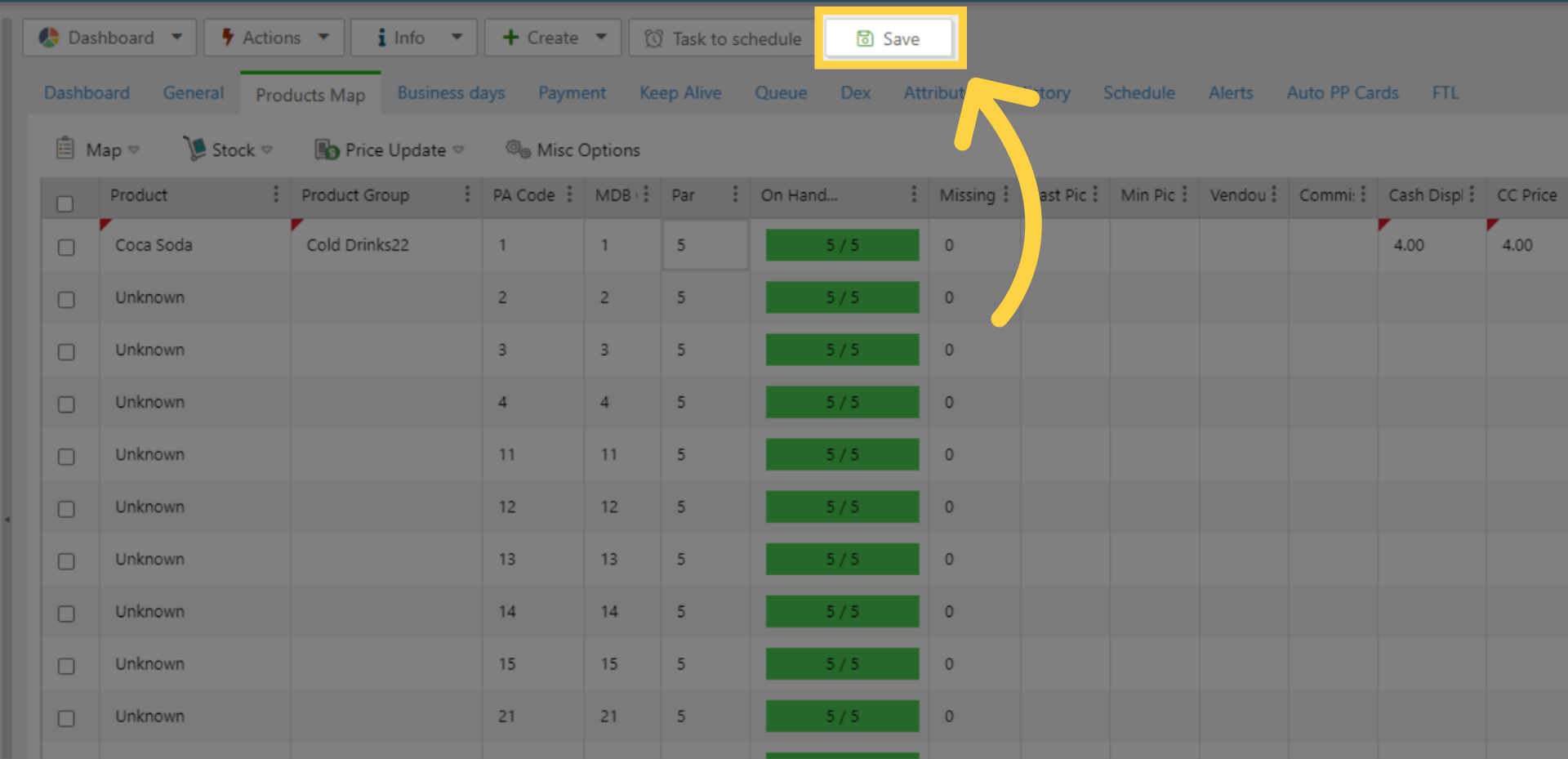

Save Changes!
Image Attached
Click on Save to save the changes made!
Thank you!
