Follow these steps to remove specific features from the Technician menu on a VPOS Media device, helping you customize the interface and restrict access to selected functions.

1

Video Guide

00:00: Follow these steps to remove specific features from the Technician menu on

00:04: a VPOS Media device, helping you customize the interface and

00:08: restrict access to selected functions.

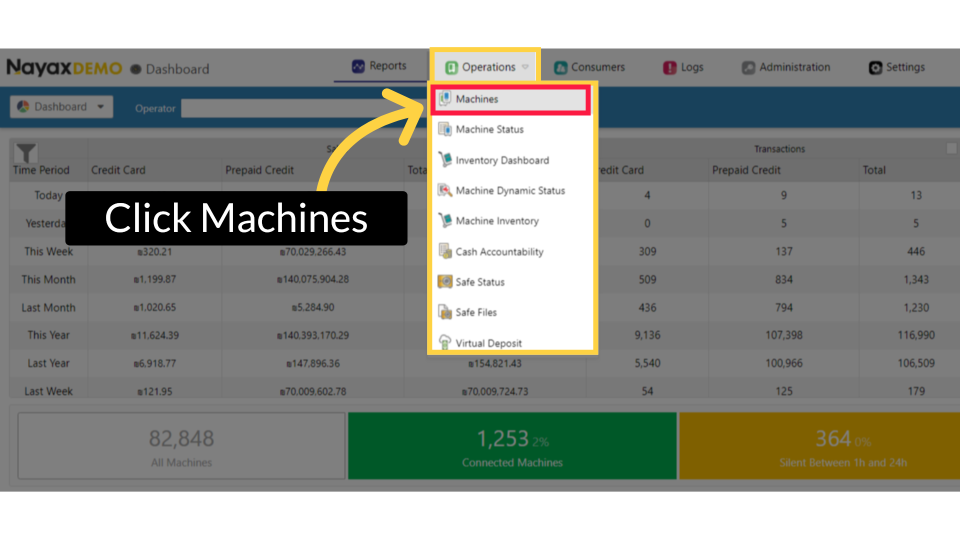

00:11: On the dashboard of your Nayax Core platform, click on the Operations tab, then

00:15: click on Machines from the drop-down menu.

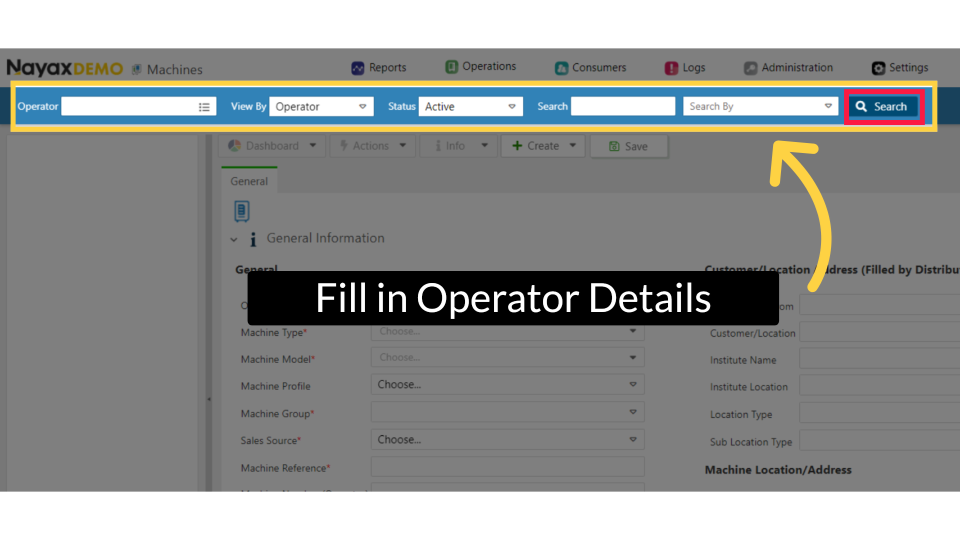

00:18: To locate your machine, type in your Operator name and any other fields.

00:22: Then click the search button.

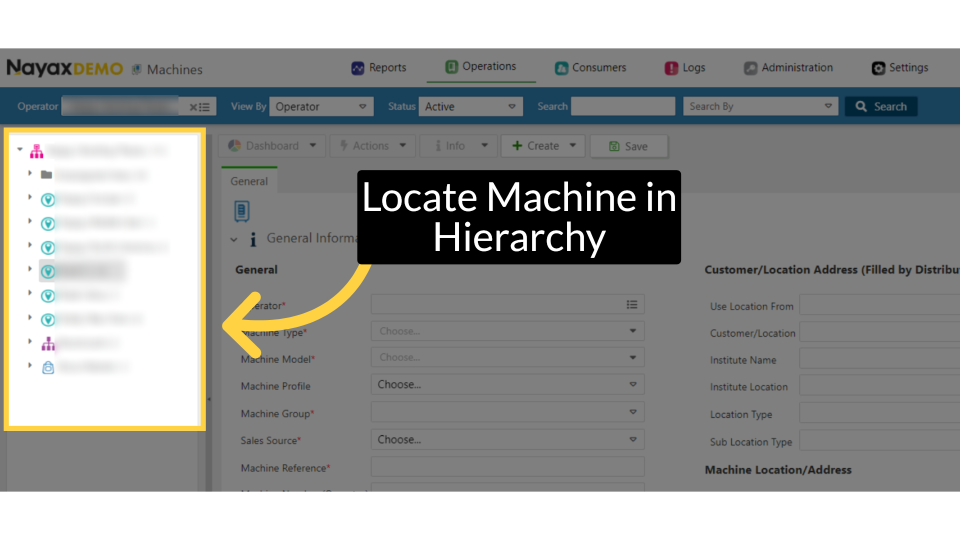

00:24: Locate and click on the machine from the hierarchy.

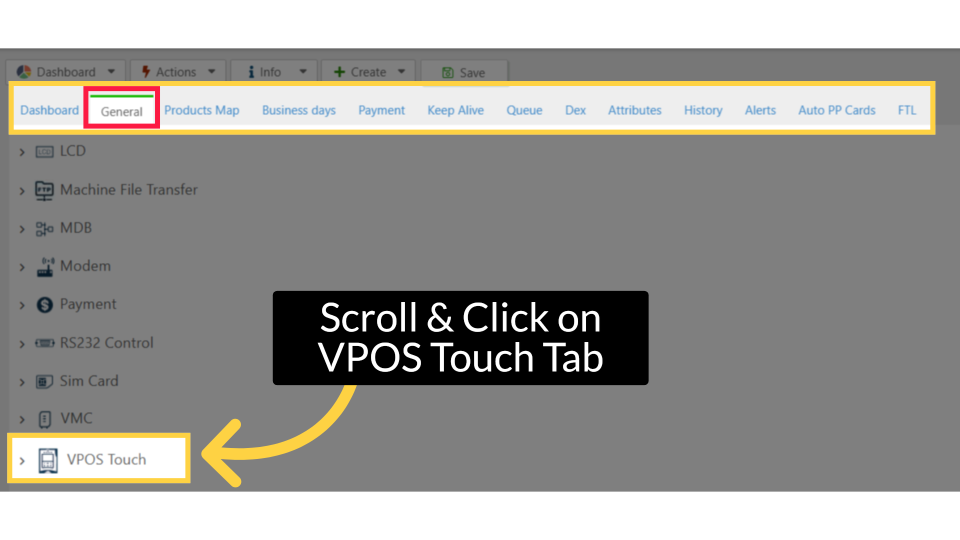

00:27: From the main General Tab, scroll down and click on the VPOS Touch tab

00:32: to open the attribute settings for this machine.

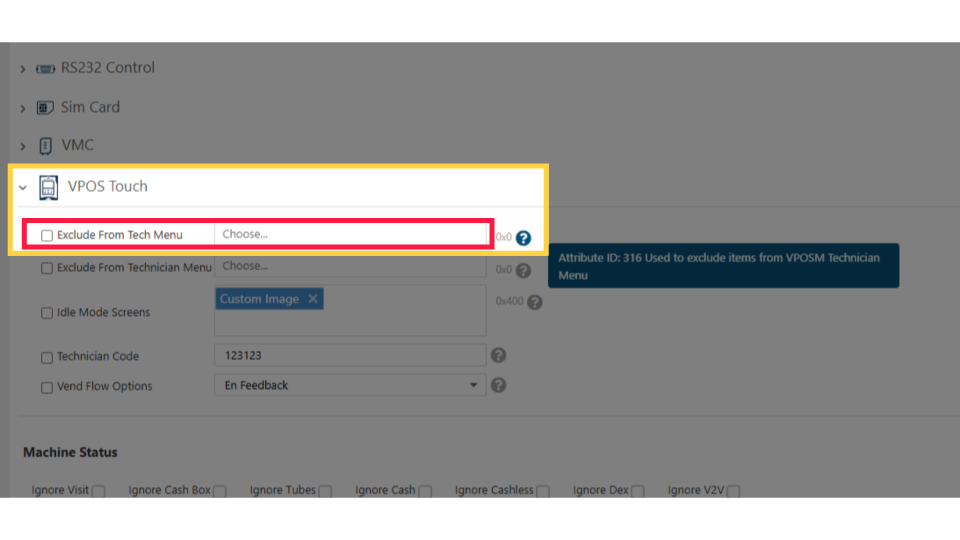

00:35: Locate the 'Exclude From Tech Menu' machine attribute.

00:38: Click on the 'Choose' field as highlighted to view the options to exclude

00:42: from the technician menu. The attribute for this functionality for VPOS

00:46: Media is 316.

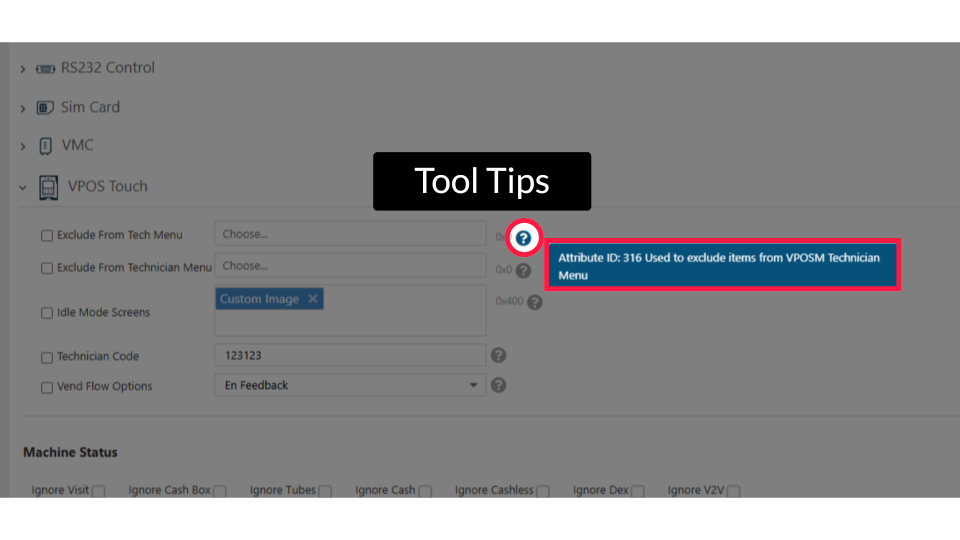

00:49: Tooltips can provide extra context for search Fields, hover over the question

00:53: mark to reveal more as highlighted in red.

00:57: The attributes displayed made, differ from those shown on your machine page due to variations

01:01: in device configurations and settings.

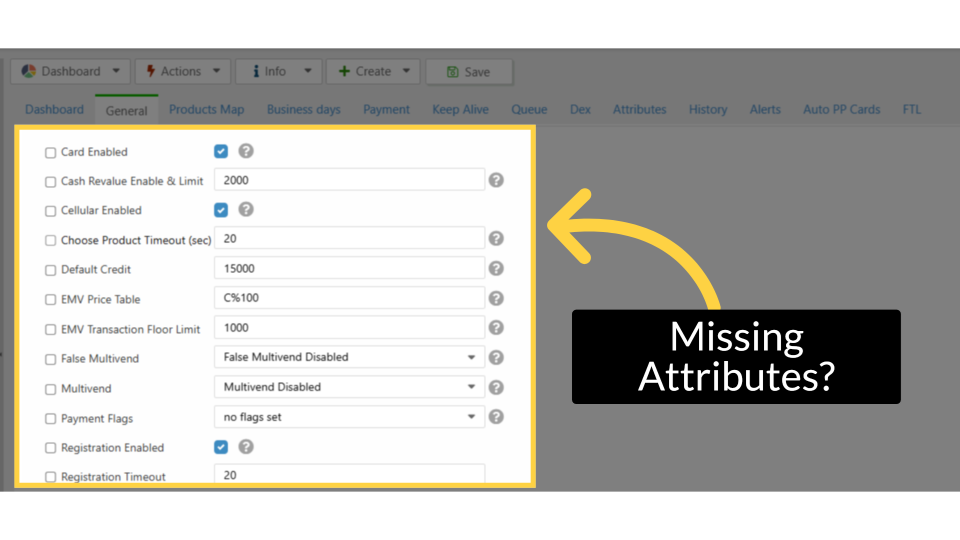

01:03: If any attributes are missing from your machine, please refer to the

01:07: guide on how to add attributes to a machine in Nyx.

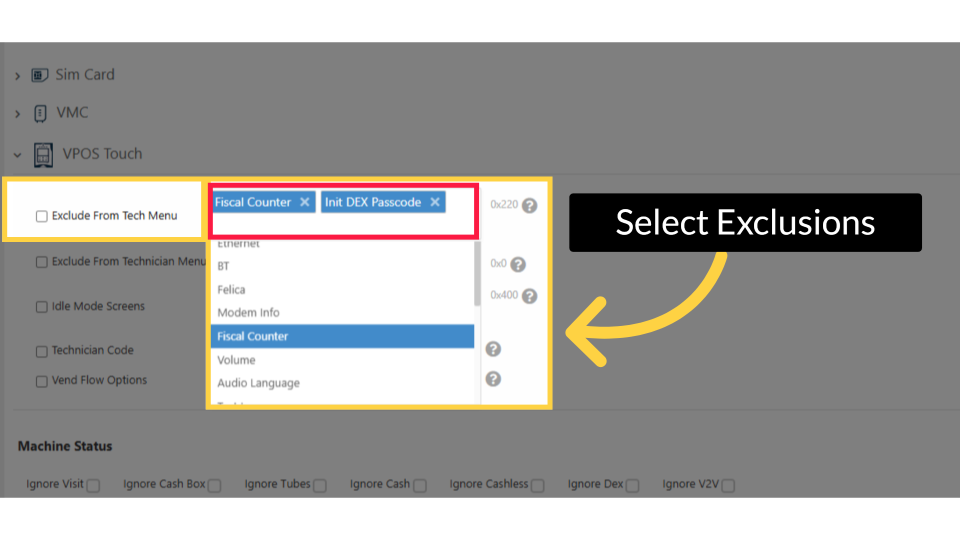

01:11: Click on the tags from the technician menu items that you do not want displayed in

01:15: Technician Mode. As you make your selections from the drop-down menu, your

01:20: exclusions will be added to the top field highlighted in RED.

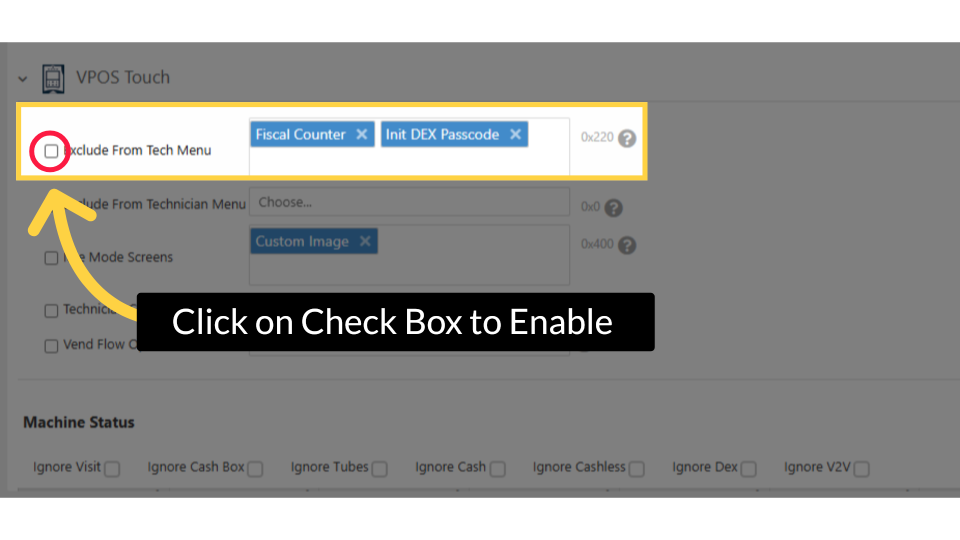

01:23: Click on the Check Box to Enable

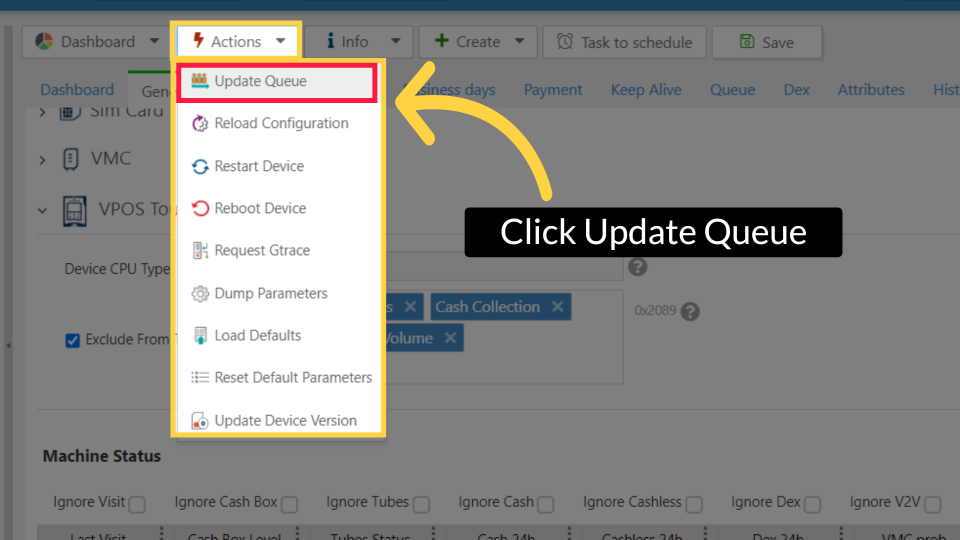

01:26: Click on the Actions button and select "Update Queue," as highlighted in red

01:30: on the visual. Please note that this change may cause your device to restart.

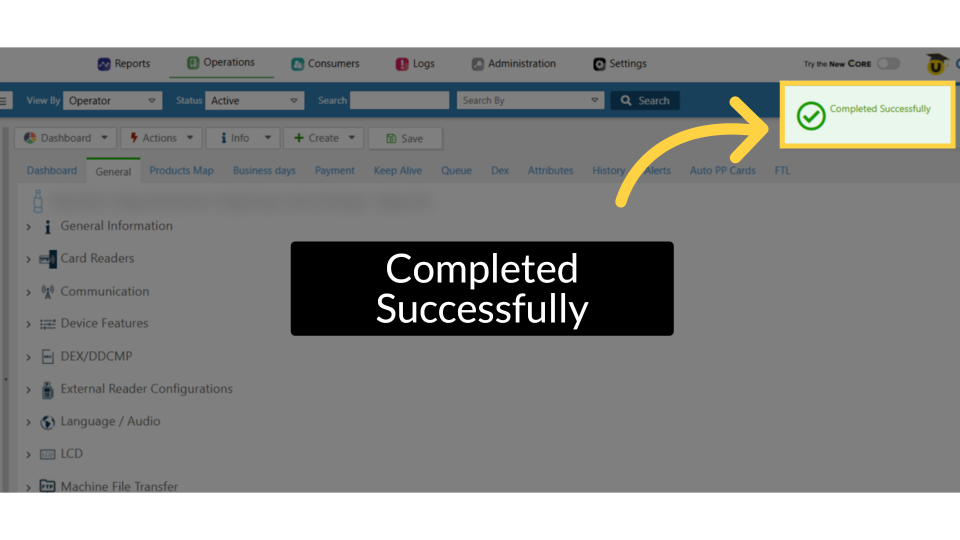

01:35: A pop-up will be displayed, confirming that the changes were completed successfully.

00:00: Learn how to exclude technician mode features from your NYX device through core 00:04: management Sioux. 00:05: On the dashboard of your NYX core management Suite, click on the operations 00:09: tab. 00:10: Select the machines tab from the drop-down menu. 00:13: Type in the field, your operators name, or machine ID in the search field. 00:17: Click on the search button. 00:19: In the hierarchy, sidebar, locate your machine. 00:24: Go to the general tab. 00:26: On the general tab, scroll down until you see vpos touch and click 00:30: on the option. 00:31: Locate the exclude from technician menu. 00:33: Machine attribute as indicated in yellow and then click on the drop-down 00:37: menu, as indicated in red. 00:40: In the drop-down menu, click on the technician menu items that you do not want 00:44: physically displayed inside of the technician mode on your NYX device. 00:49: Once you have decided what to exclude from the technician menu, tick the box 00:53: next to the attribute as highlighted in red in the visual. 00:57: Go to actions on the top of the screen. 01:00: To save your progress. Click the update queue tab. 01:02: Please note this change may cause your device to restart. 01:06: A confirmation popup will appear indicating that your action was successful. 01:11: Thank you for watching.
