How to add Two Tier Pricing to a Machine | Operations
1
Video Guide
2

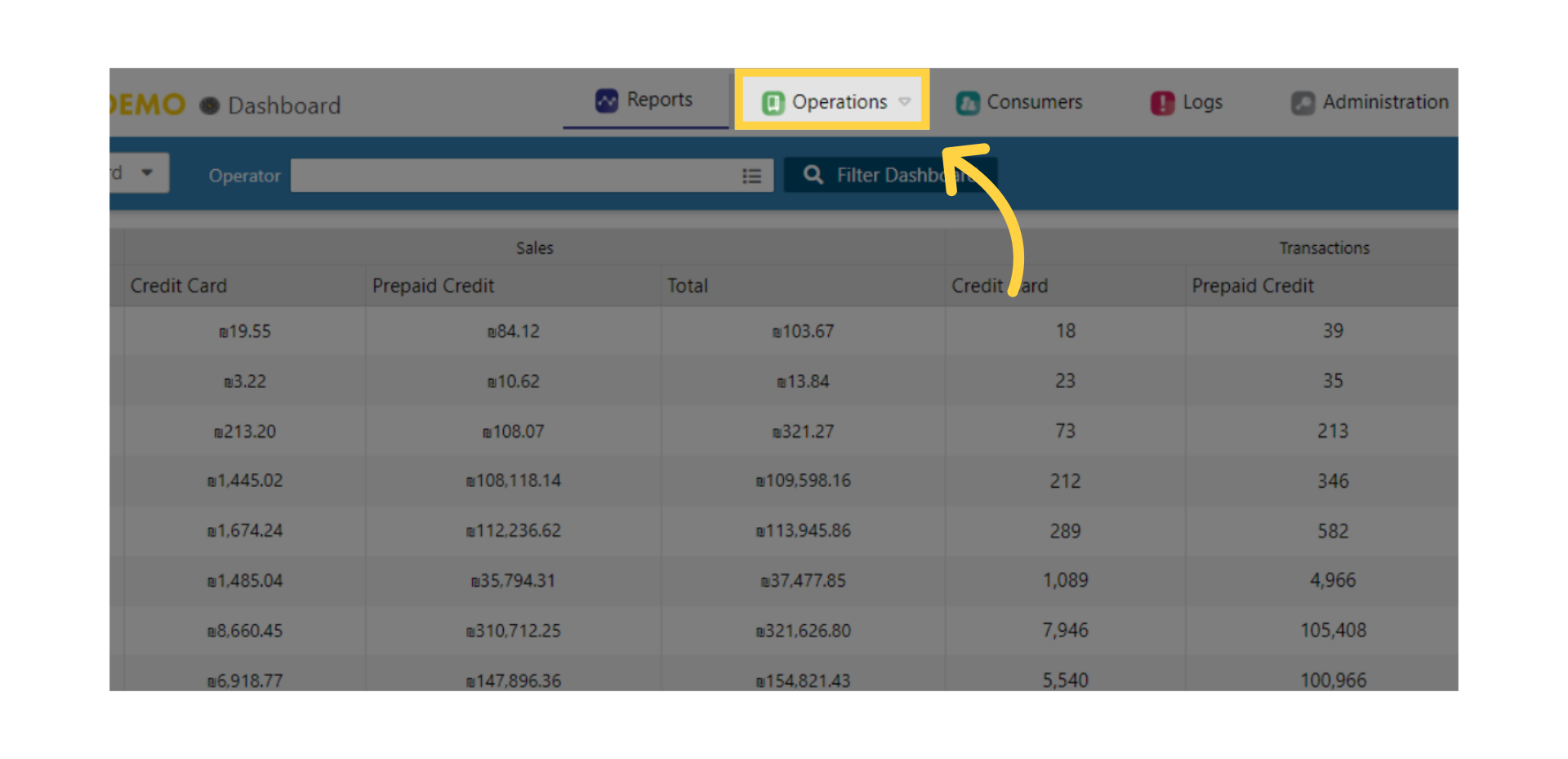

Click Operations
Image Attached
On the Dashboard of your Nayax Core management suite click on the operations tab.
3

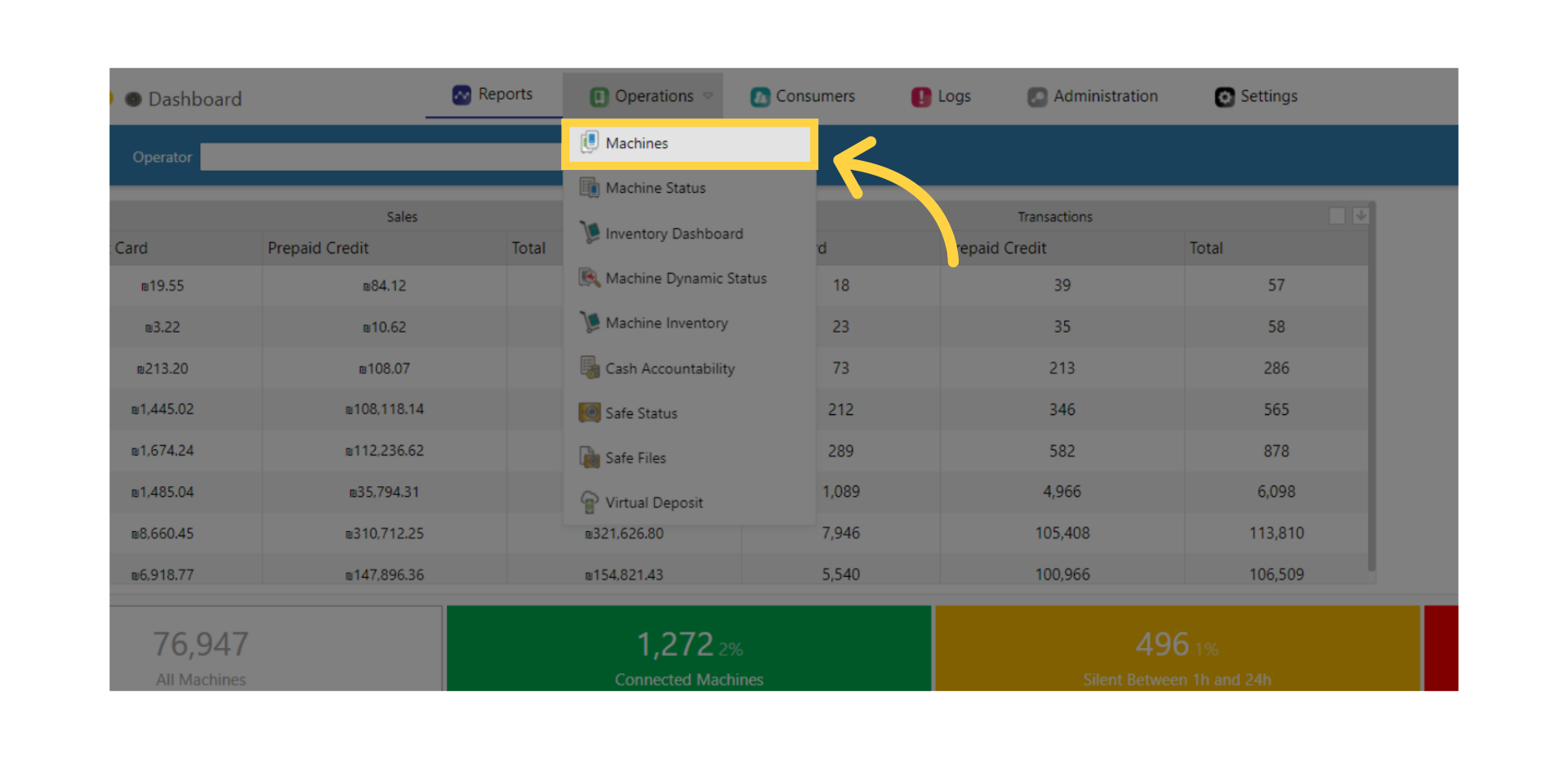

Click on Machines
Image Attached
Click on machines from the drop down menu.
4

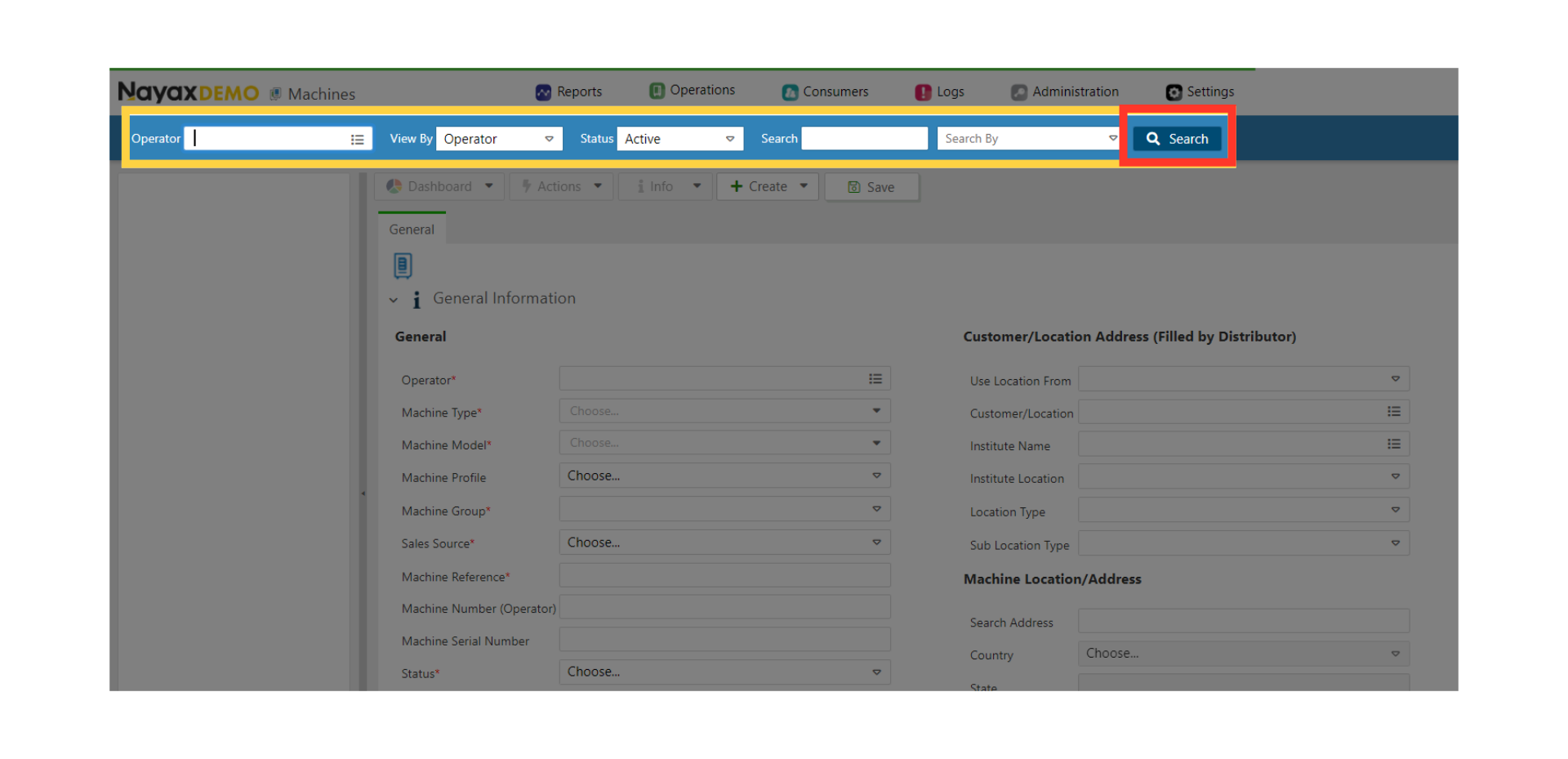

Fill in Operator
Image Attached
Type in your operator name and any other fields to locate your machine and press search as highlighted in RED on the visual.
5

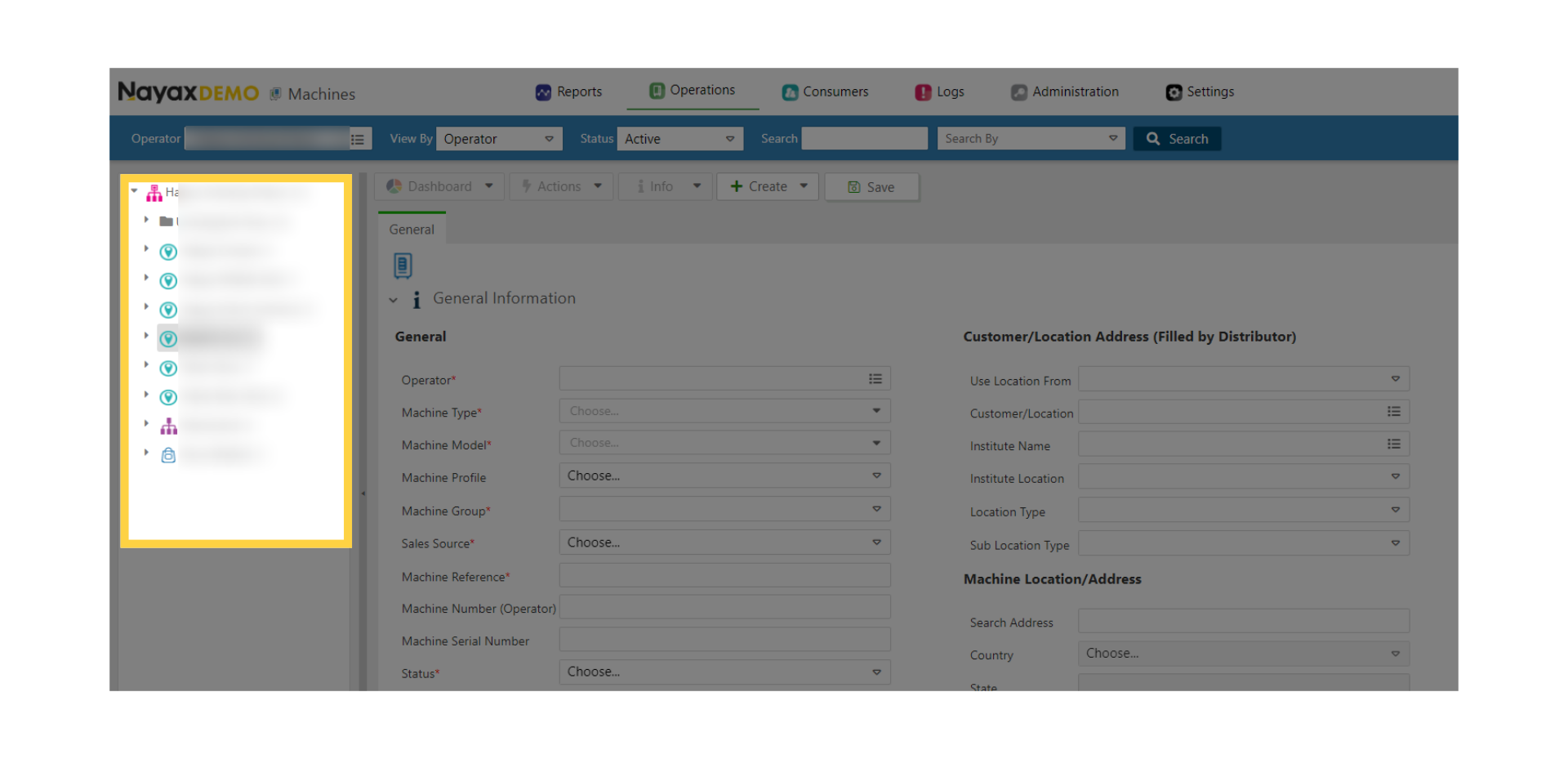

Locate Machine from Hierarchy
Image Attached
Locate and click on the machine from the hierarchy.
6
Click on Payment
Image Attached
From the main screen click on the payment tab.
7

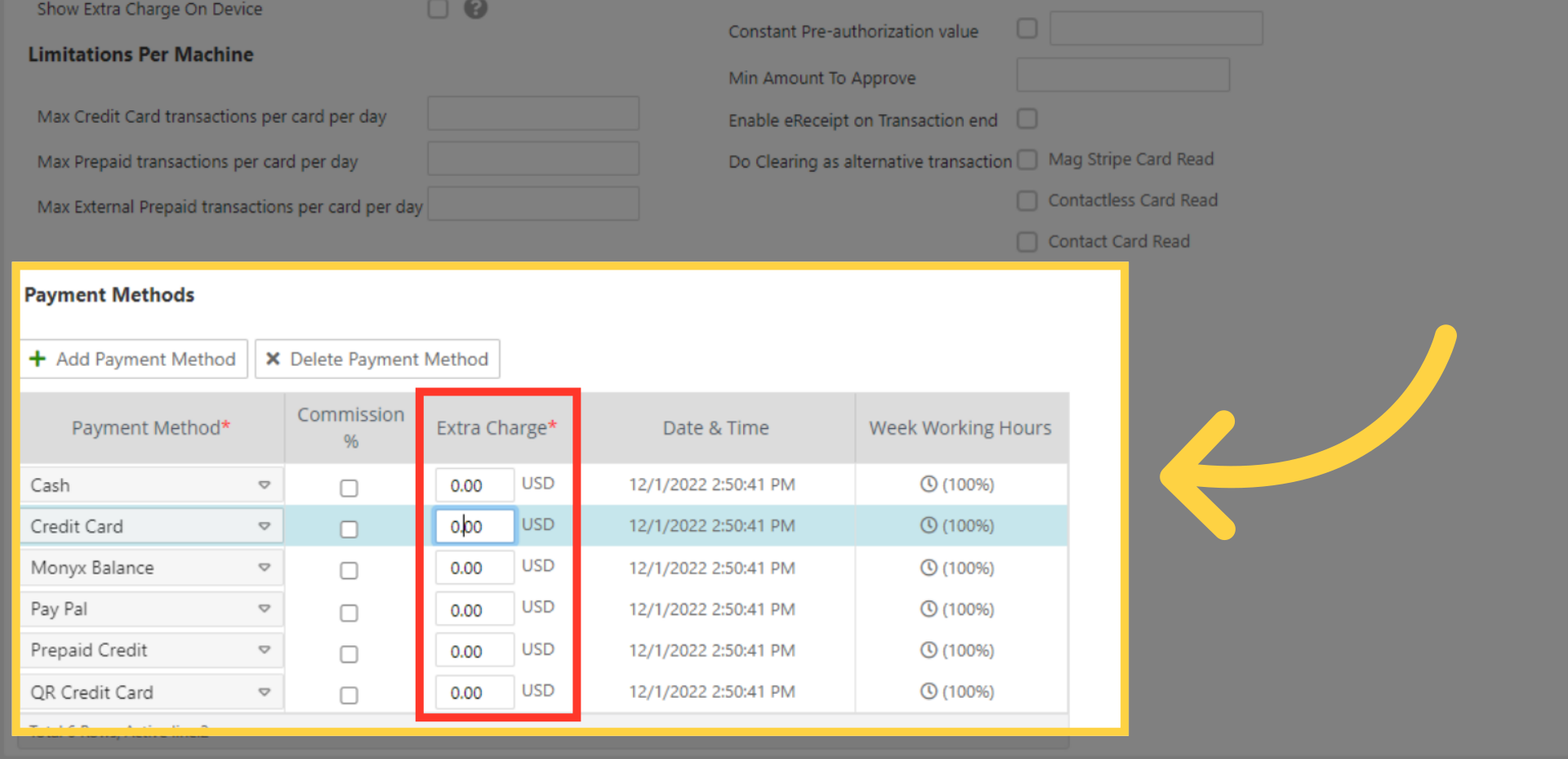

Scroll Down to Payment Method Table
Image Attached
Scroll down to the Payment Table and Configure the required value under the Extra Charge column as highlighted in RED on the visual.
8

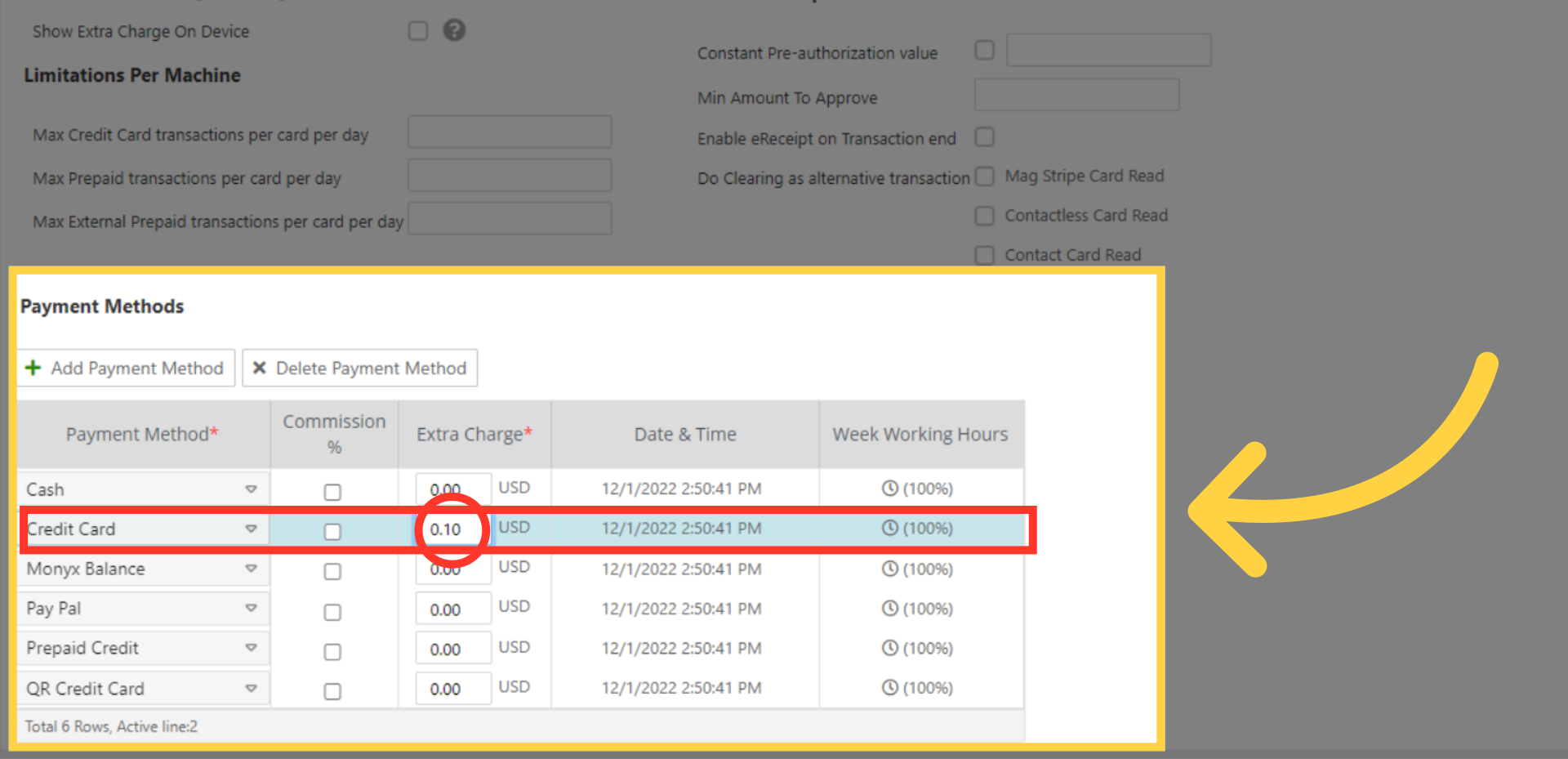

Configure Two-Tier Pricing
Image Attached
For the purpose of this example, we will write 0.10 to configure the two-tier pricing to be 10 cents in the extra charge column.
9

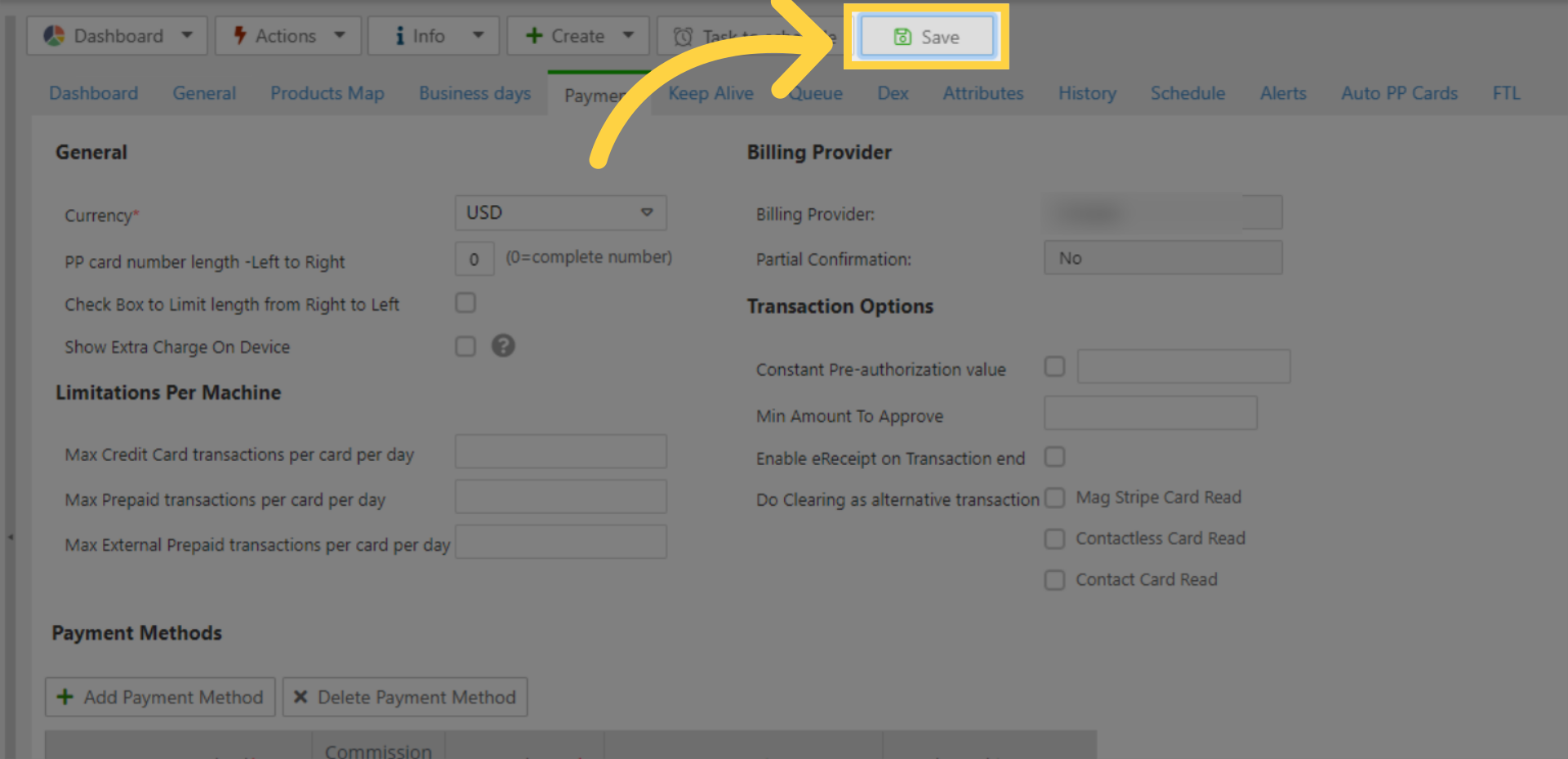

Click Save
Image Attached
Save the changes made to the machine's pricing
10

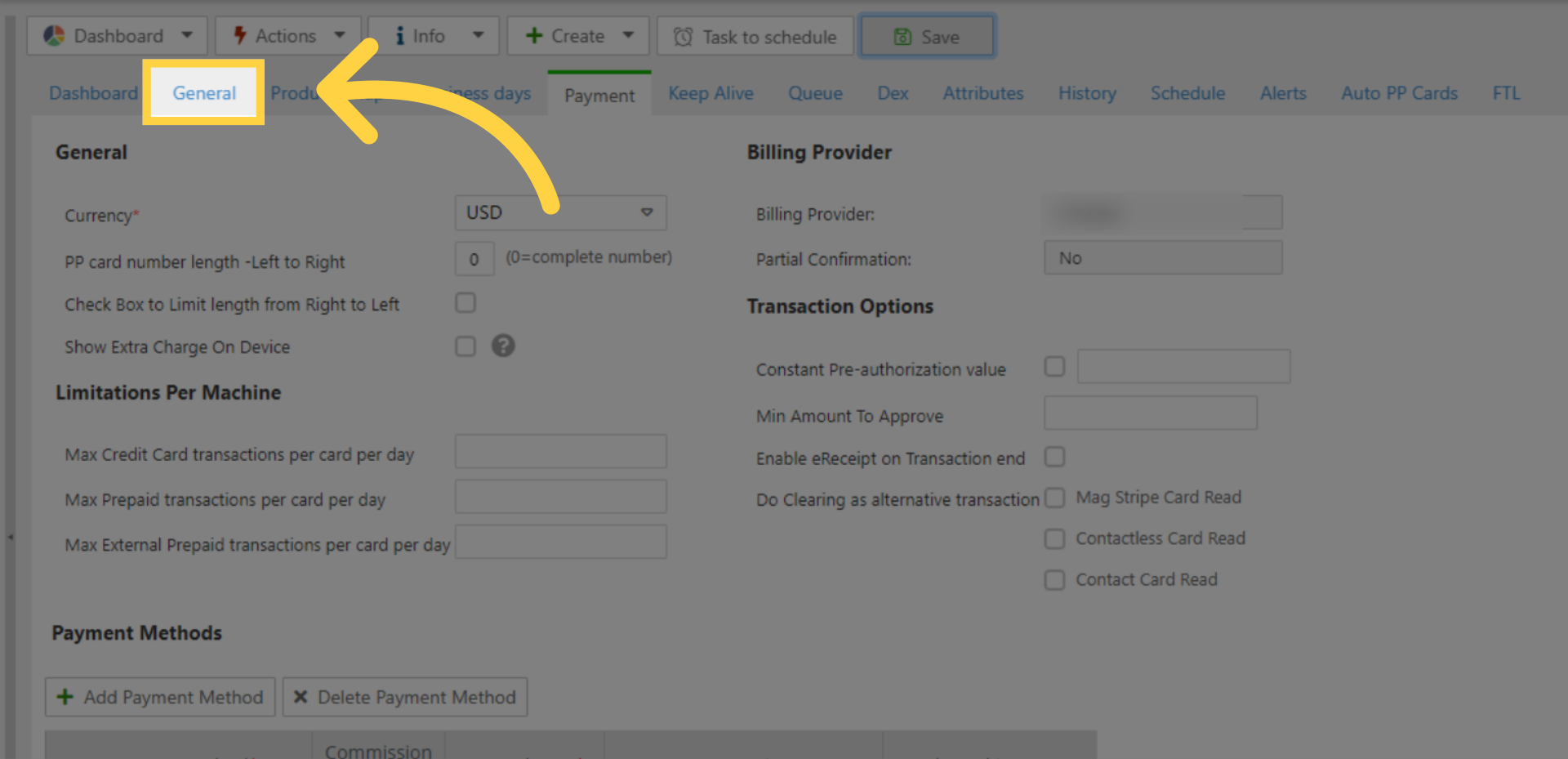

Click on General Tab
Image Attached
Now click on General Tab.
11

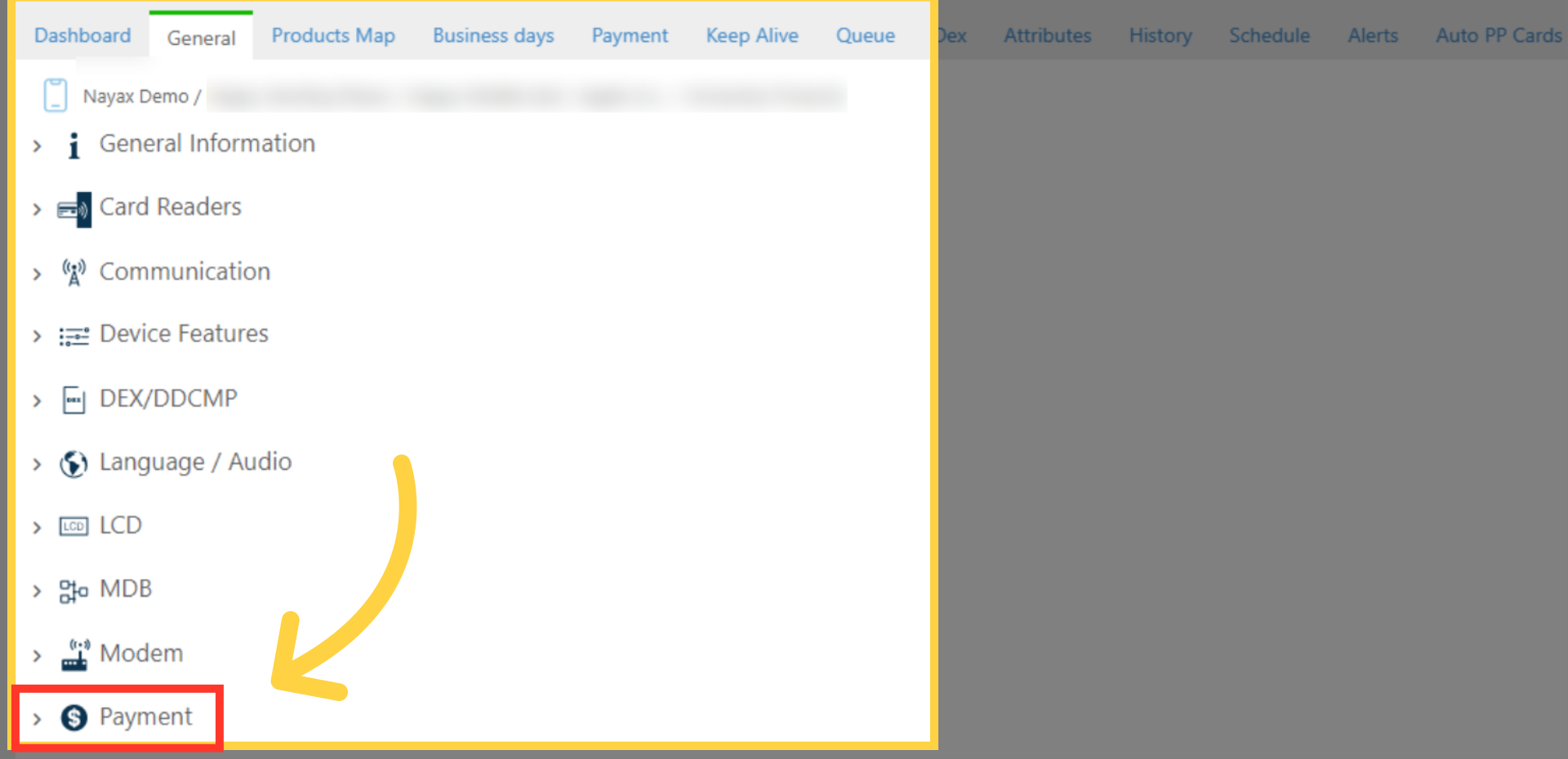

Click Payment
Image Attached
On the main General section, scroll down to the Payment tab as highlighted in RED on the visual.
12

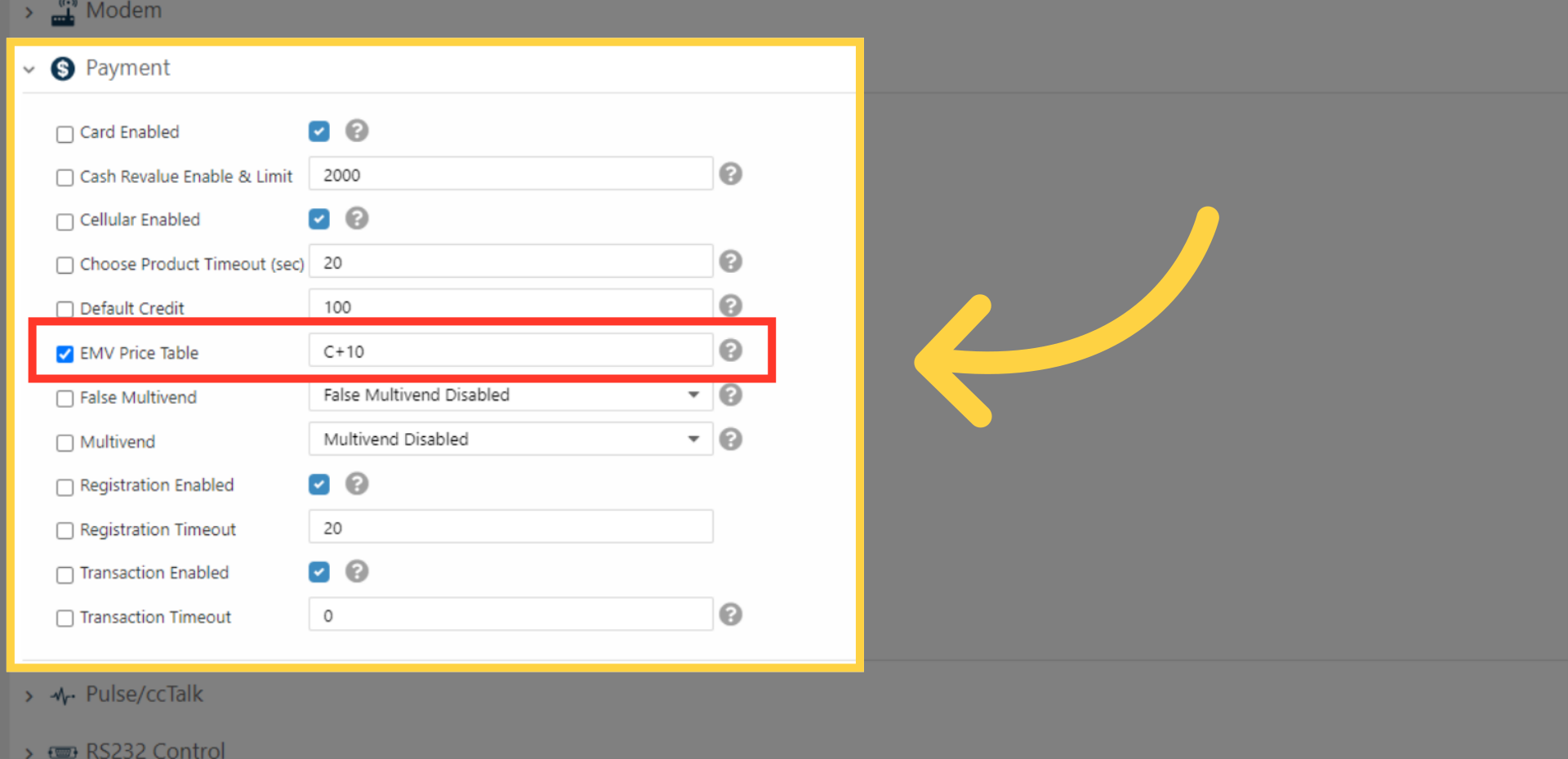

Set Pricing
Image AttachedClick the checkbox for the second tier pricing option. Set the EMV Price Table value to C+10.
13

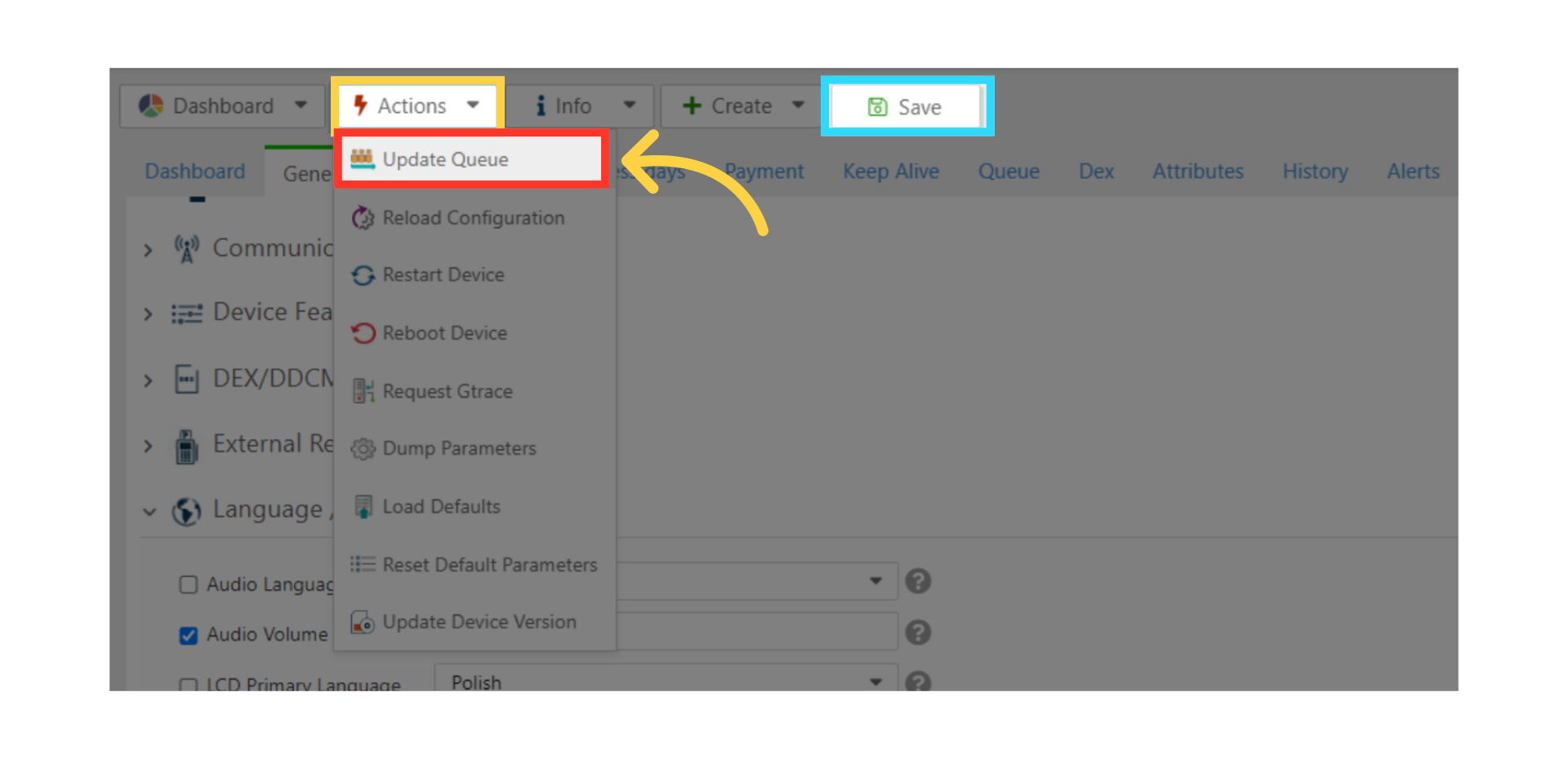

Click Update Queue
Image Attached
Then scroll to the Actions button and click Update Queue as highlighted in RED on the visual and then the click on the save button to save your changes as highlighted in BLUE on the visual.
14

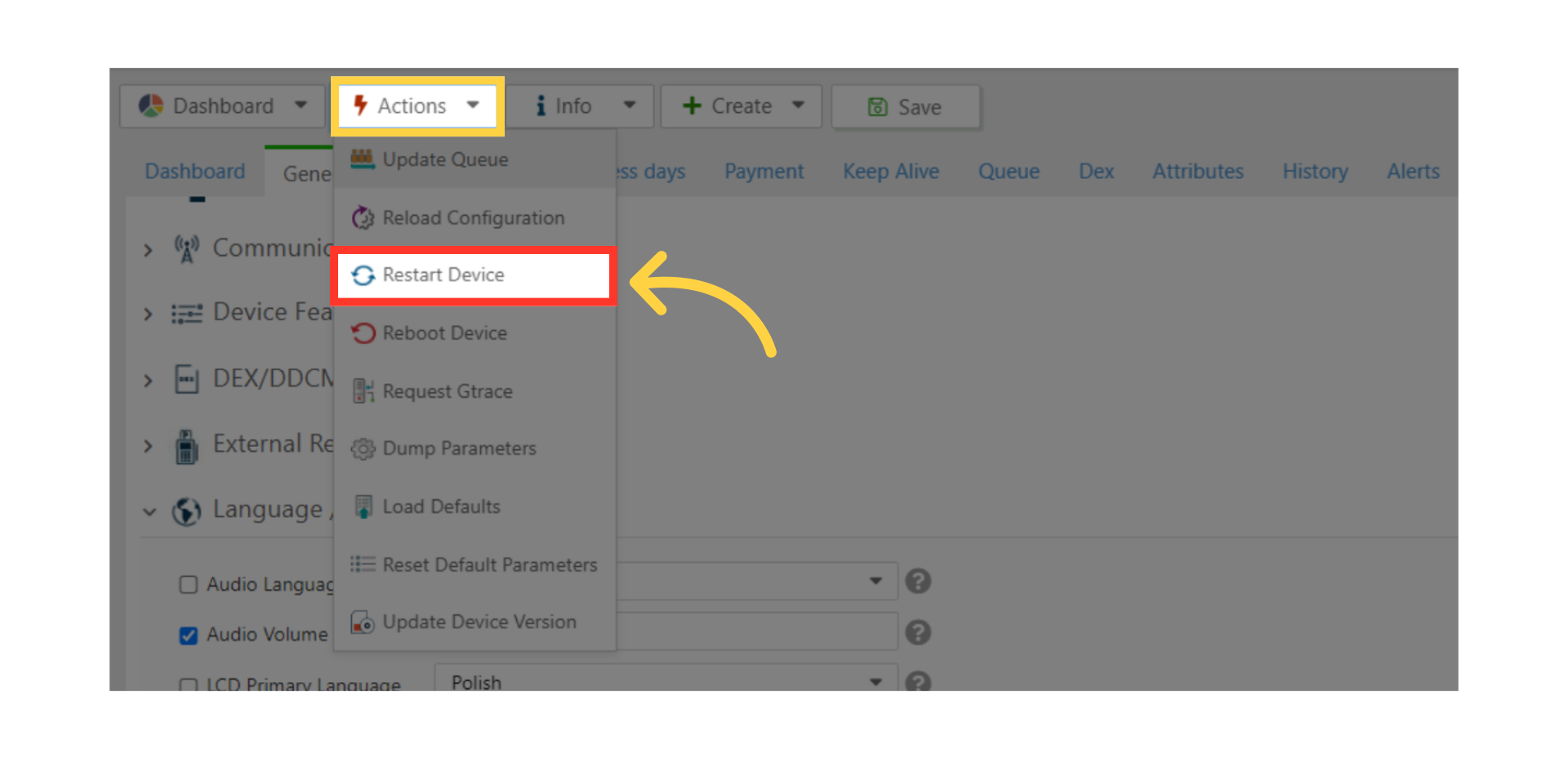

Click Restart Device
Image Attached
Optionally you can also choose to click the Actions button and click Restart device as highlighted in RED on the visual.
We hope this guide was able to walk you through the process, we ask you to please help us help you by leaving feedback!
Thank you!
