How to Change Meter Values Interval | Operations

There are two types of meter values that you can adjust their intervals.

1. Meter Value Clock Align - Set in minutes and appear regardless of an open charging session.
   name in the reports: Sample Clock
2. EV Telemetry - set in seconds and appears only in an open charging session.
   name in the reports: Sample Periodic

On the Dashboard of your Nayax Energy Core management suite click on the Operations tab.

Click on the Charging Stations tab from the drop down menu.

Type in your Charge Point Operator name and any other fields to locate your Charging Point. Click search button as highlighted in RED on the visual.



Pro Tip: You can search without typing a name of a Charge Point Operator and leaving this field blank. In this case, the data displayed will be all the CPOs (and/or sub-operators) you have permission to view.

Locate and click on the Charging Point from the hierarchy.

Click on the Attributes Tab.

Under the Group field click on and select the EV Charger option from the drop down menu as highlighted in RED in the visual.

Click on the save button to save your progress.

Click on the General Tab and then Click on the EV Chargers option as highlighted in RED on the visual.

We recommend setting the Clock Align to 30 minutes and the EV telemetry to 60 seconds



In the example, you can see the charger is set to receive meter values in a charging session every 1 minute highlighted in GREEN and meter value every 1 hour highlighted in RED on the visual.



Click on the checkboxes once you have set your preferences to enable them as highlighted in RED.

Click on the save button to save your progress.

Then scroll to the Actions button and click Update Queue as highlighted in RED on the visual and then the click on the save button to save your changes as highlighted in BLUE on the visual.

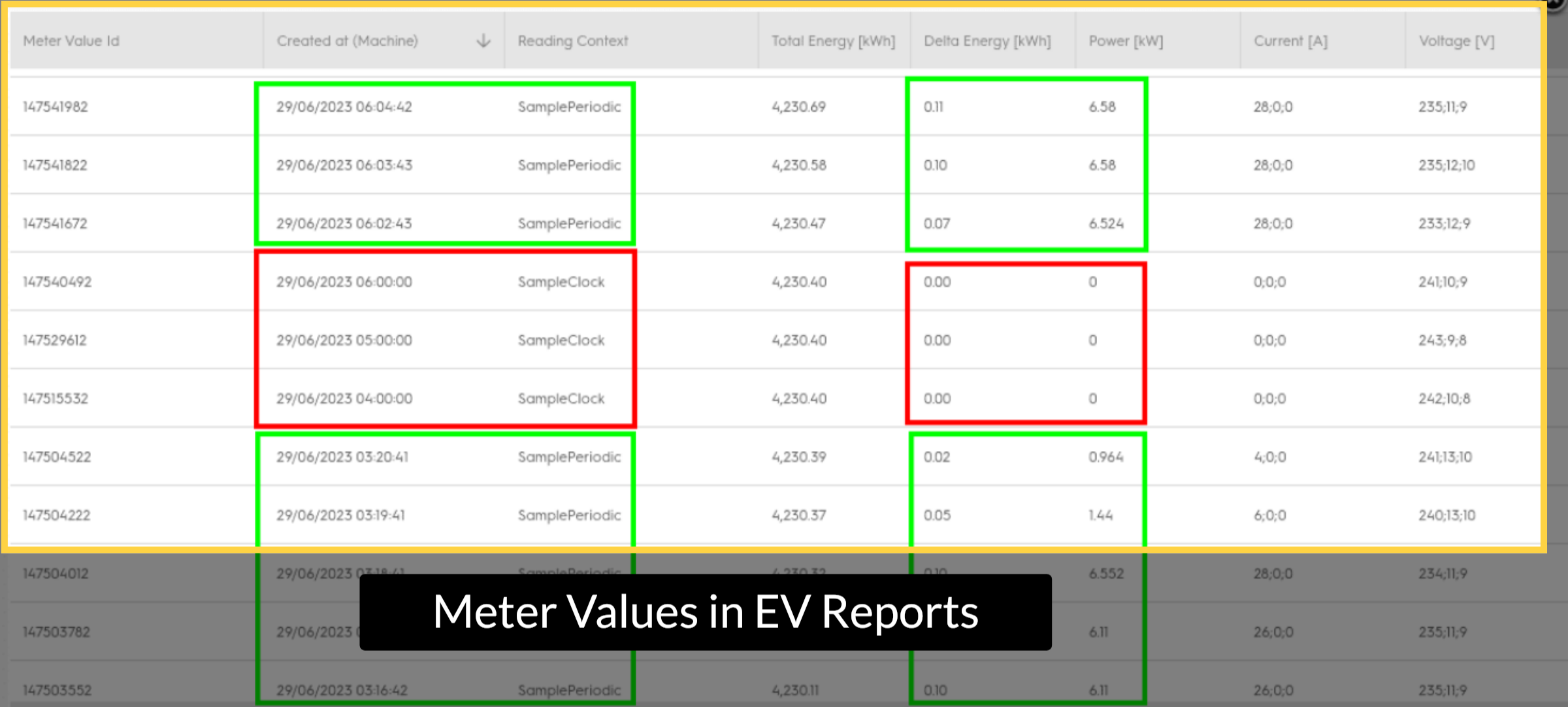

In this visual you can see meter values in the EV reports showing the difference between the two:
Green - EV Telemetry
Red - Clock Align
