Configure a Machine for a POS Device for Retail Core | Nayax Core
1
Video Guide
2

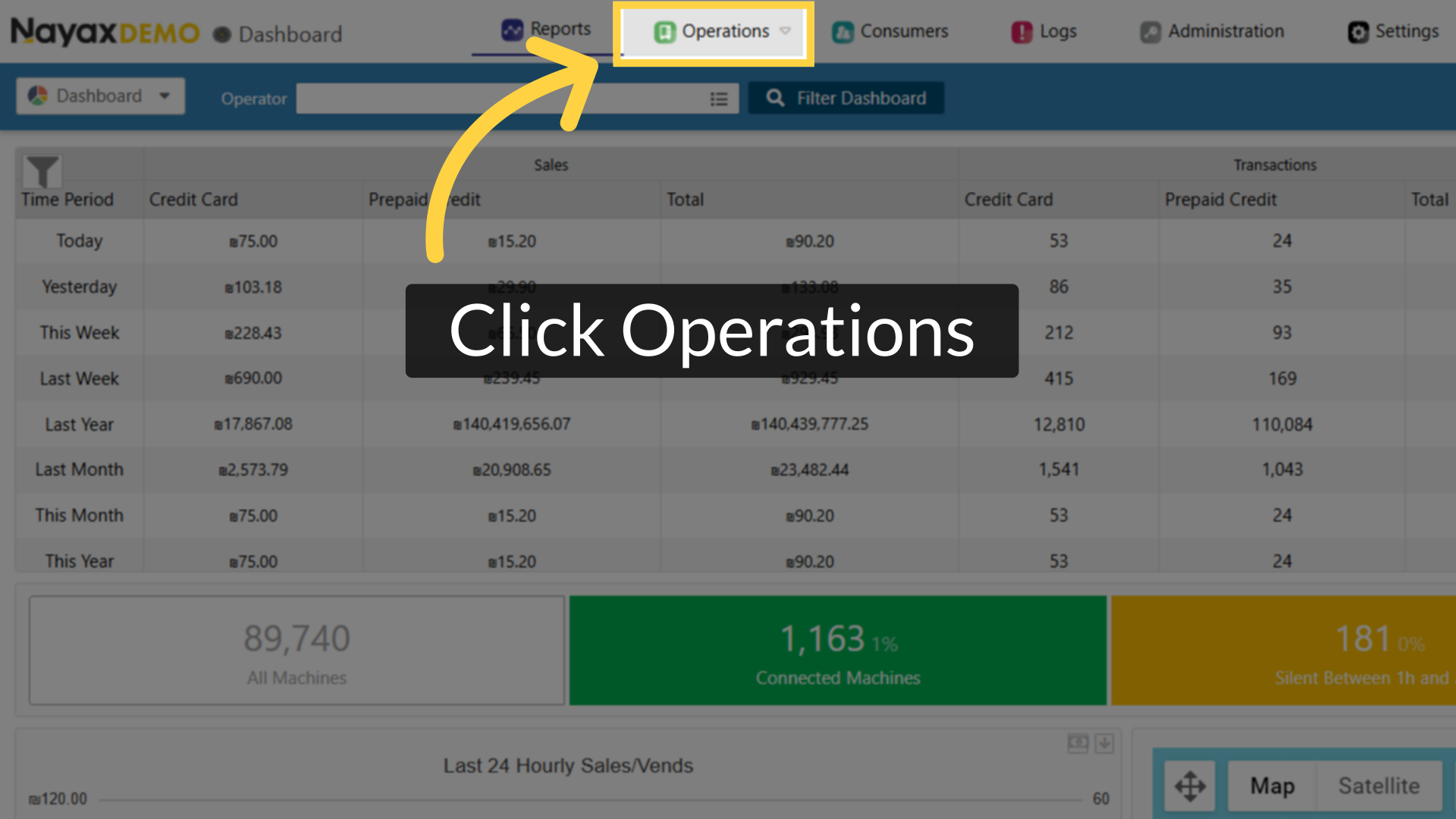

Click Operations Tab
Image Attached
On the dashboard of your Nayax Core management suite click on the Operators tab.
3

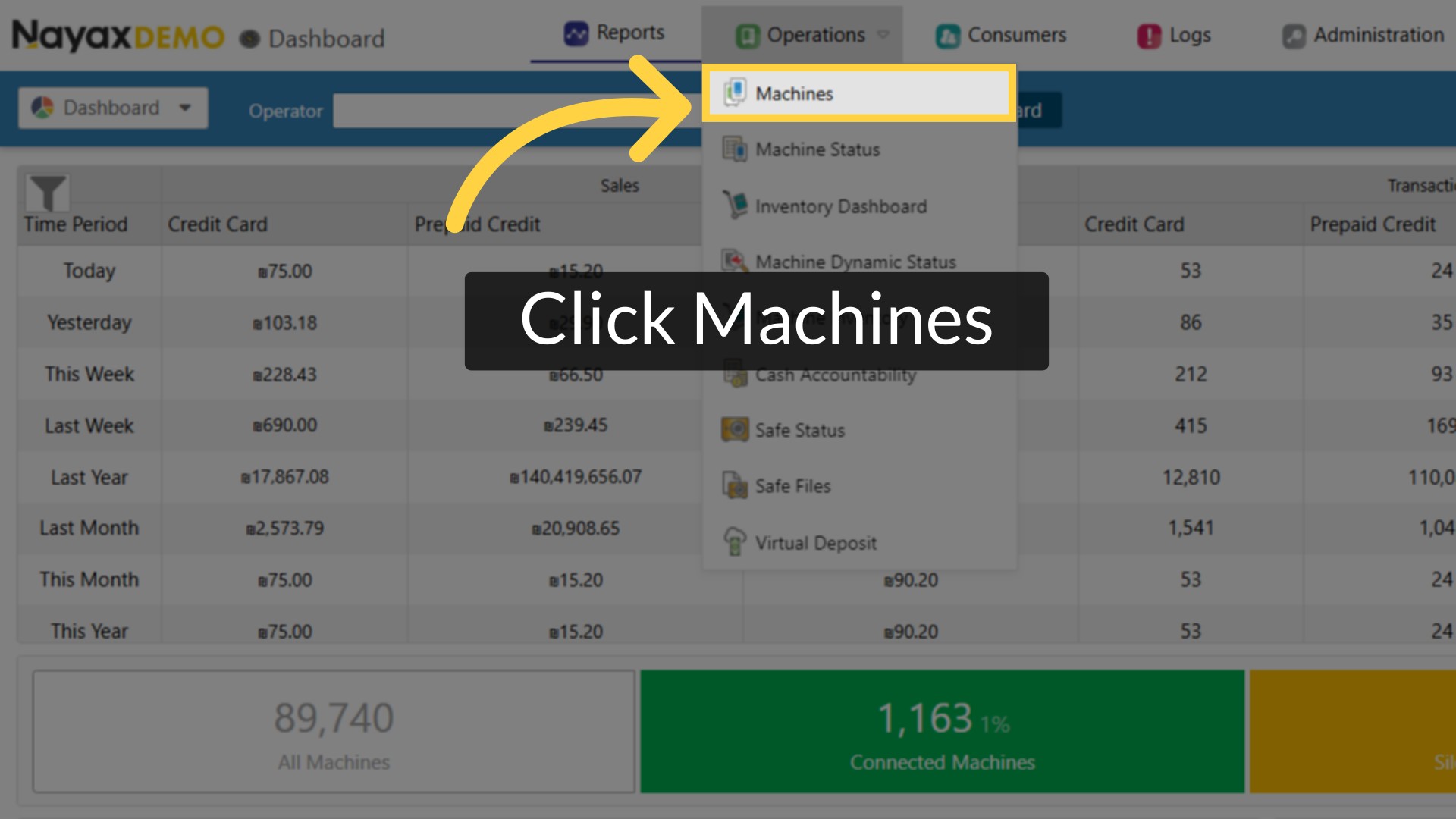

Click Machines
Image Attached
Click on the Machines tab from the drop-down menu.
4

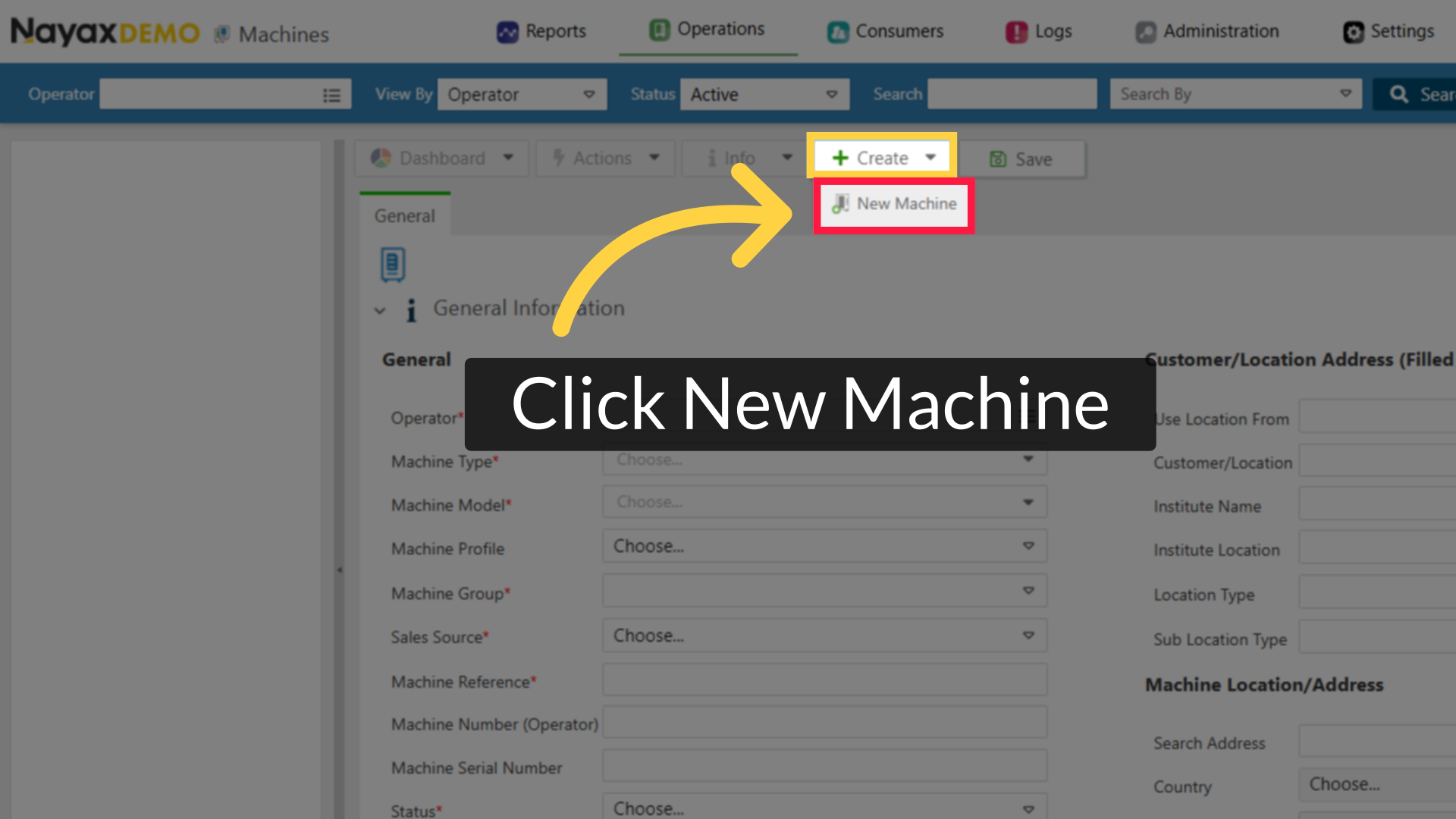

Click Create Tab
Image Attached
Click the Create tab and then click the add new machine from the drop down menu as highlighted in RED on the visual.
5

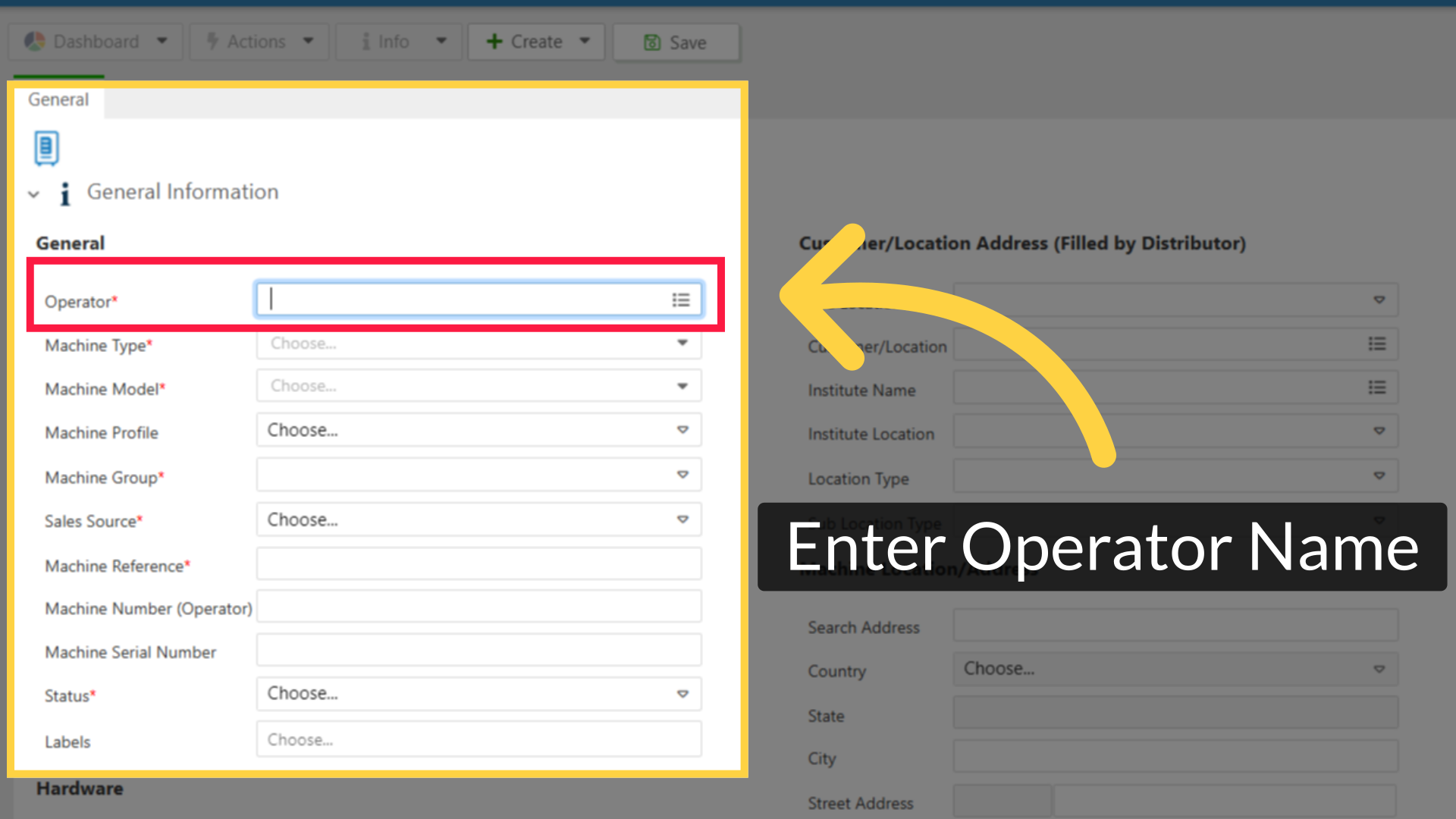

Enter Operator Name
Image Attached
On the main general section under Operator now enter the Operator or sub-operator name.
This machine will be created under their hierarchical tree.
This machine will be created under their hierarchical tree.
6

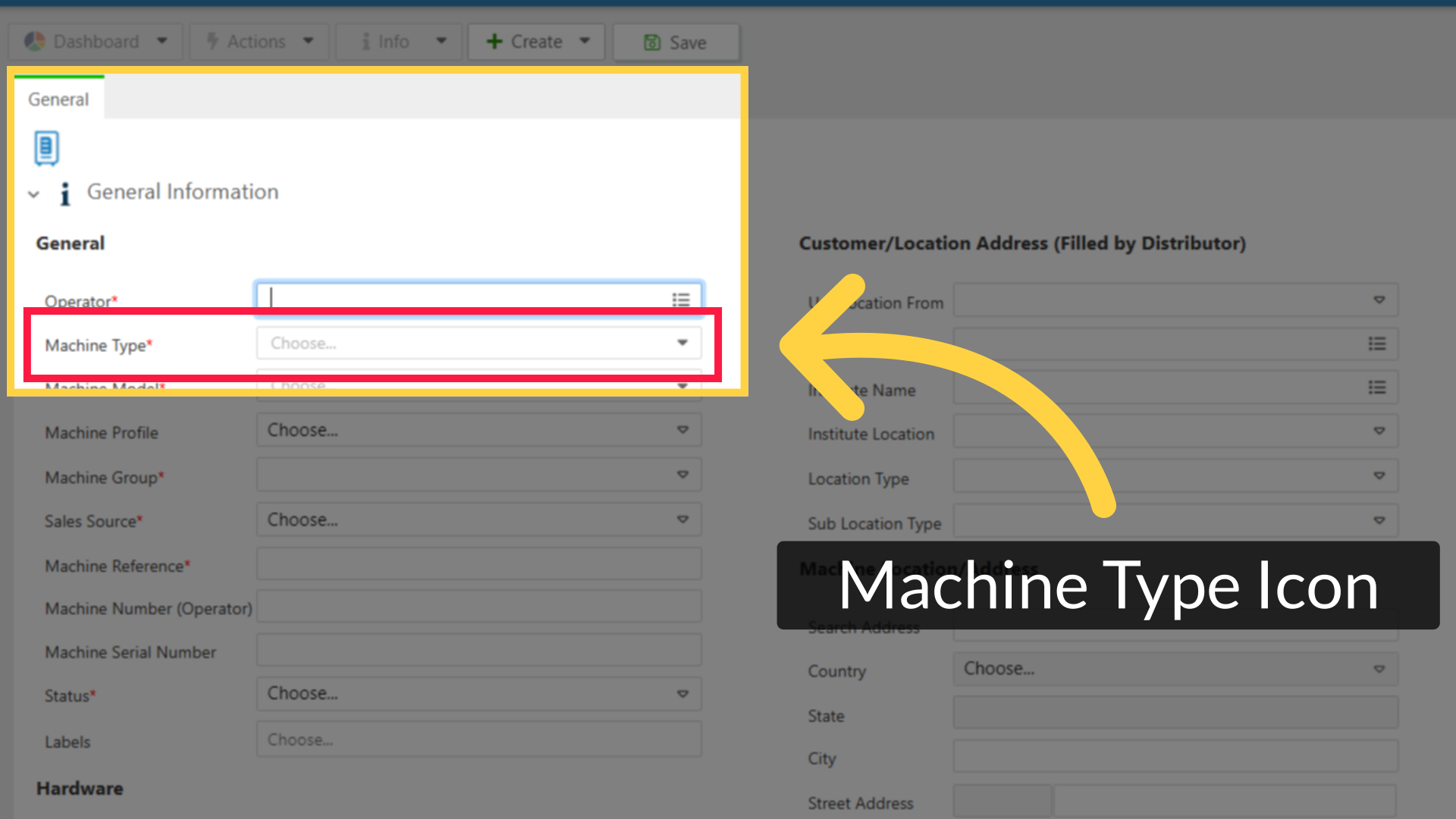

Machine Type Icon
Image Attached
Select an Icon from the drop down menu of your choice and it doesn't matter for this Machine the name of the icon.
7

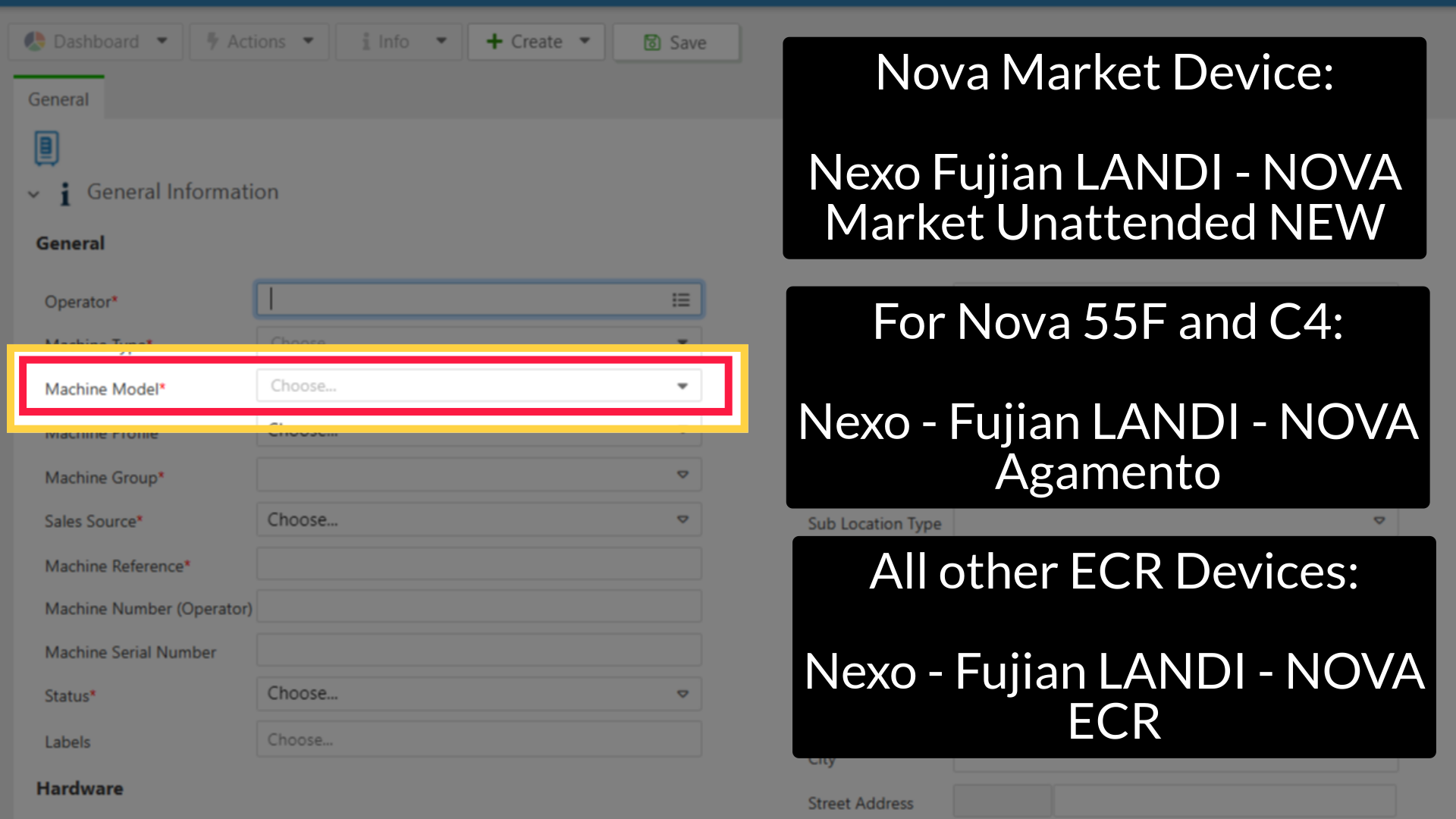

Machine Model
Image Attached
For Machine Model as highlighted select from the drop down options depending on your device as listed:
|
Machine Model |
For Nova Market Device select: Nexo - Fujian LANDI - NOVA Market Unattended NEW For Nova 55F and C4 select: Nexo - Fujian LANDI - NOVA Agamento For all other ECR devices select: Nexo - Fujian LANDI - NOVA ECR |
8

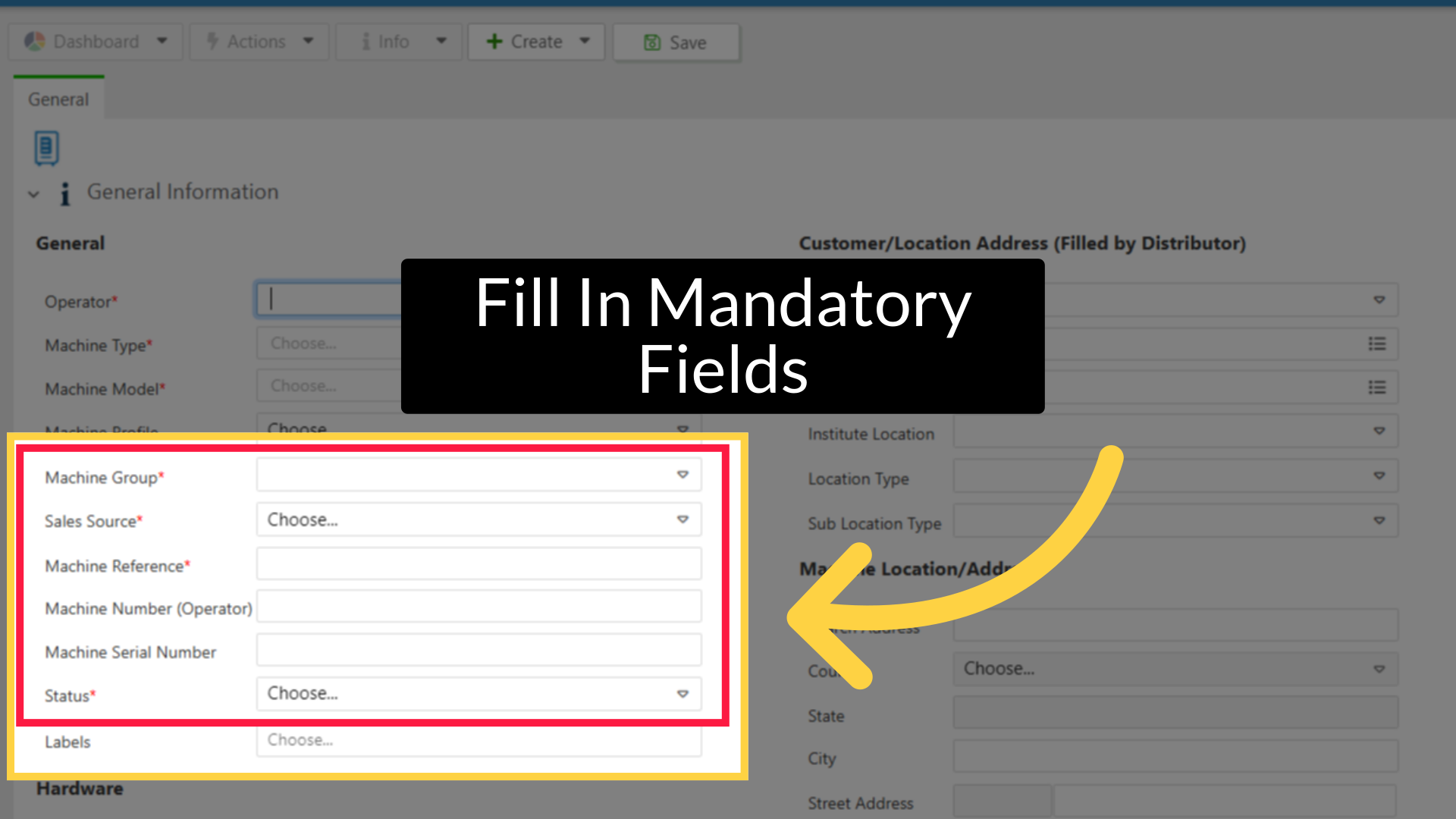

Fill In Mandatory Fields
Image Attached
Fill in the following fields:
|
Machine Group |
Select a group to organize devices |
|
Sales Source |
Select Live Transactions |
|
Machine Reference |
Name the device for easy identification |
|
Status |
Select Active |
9

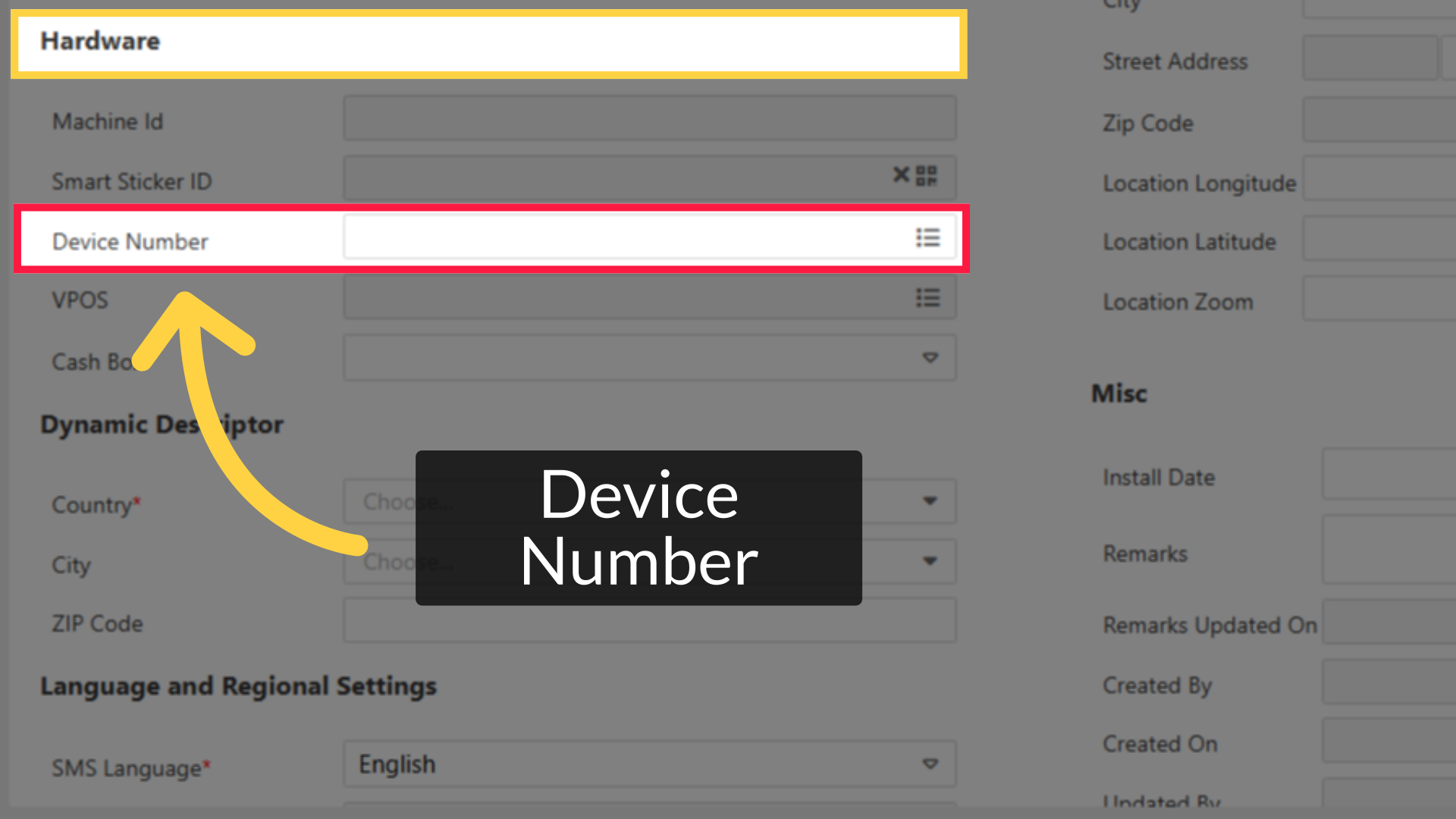

Device Number
Image Attached
In the Hardware section, select the device number from the drop down menu.
10

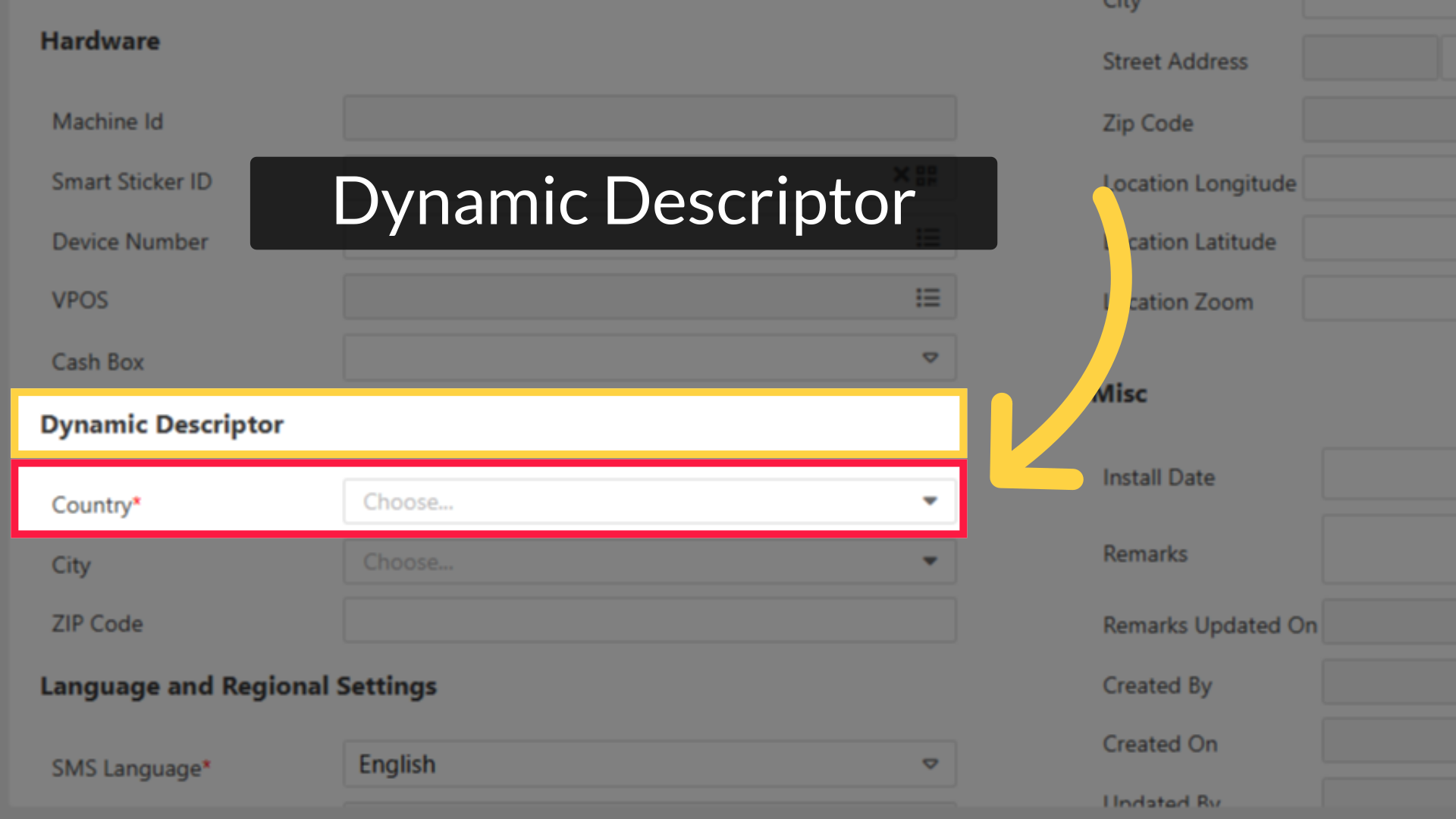

Dynamic Descriptor
Image Attached
Under Dynamic Descriptor section as highlighted select the country the device is active in.
11

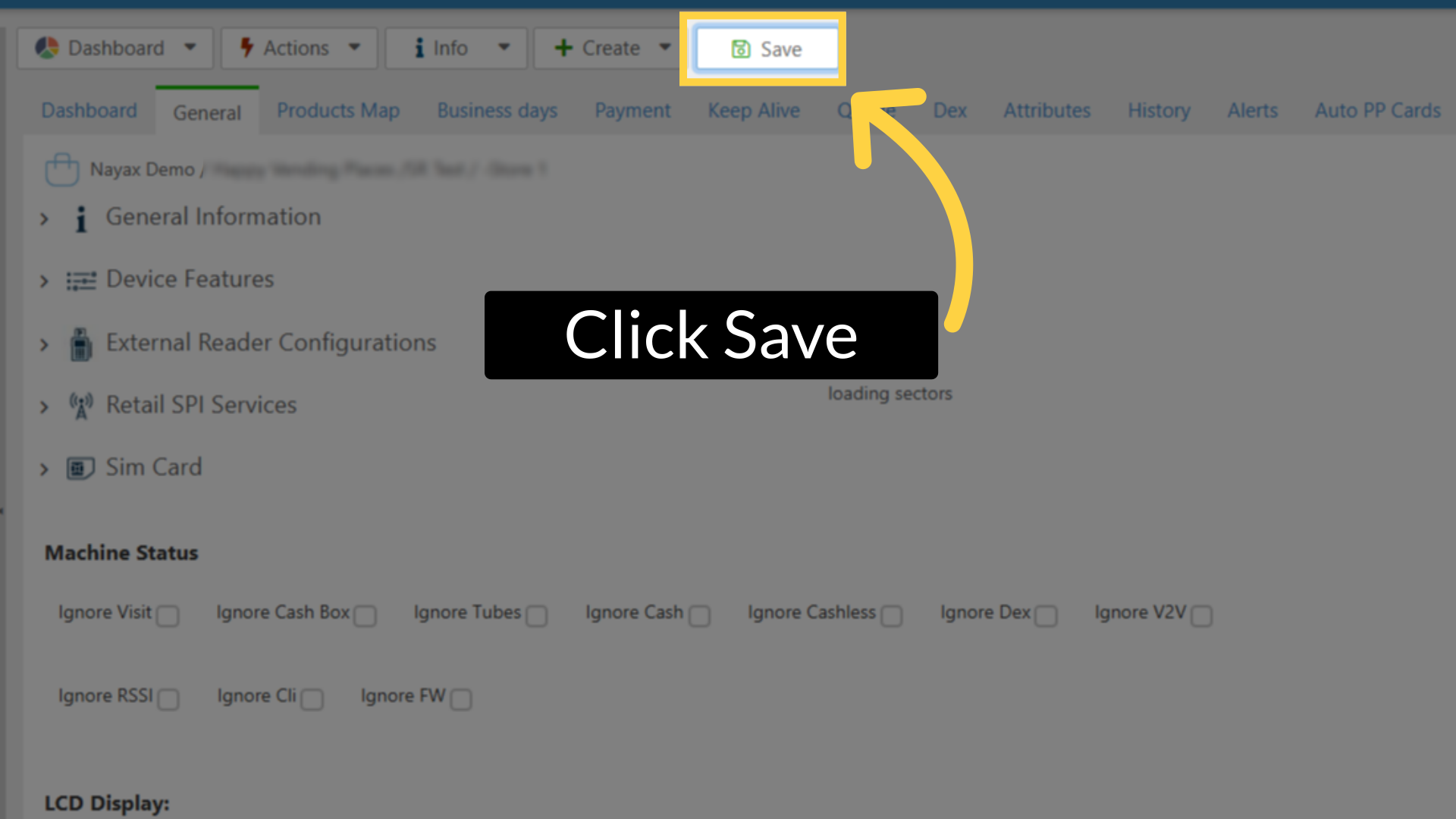

Click Save
Image Attached
Click the save button and the general section will open to the management page for the device.
12

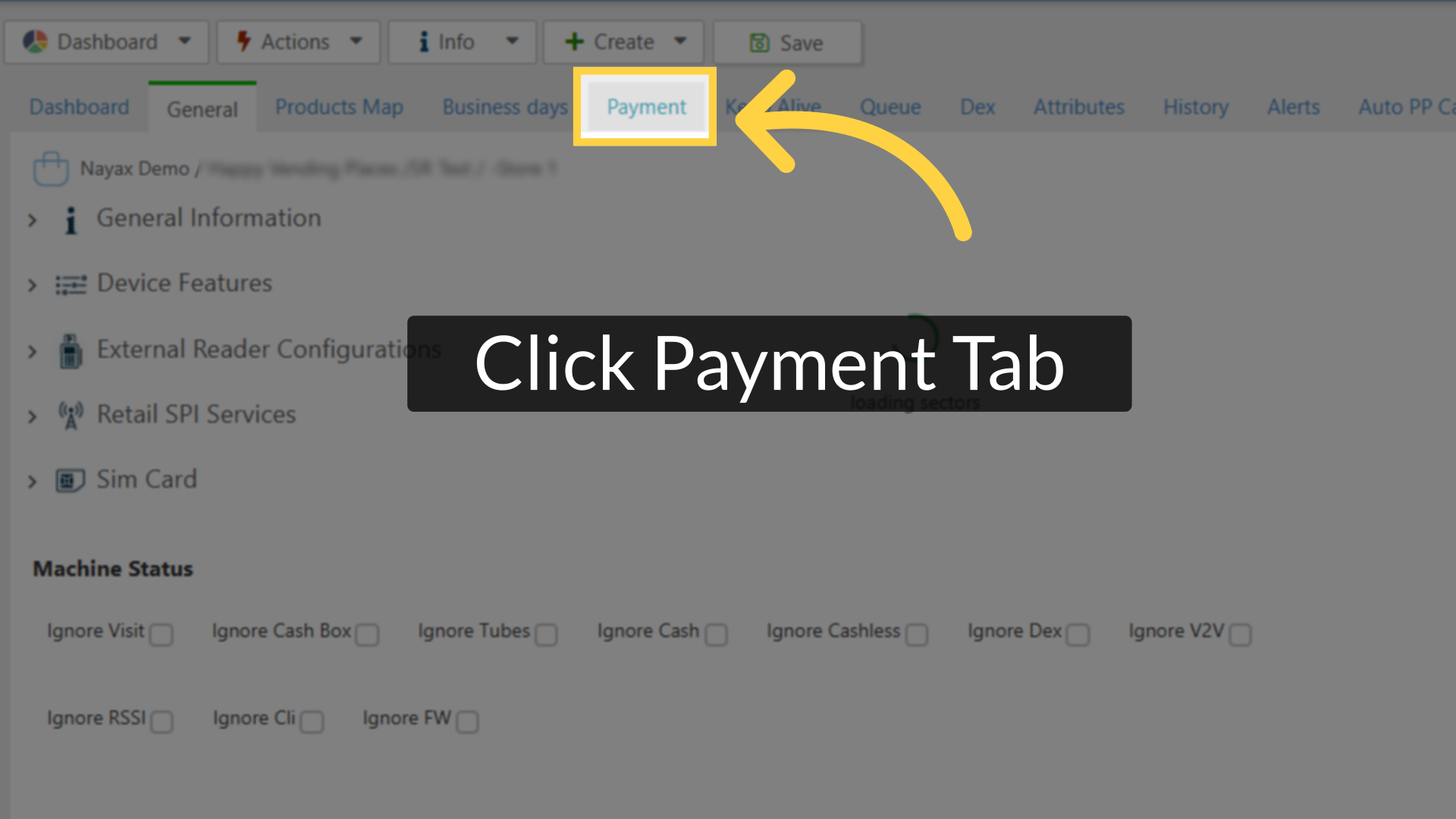

Click Payment Tab
Image Attached
Click on payment tab from the main section as highlighted.
13

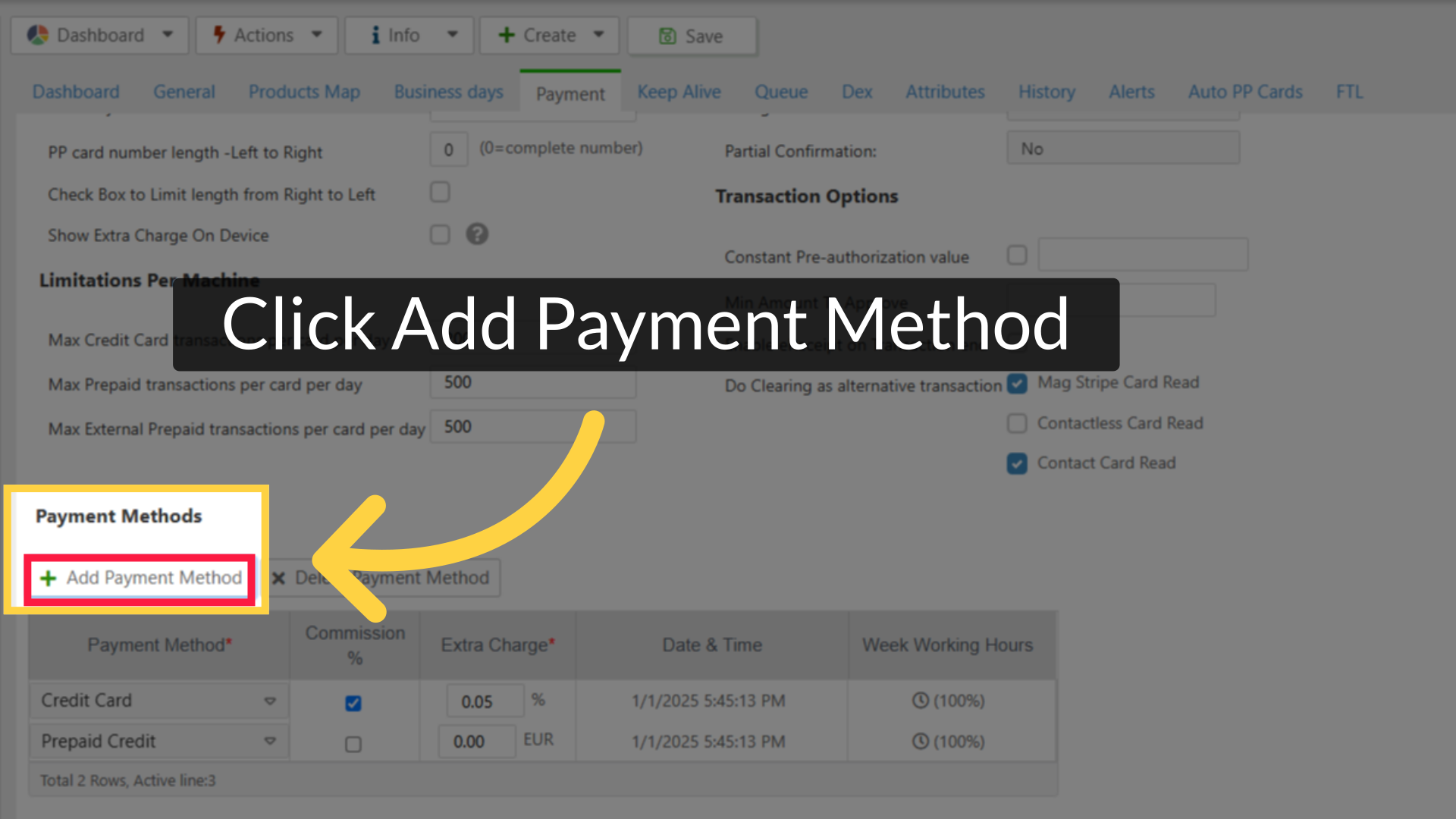

Click Add Payment Method tab
Image Attached
Scroll down to Payment Methods and click Add Payment Method as highlighted.
14

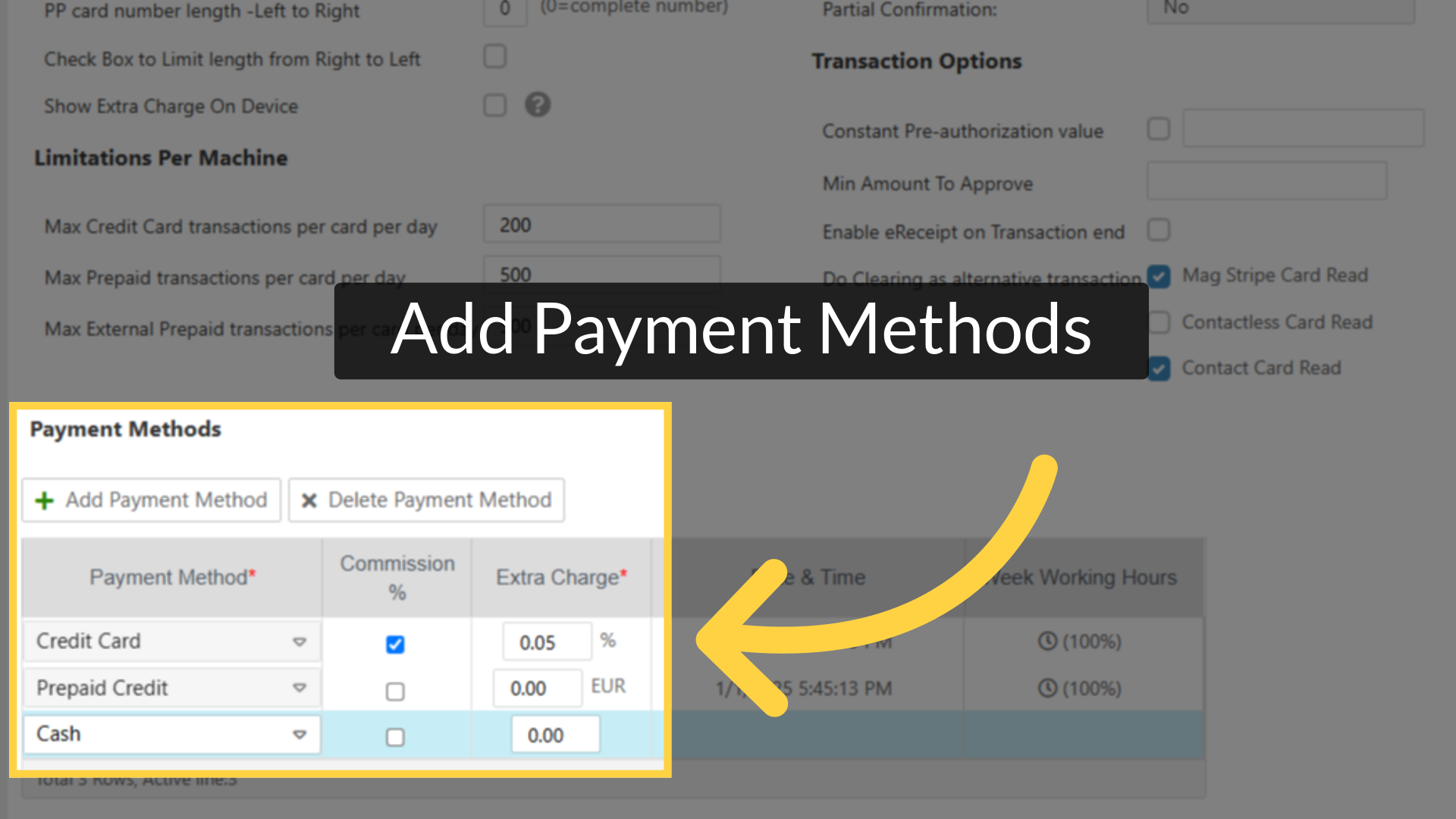

Add Payment Methods
Image AttachedAdding payment methods, we recommend the basics of Credit Card, Prepaid, and Cash to allow for all options to be accepted during the payment process.
15

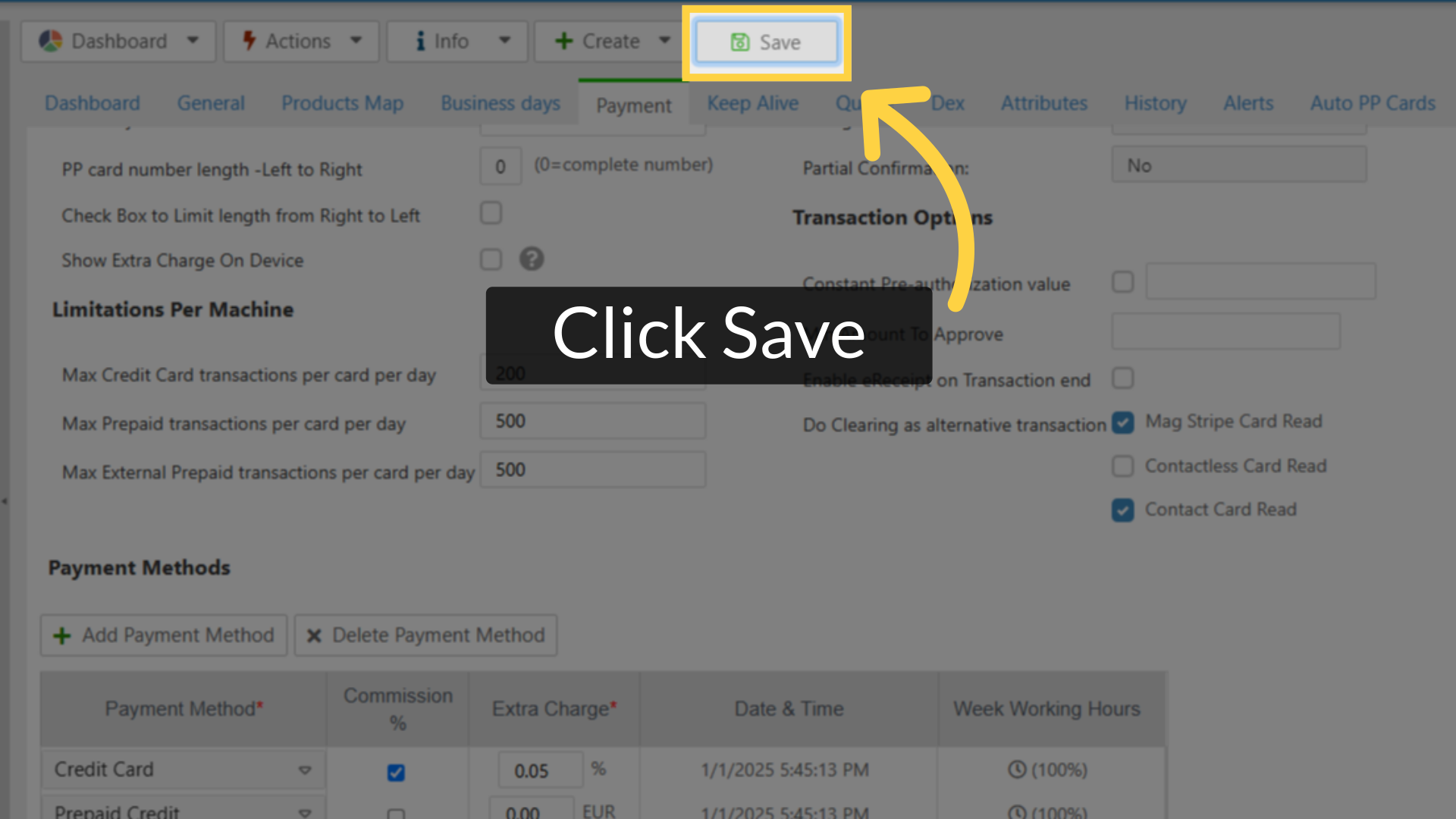

Click Save
Image Attached
Click on save to save your changes.
