Creating a new machine using the Nayax Core
Video Guide

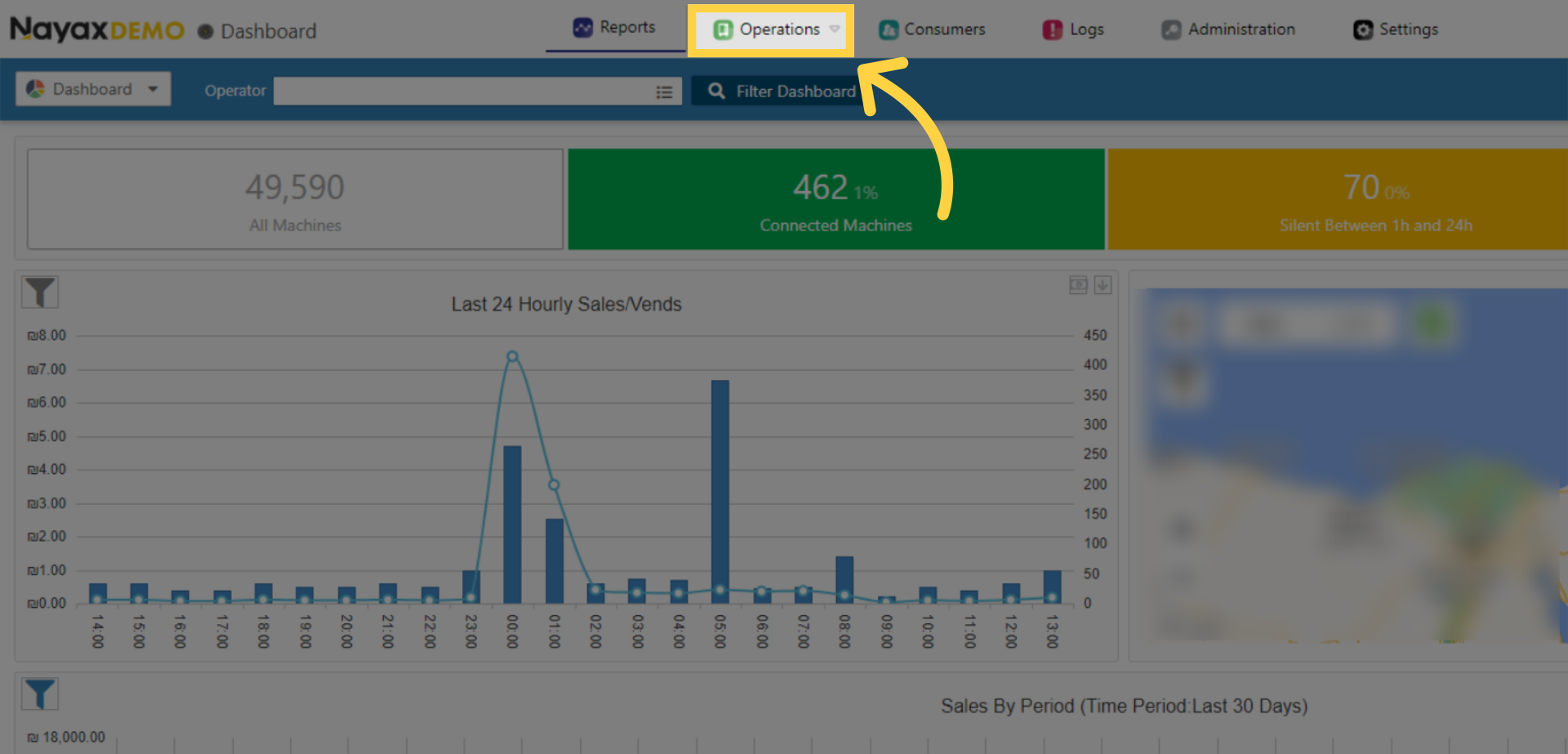

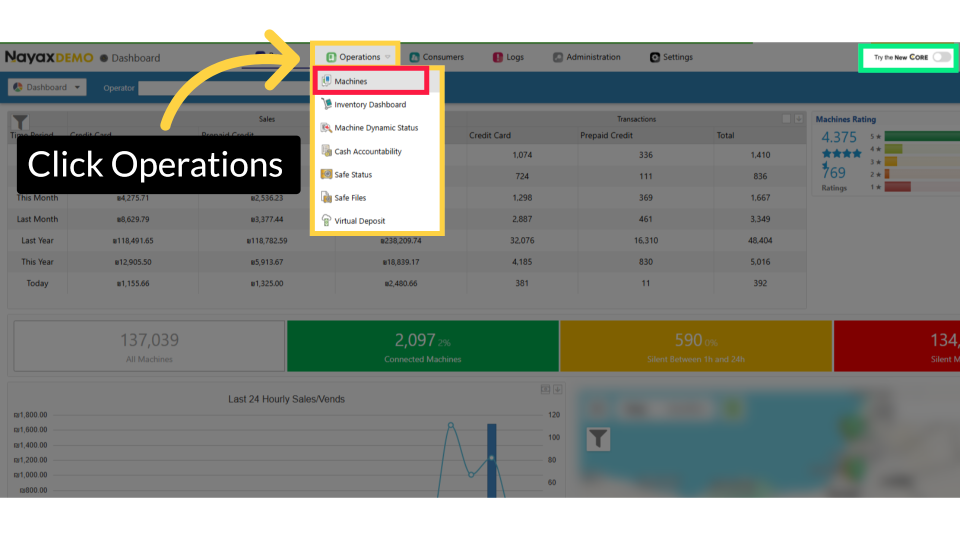

Click Operators Tab
Image Attached

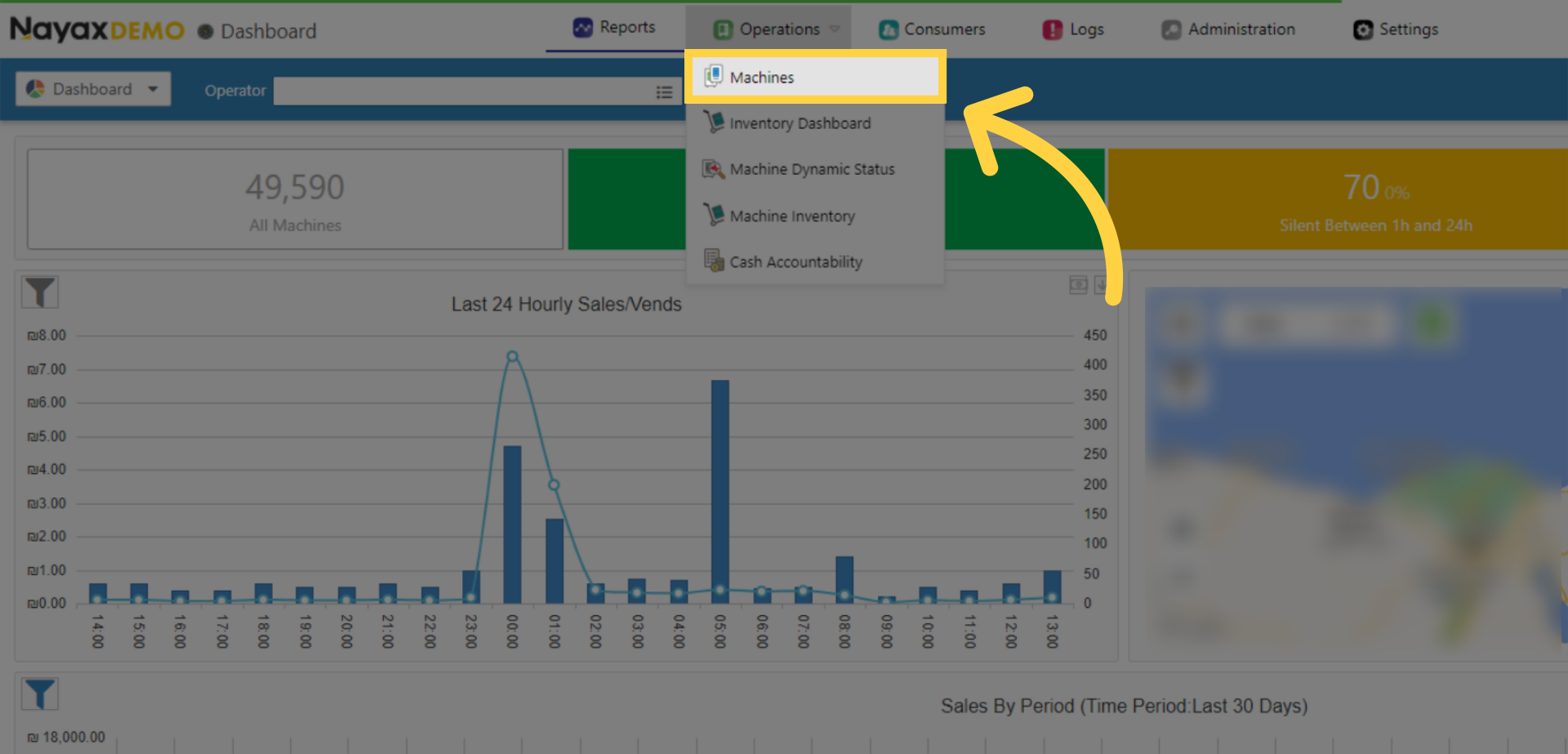

Click Machines Tab
Image AttachedClick on the Machines tab from the drop-down menu.

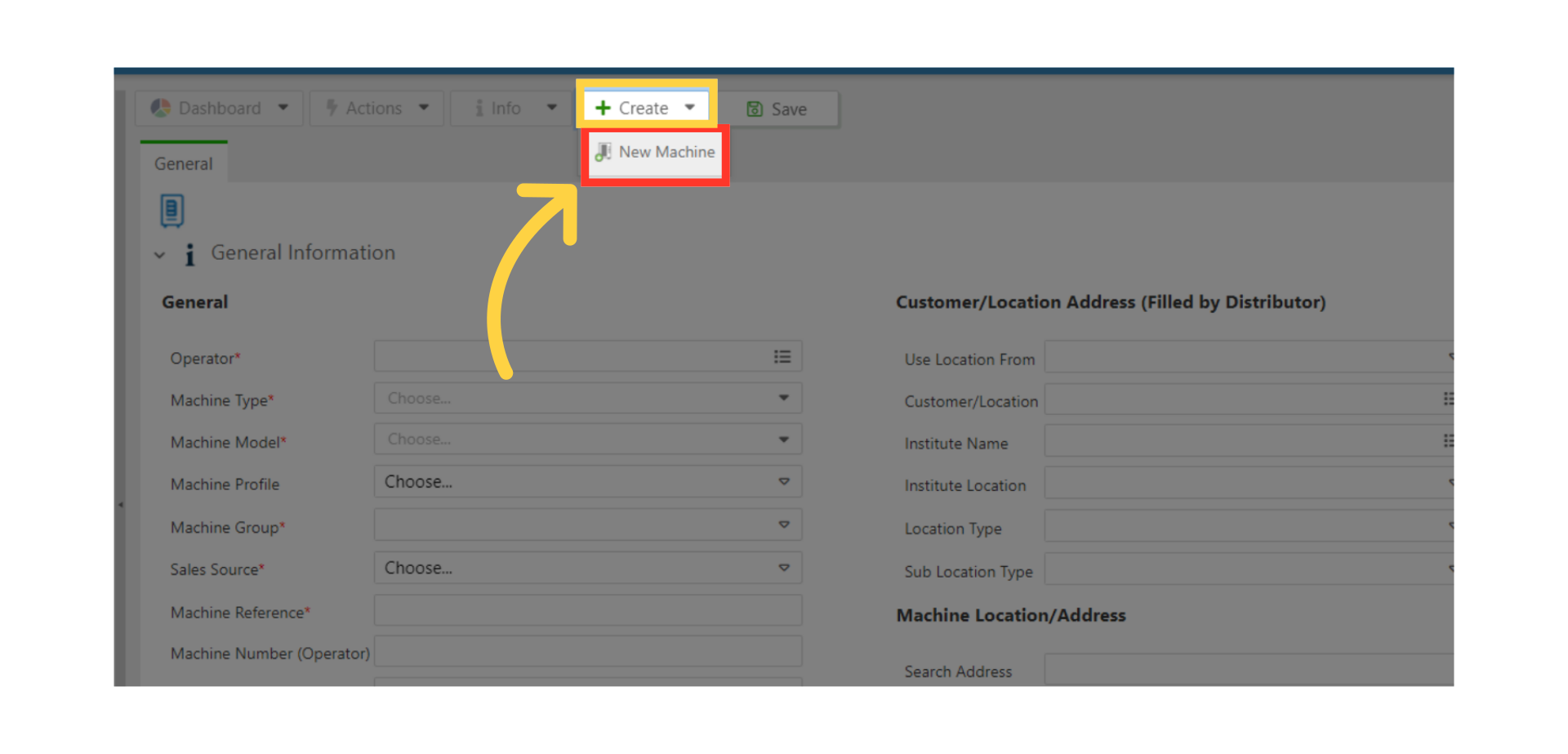

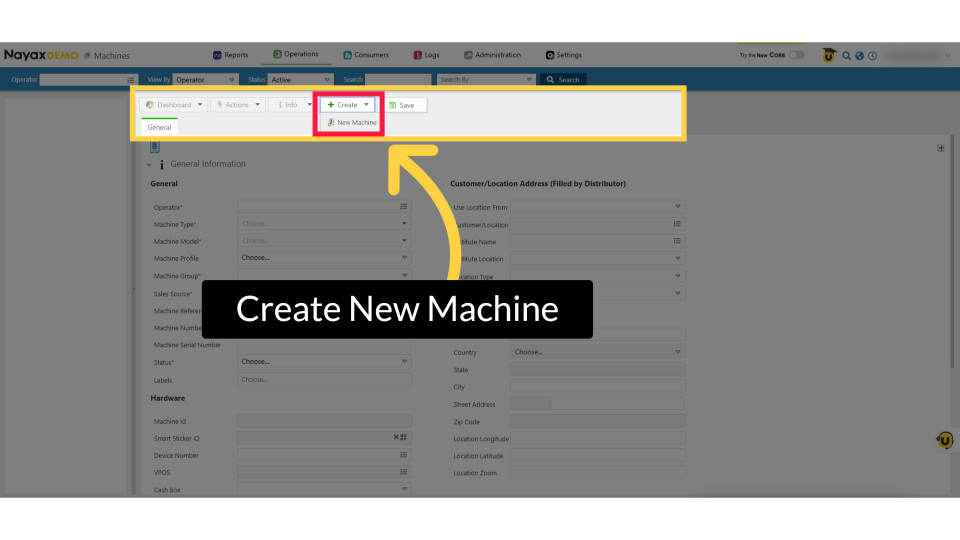

Click on the Create Tab
Image Attached

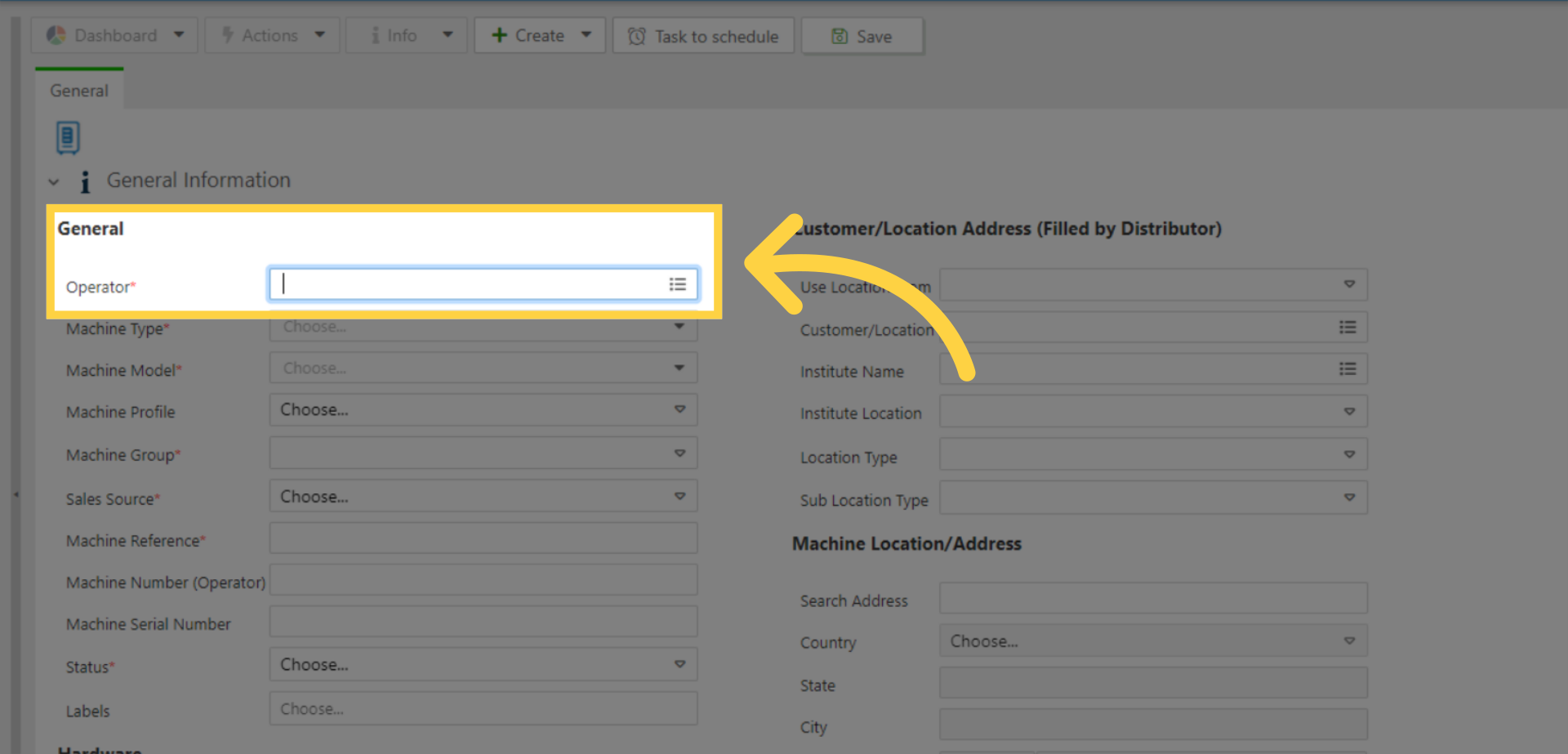

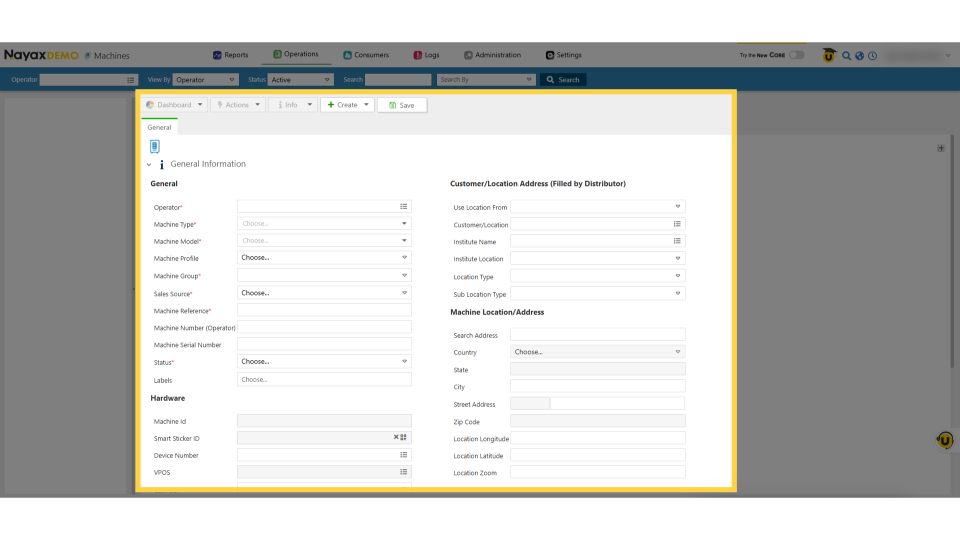

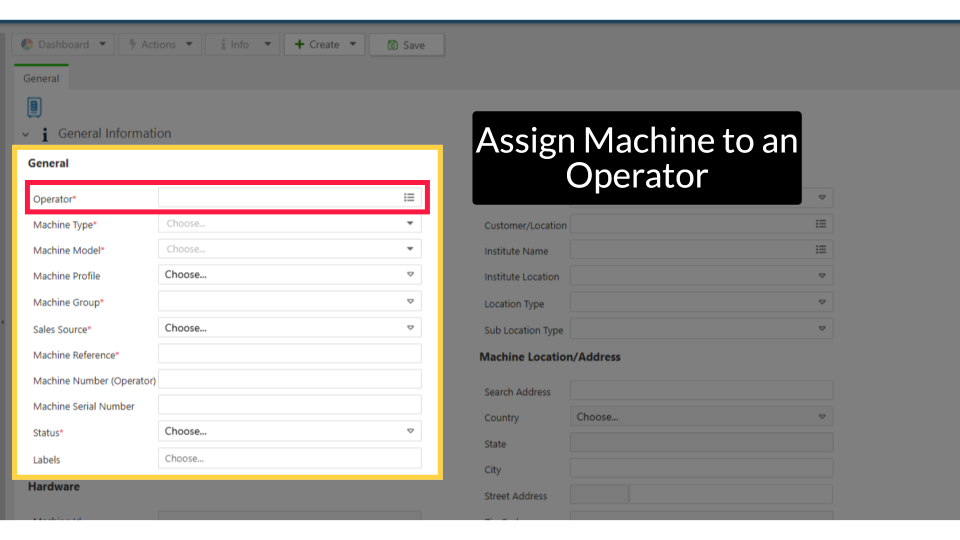

Enter Operator\Company
Image AttachedOn the main general section now enter the Operator / Company name.
This machine will be created under the hierarchical tree.

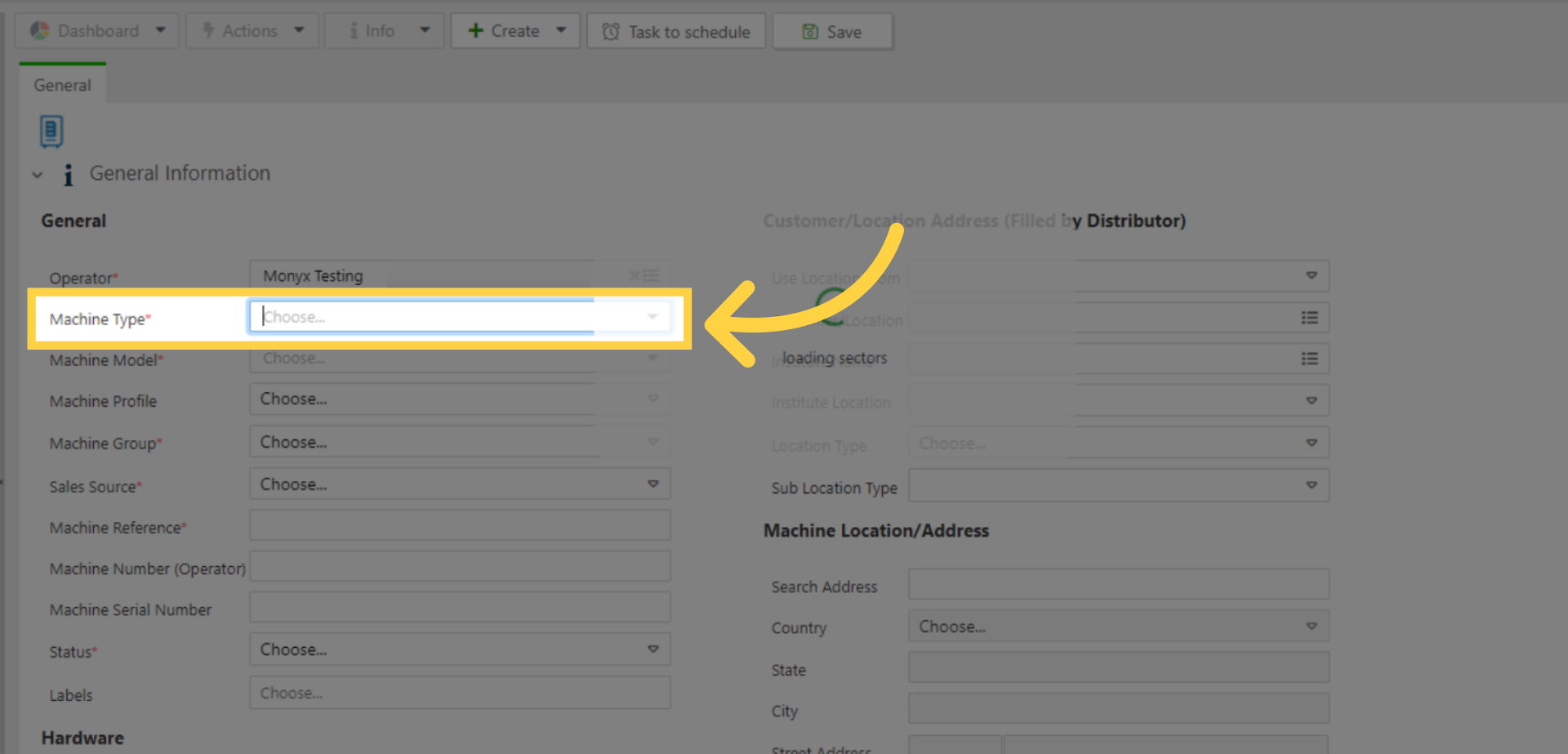

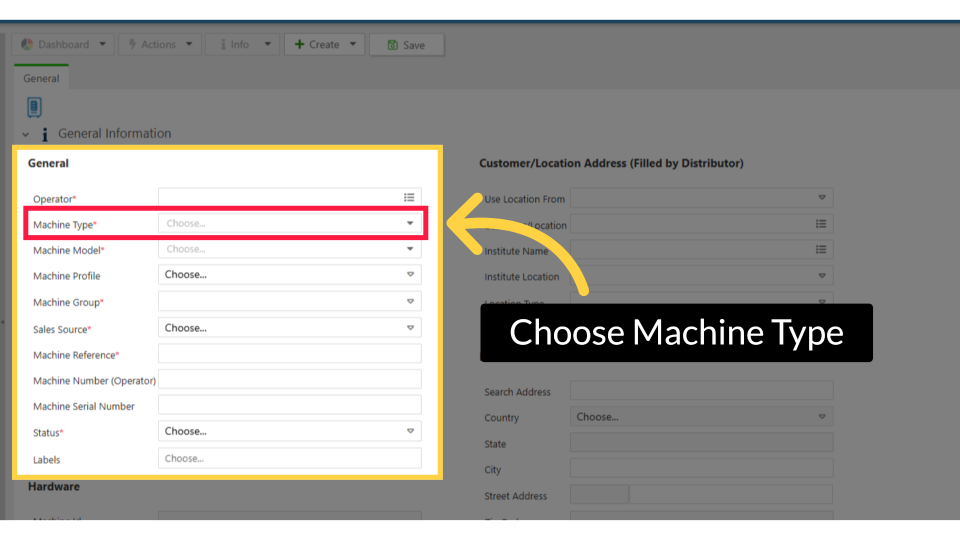

Choose Machine Type
Image AttachedSelect the type of the machine type from the drop down menu.

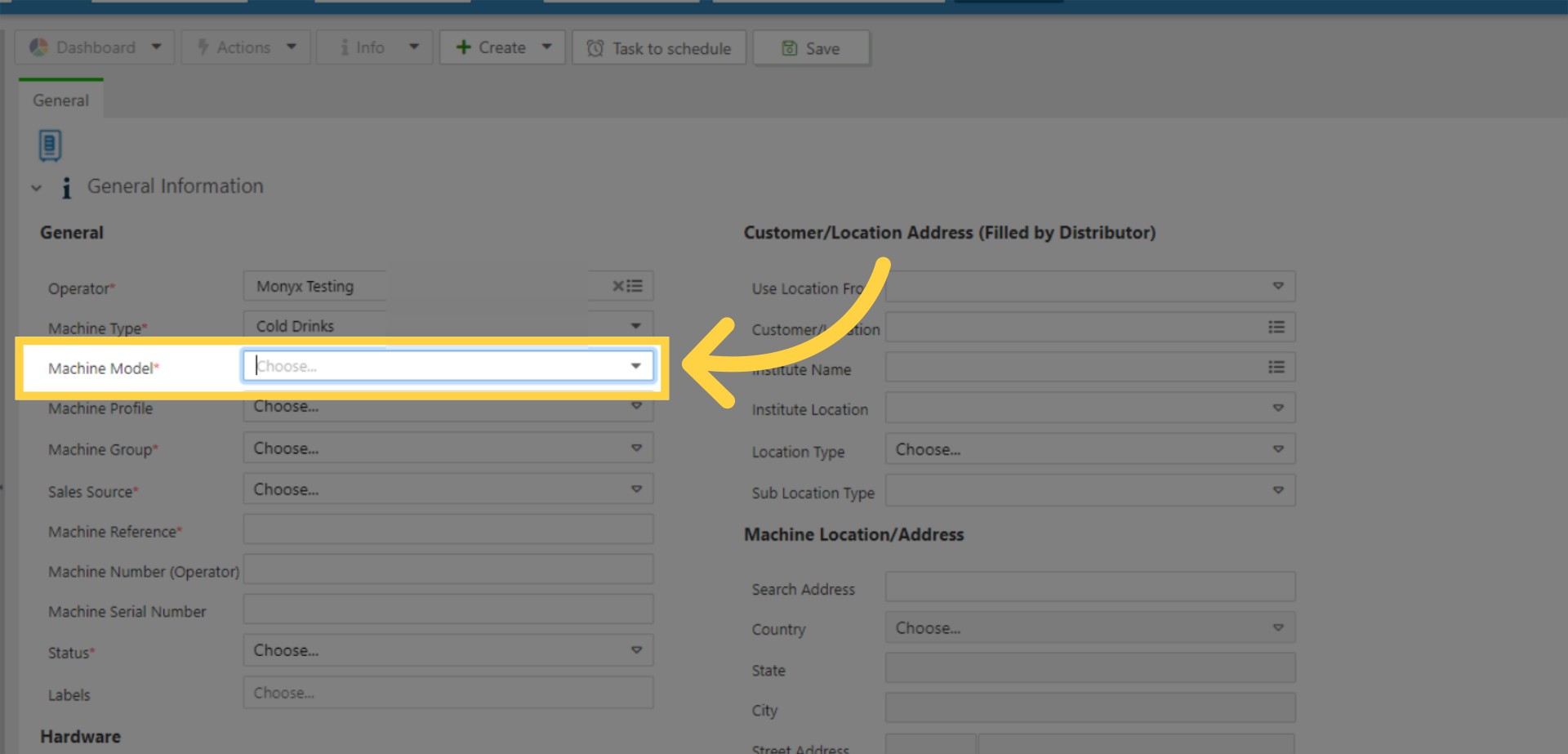

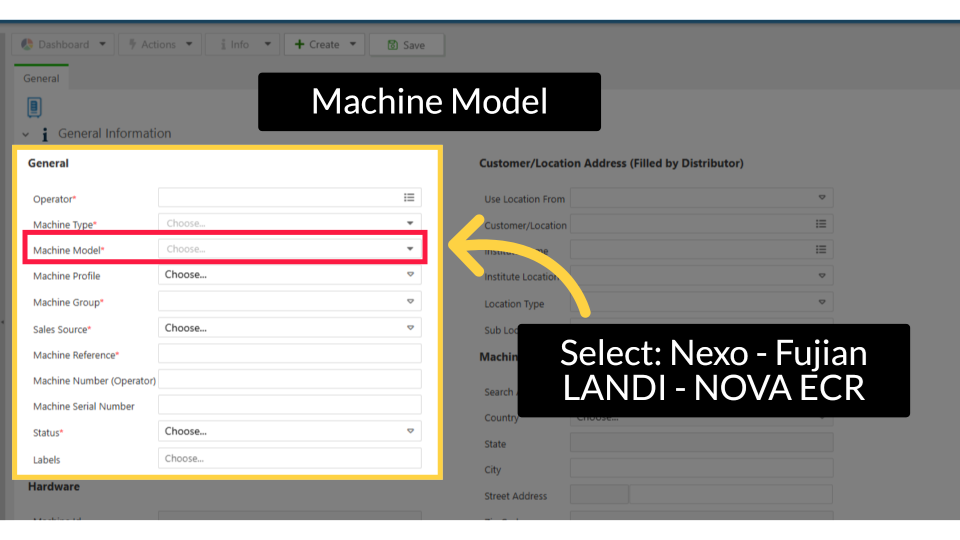

Select Machine Model
Image AttachedSelect the machine model that the Nayax devices will be installed in.
For Retail Machines select: Nexo - Fujian LANDI - NOVA ECR

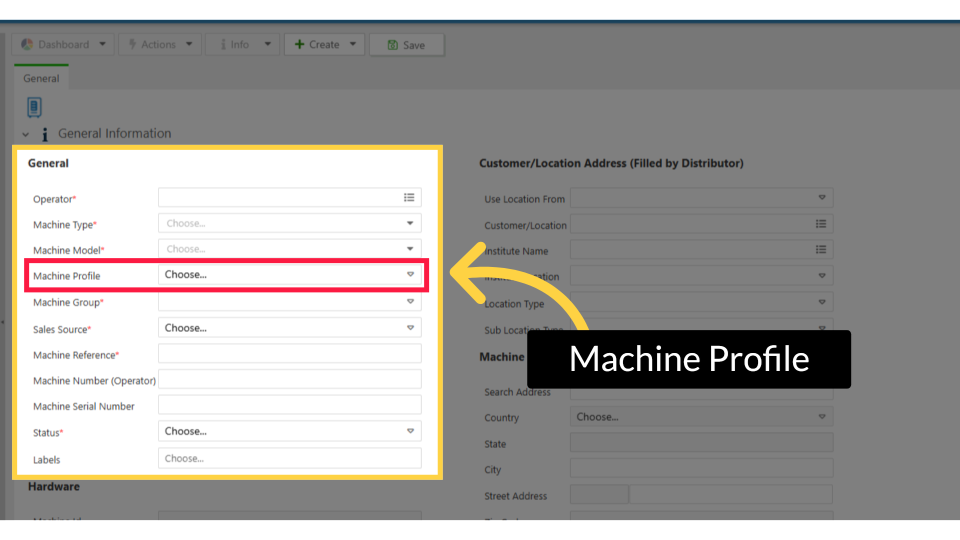

Machine Profile
Image AttachedSelect the machine profile from the drop-down list.
This option configures the ability of the device to read transactions from the machine.

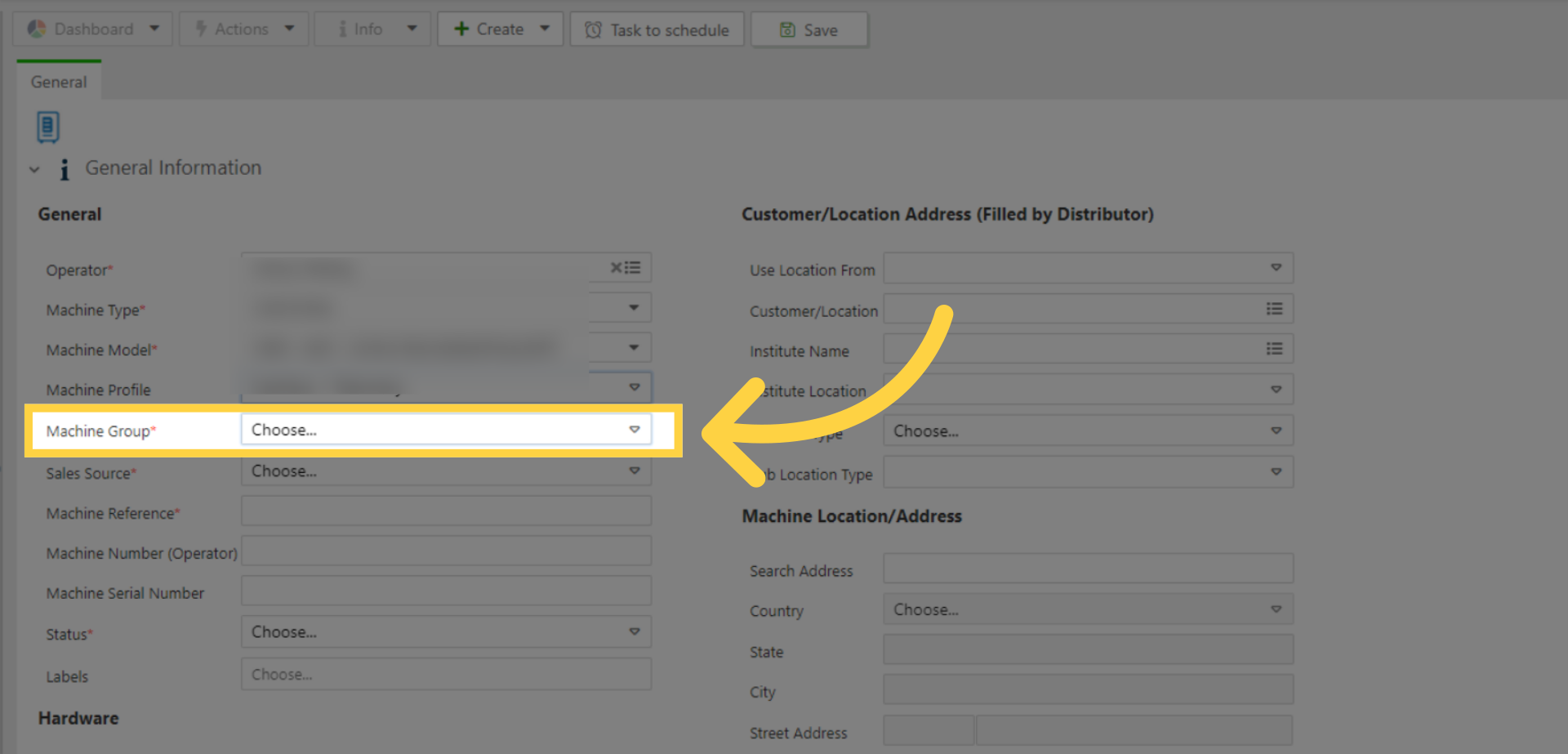

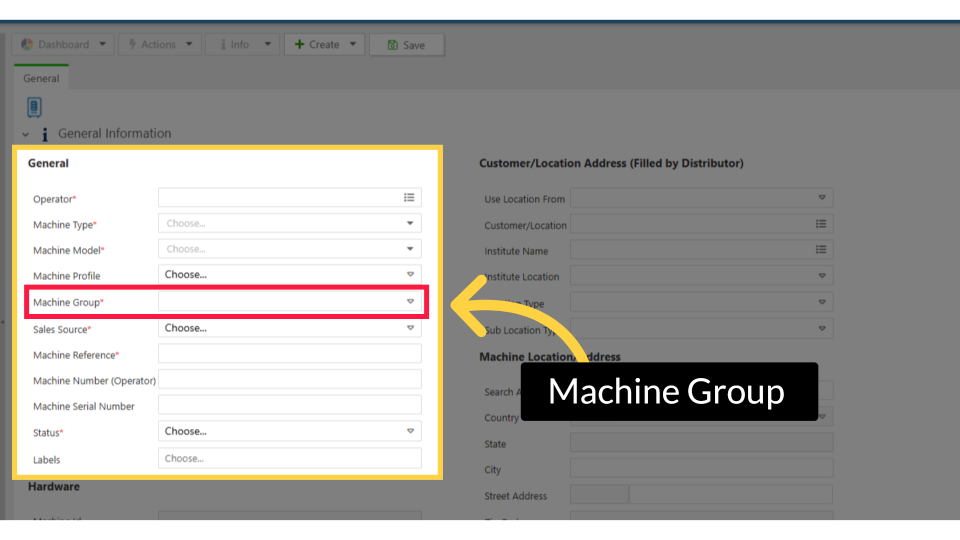

Select Machine Group
Image AttachedSelect a machine group from the drop-down list to which the machine will be associated.

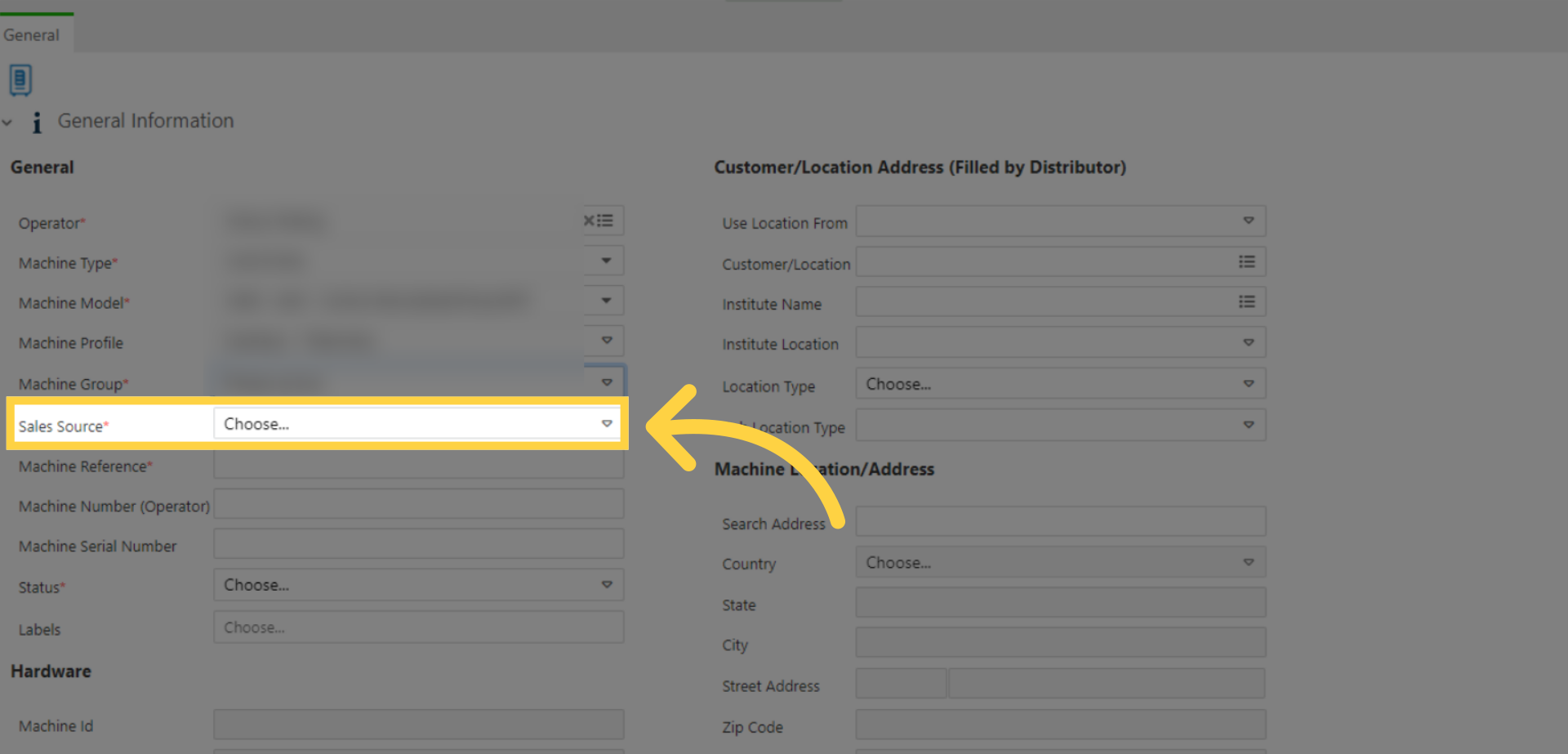

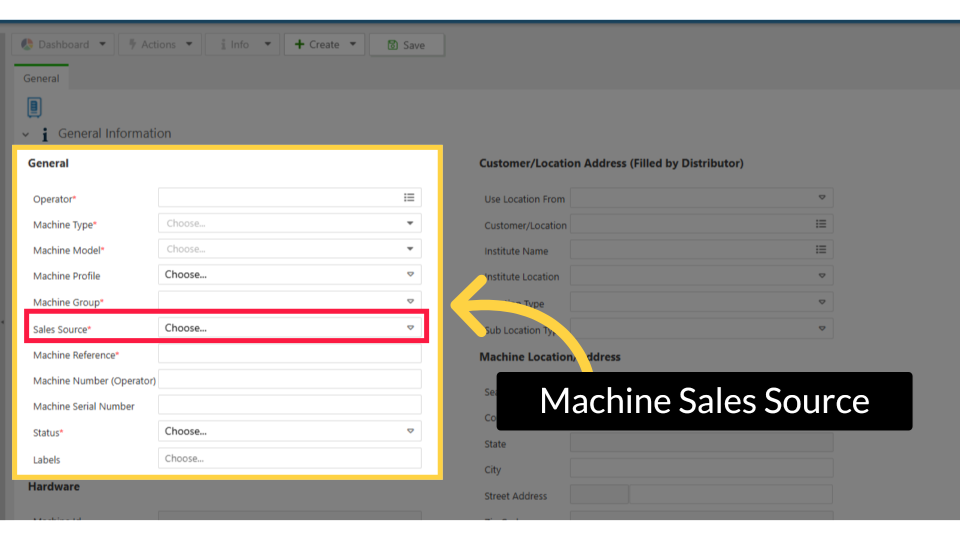

Select Sales Source
Image AttachedThe options are as follows however the others are irrelevant for Retail use:
- "Live Transactions" - Sales are reported immediately to DCS.
- "DEX/DDCMP" - Sales are stored on the unit, and will be sent to the DCS on the next DEX read.
- "Fuji" - a sales protocol for specific Fuji machines.

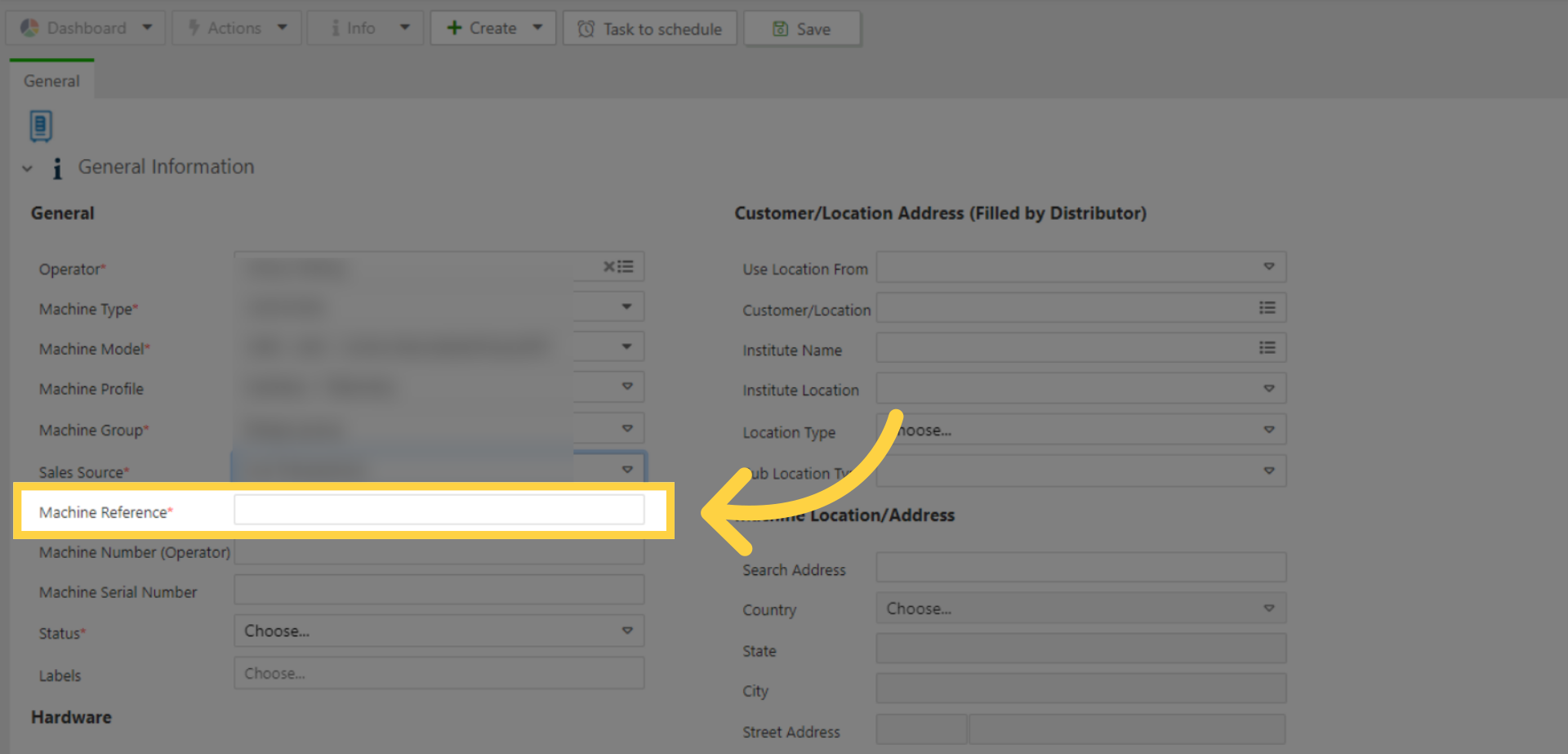

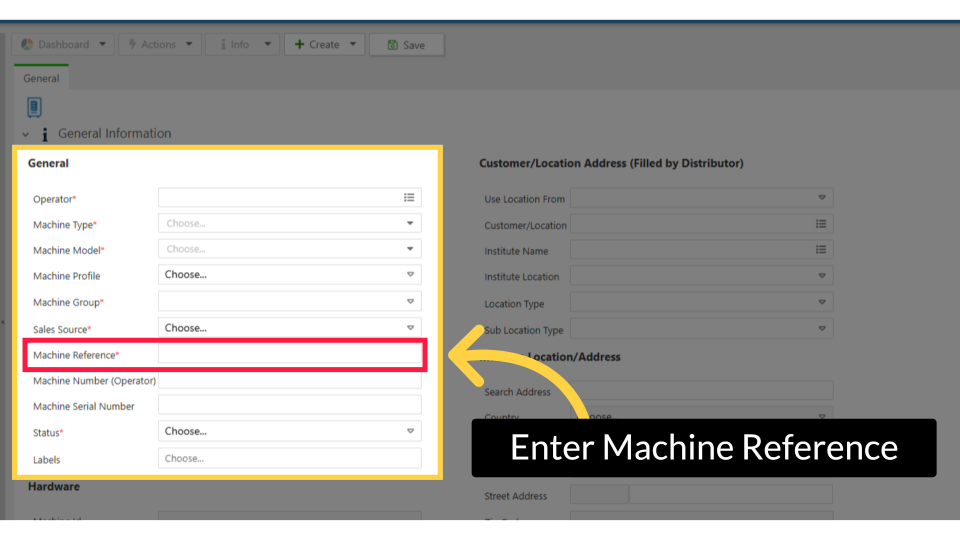

Enter Machine's Reference
Image Attached

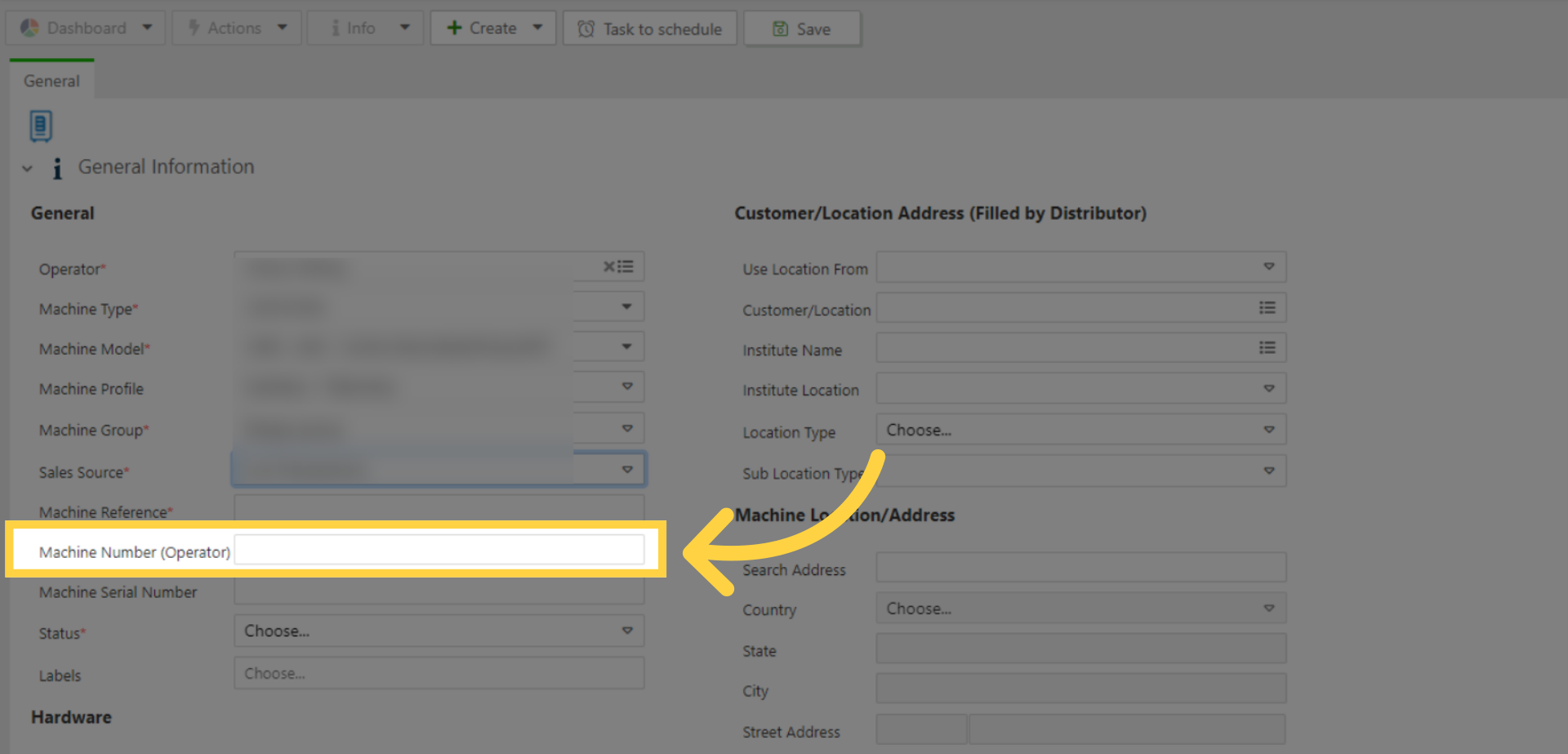

Enter Machine's Number (Operator)
Image Attached.png)

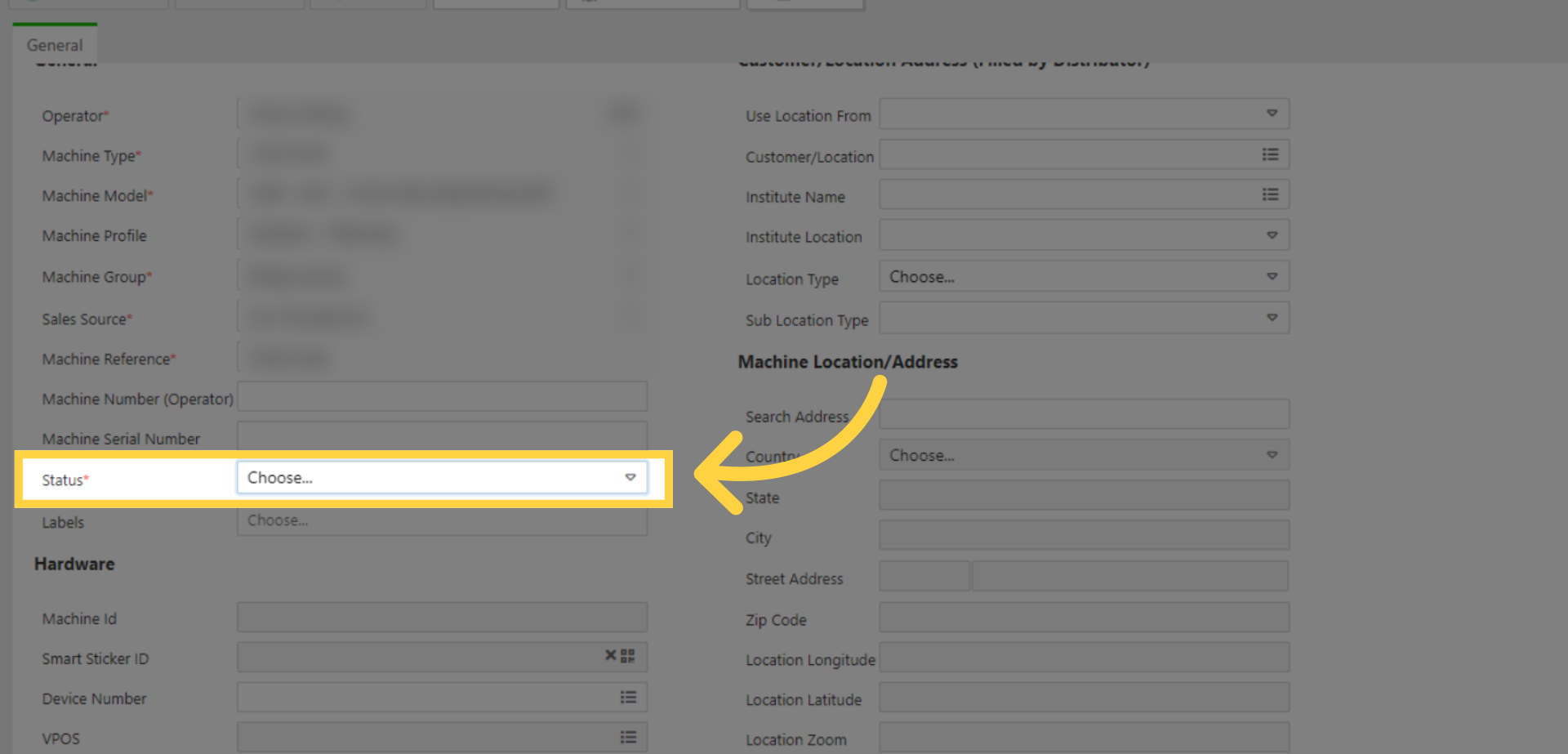

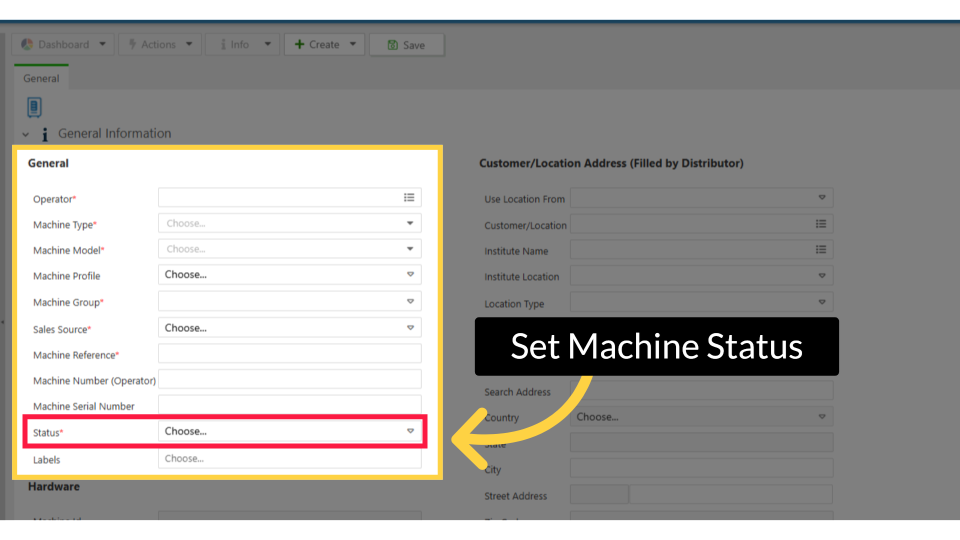

Set Status of Machine
Image Attached

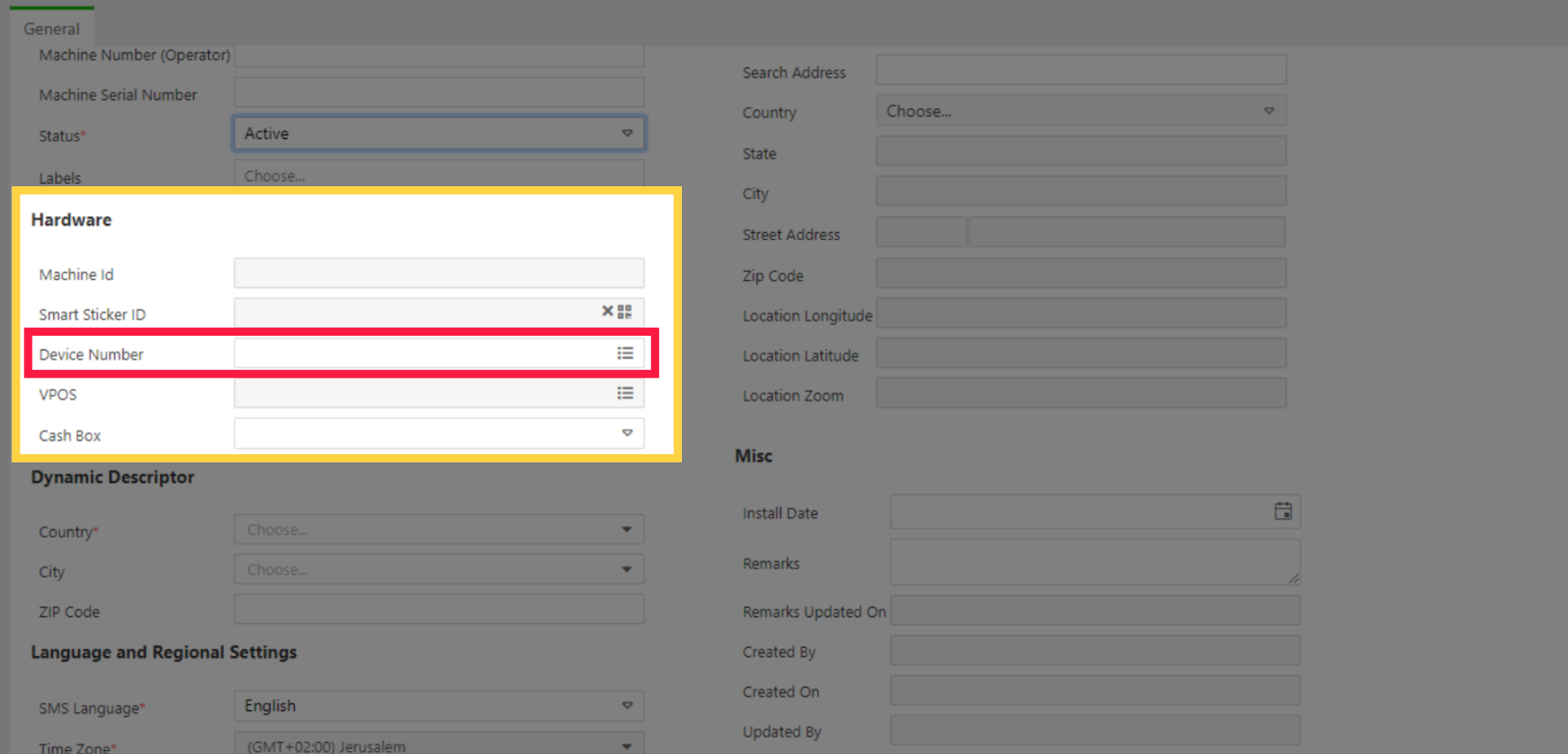

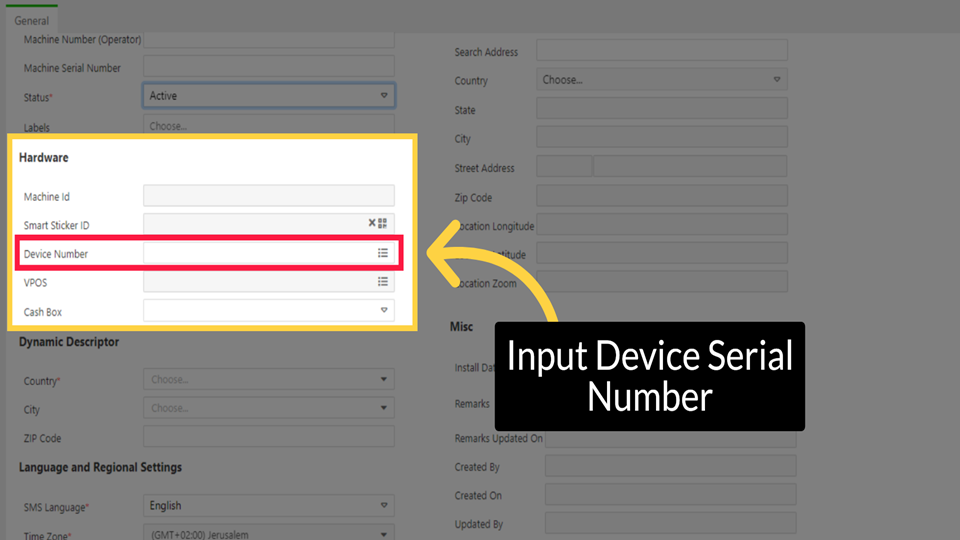

Hardware
Image AttachedDevice Number as highlighted in RED on the visual: Type in the the number of the device that appears on the box or back of the device.
Machine ID will automatically appear after the creation of the machine.
VPOS leave blank
Cash box leave blank

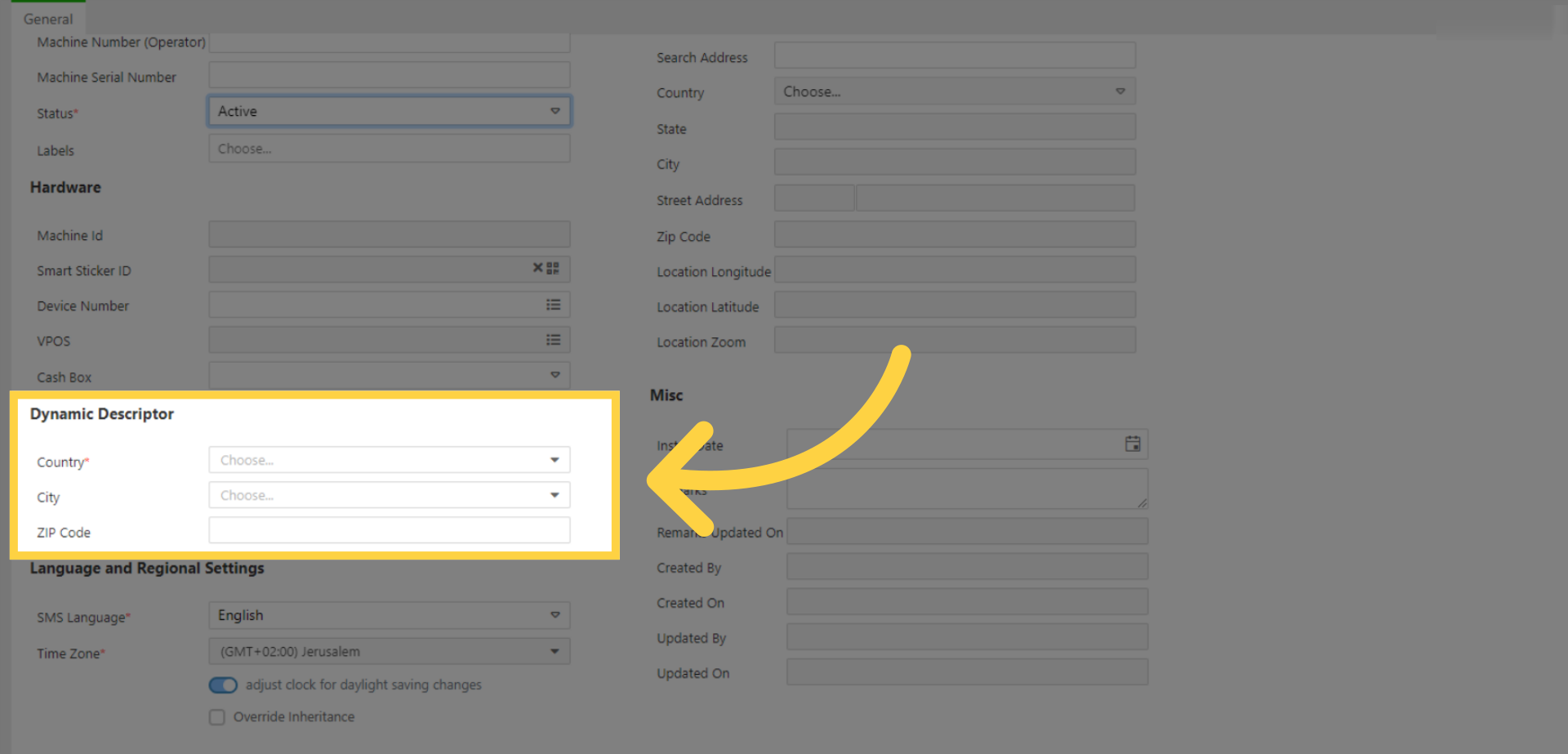

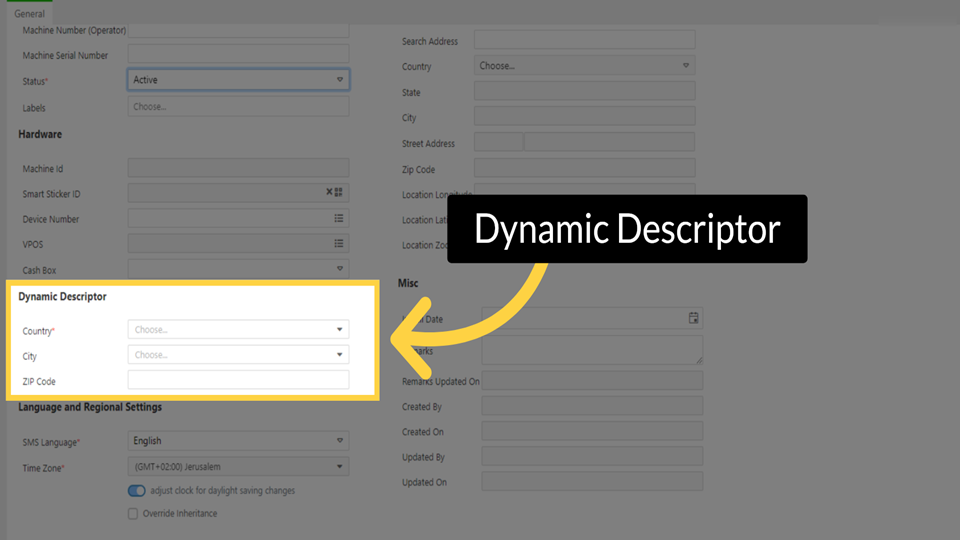

Dynamic Descriptor
Image AttachedPlease fill in your address including your zip / post code

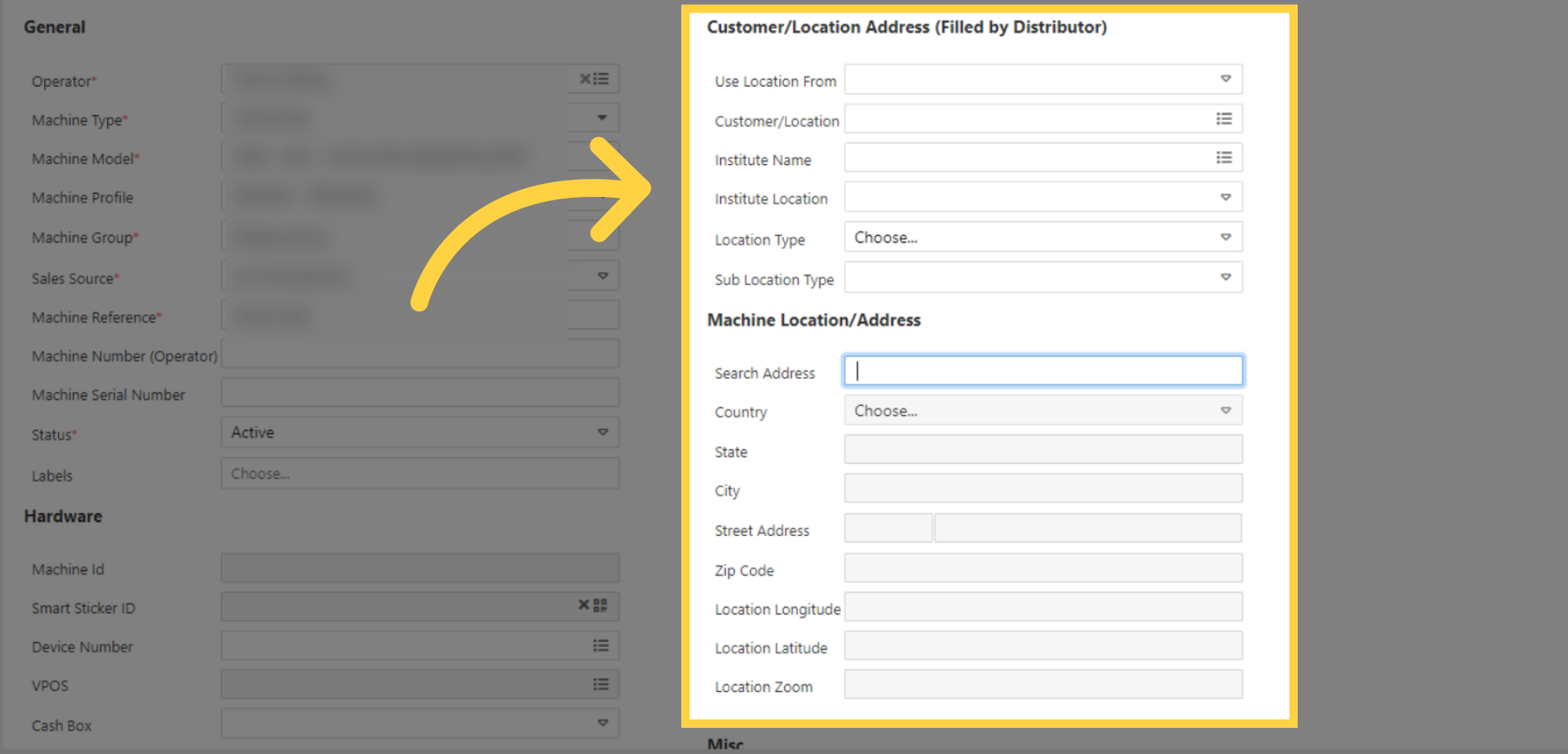

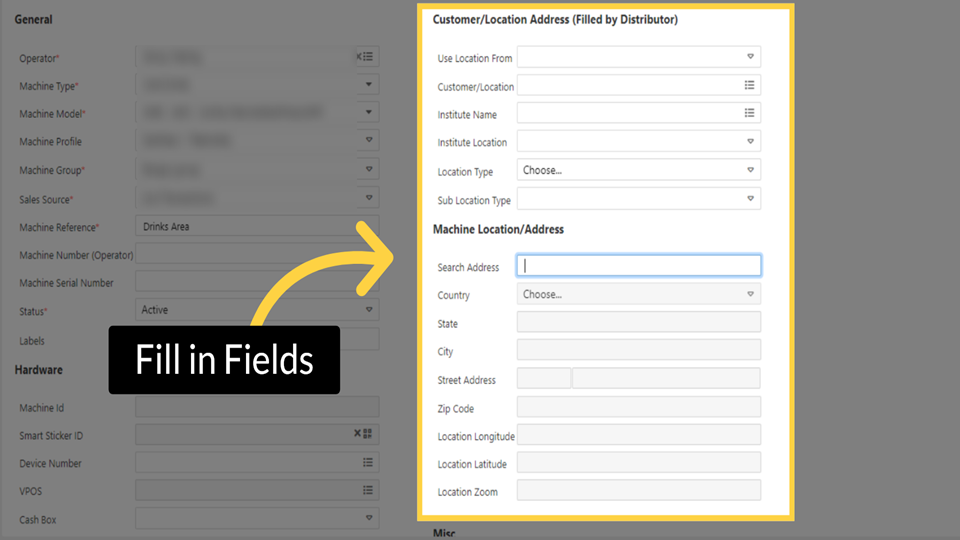

Fill in Fields
Image Attached

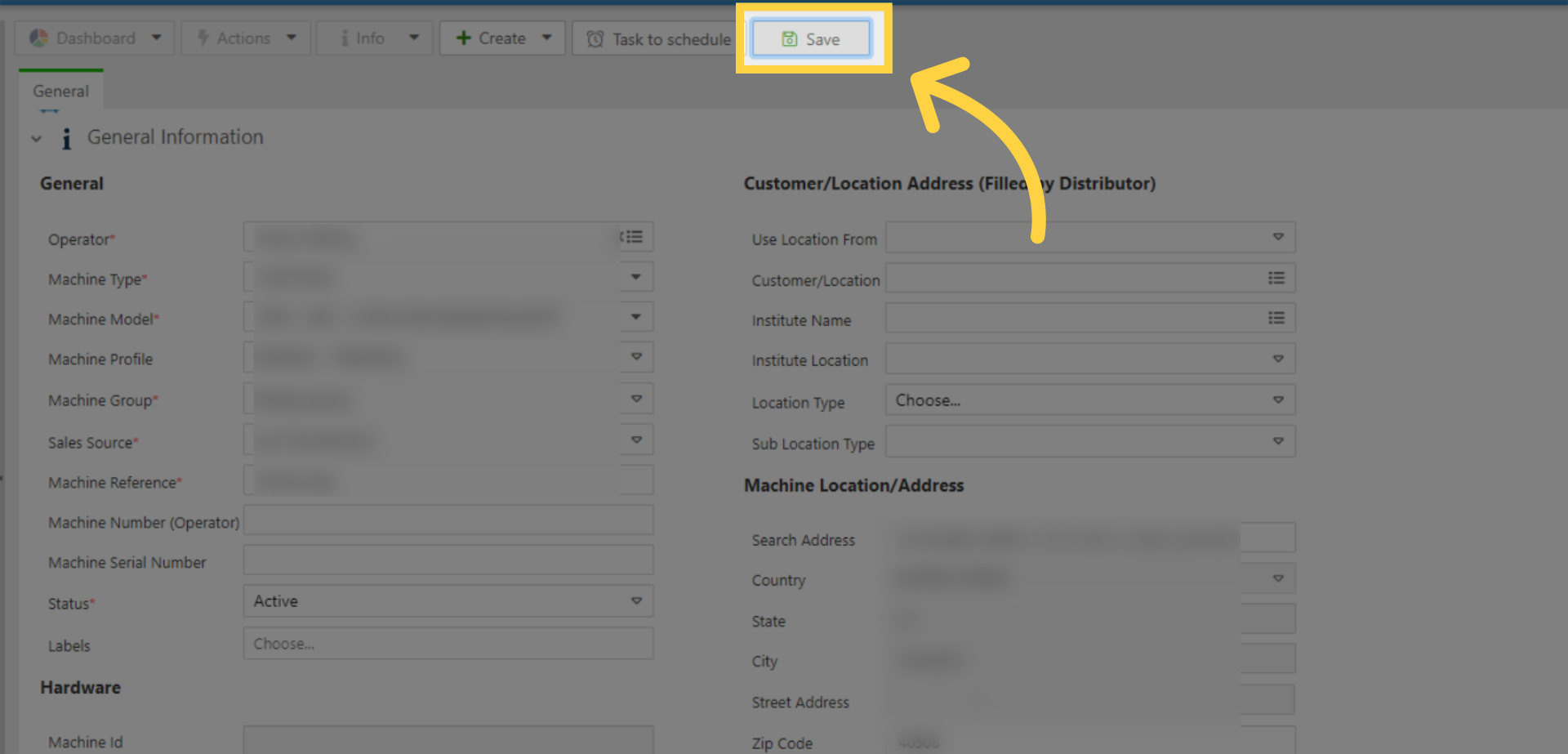

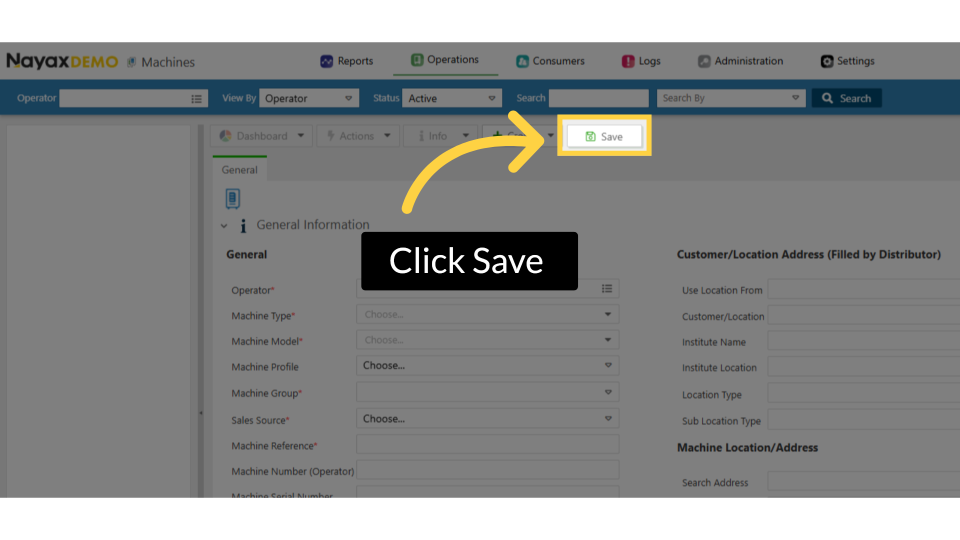

Click Save
Image Attached
Thank you!
