How to Activate an EV Meter Smart S Charging Station | VPOS Media S
1
Video Guide
2

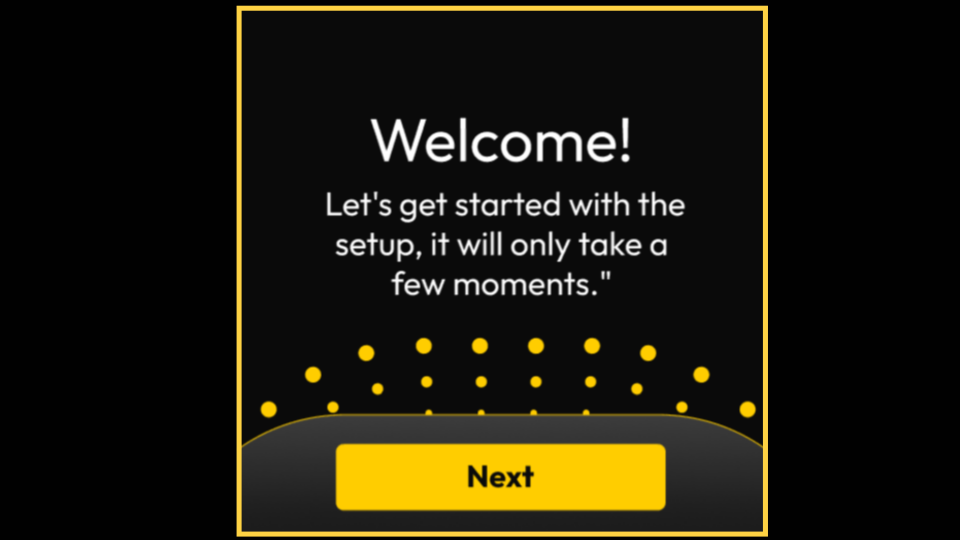

Welcome Screen
Image Attached
When powering on the charging station the following welcome message will appear
'Let’s get started with the setup; it will only take a few moments' to proceed tap next to begin setup.
3

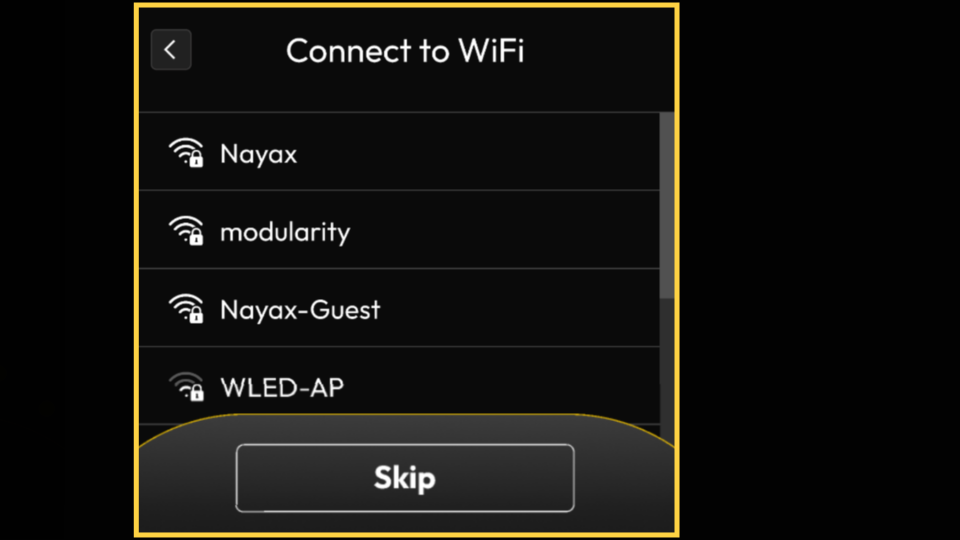

WiFi Configuration
Image AttachedView the list of available WiFi networks
- Select your network from the list
- Enter your WiFi password if required
- Tap Connect
Alternatively: Tap Skip if you don't want to connect to WiFi
4

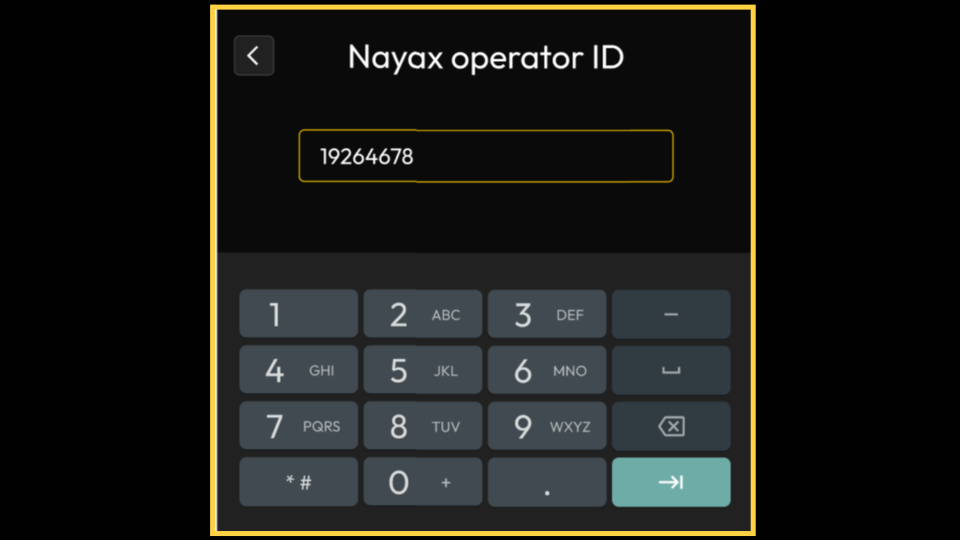

Operator ID
Image Attached
Enter your operator number from the Energy core platform and Tap Next.
Note: This step applies to CSMS users only
5

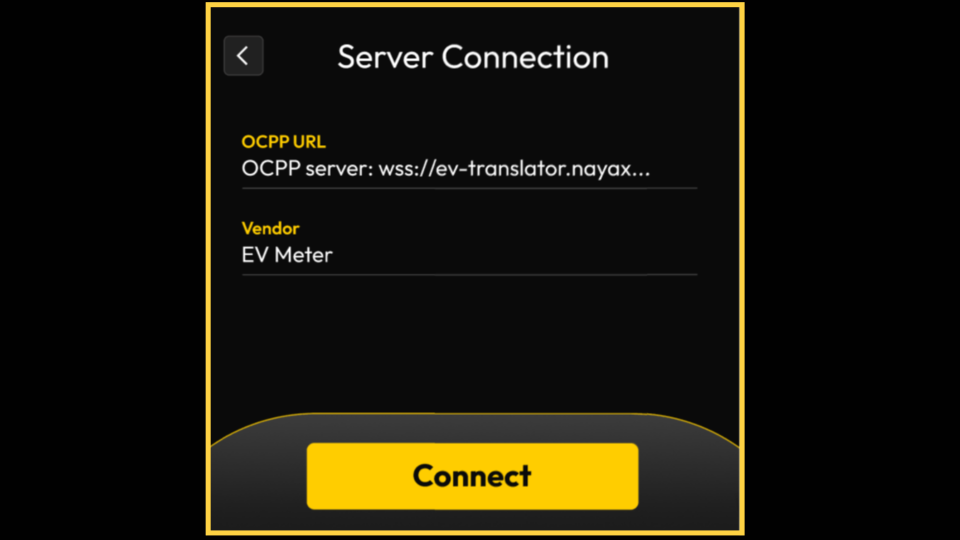

Server Setup
Image Attached
Review the OCPP server details: Default server and vendor information will be displayed.
Please Note: The OCPP URL settings can be changed after setup on the device OCPP Configuration settings screen.
Tap connect to proceed
6

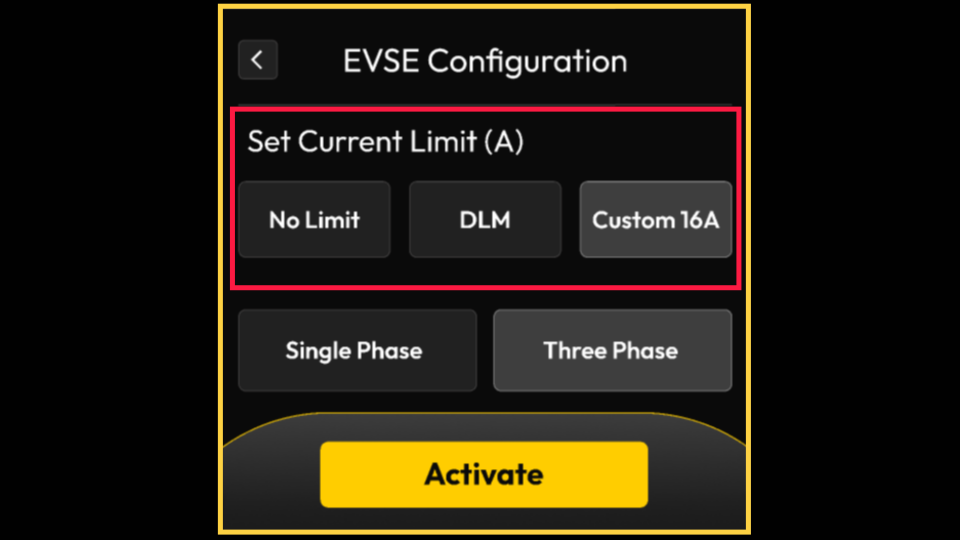

EVSE Configuration: Configure Current Limit
Image AttachedSelect the appropriate current limit for your setup from the options as highlighted:
- No Limit
- DLM (Dynamic Load Management) Default
- Custom (16A)
7

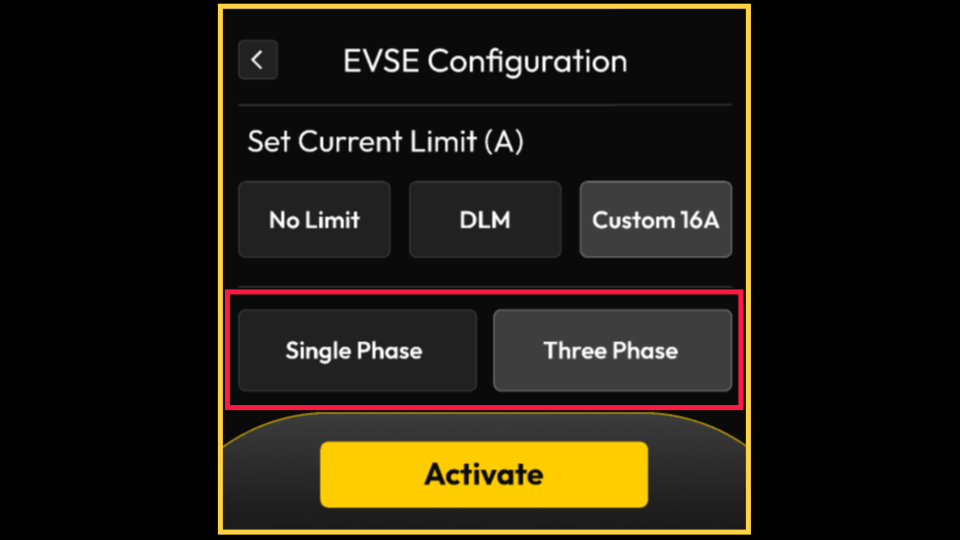

Select Power Phase
Image Attached
Select the correct power phase for your setup from the options as highlighted:
- Single Phase
- Three Phase (default setting)
8

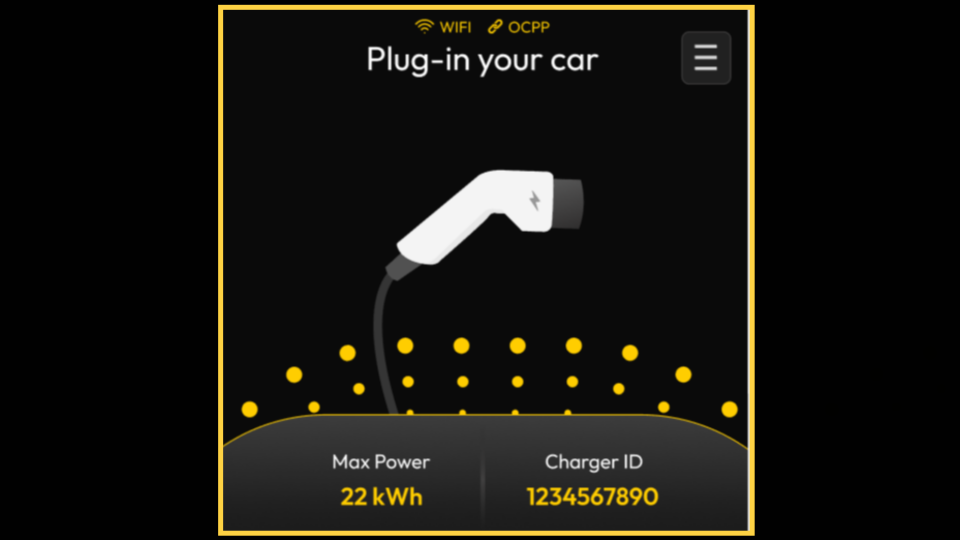

Ready to Charge
Image Attached
Once the system will have saved your configurations the screen will invite you to Plug In the charging cable to begin charging.
Thank you!
