How to Remotely Disable / Enable Use of EV Meter App | Operations

The charging stations' plug-and-charge mode, which automatically starts a charging session when a vehicle is connected. You can easily configure this feature to enable or disable app usage as needed.

2

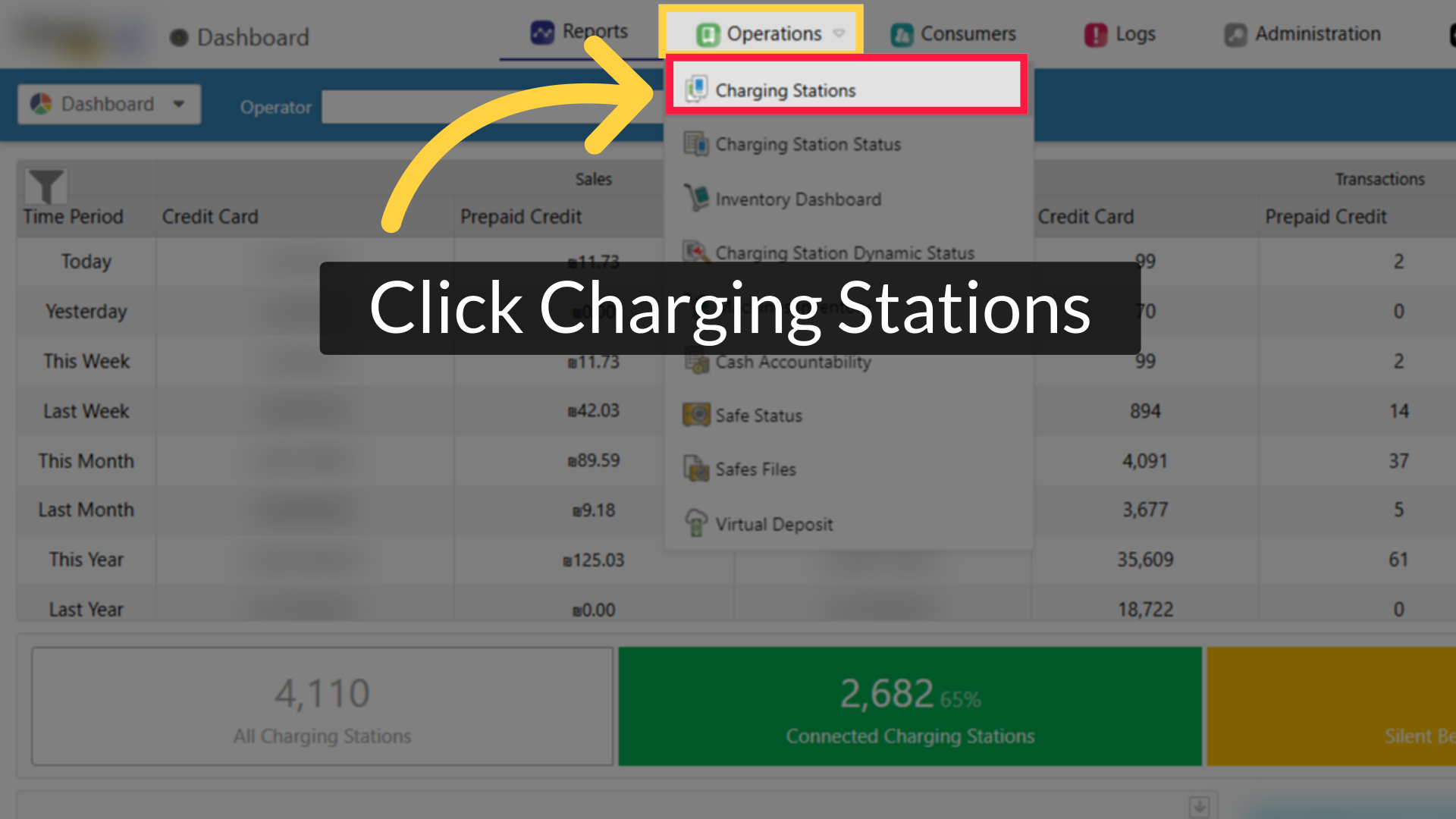

Click Charging Stations

Image Attached

On the Dashboard of your Nayax Energy Core management suite click on the Operations tab, then click on the Charging Stations tab from the drop down menu as highlighted.

3

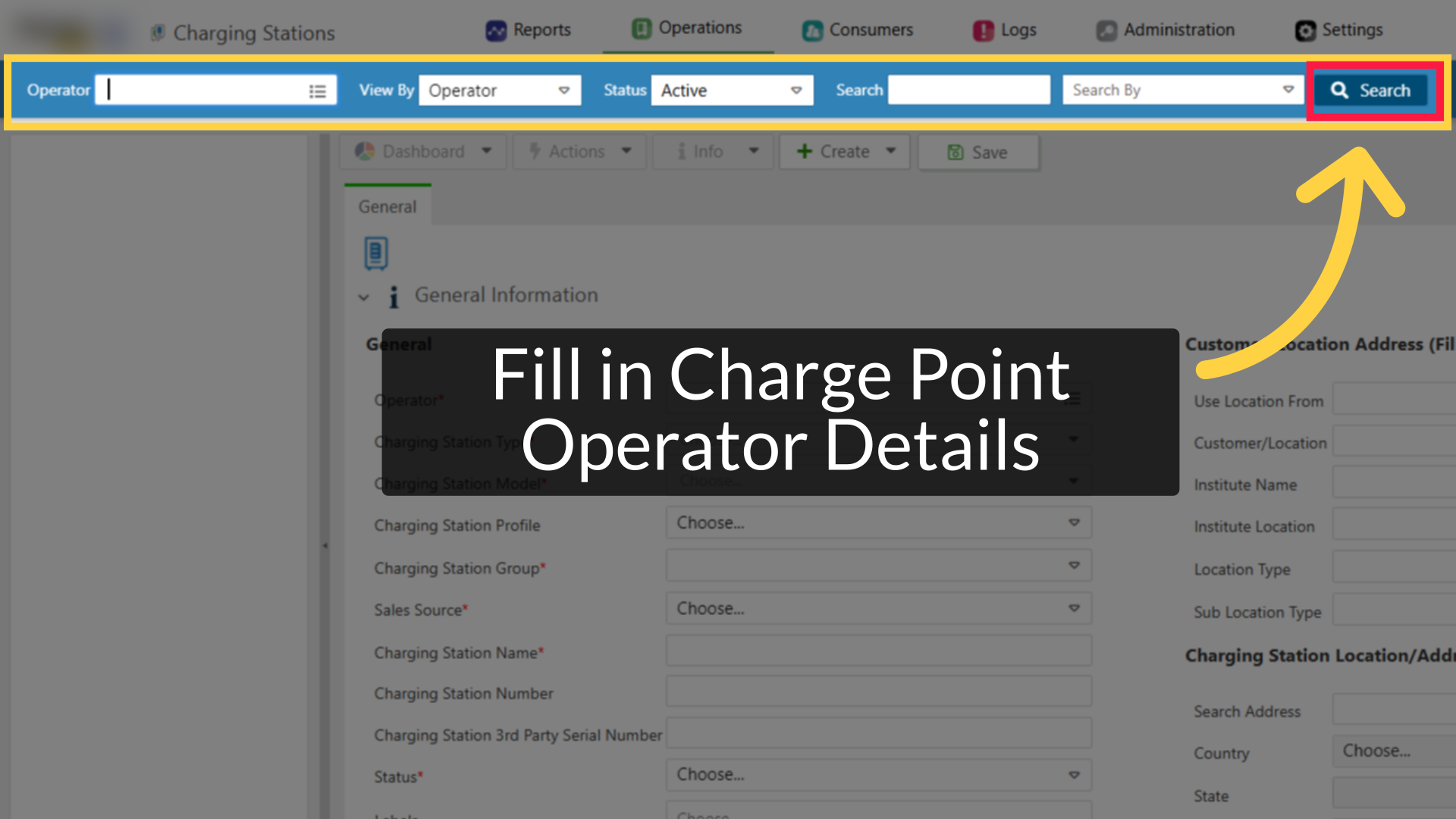

Fill in Charge Point Operator Details

Image Attached

Type in your Charge Point Operator name and any other fields to locate your Charging Point click search button as highlighted.

4

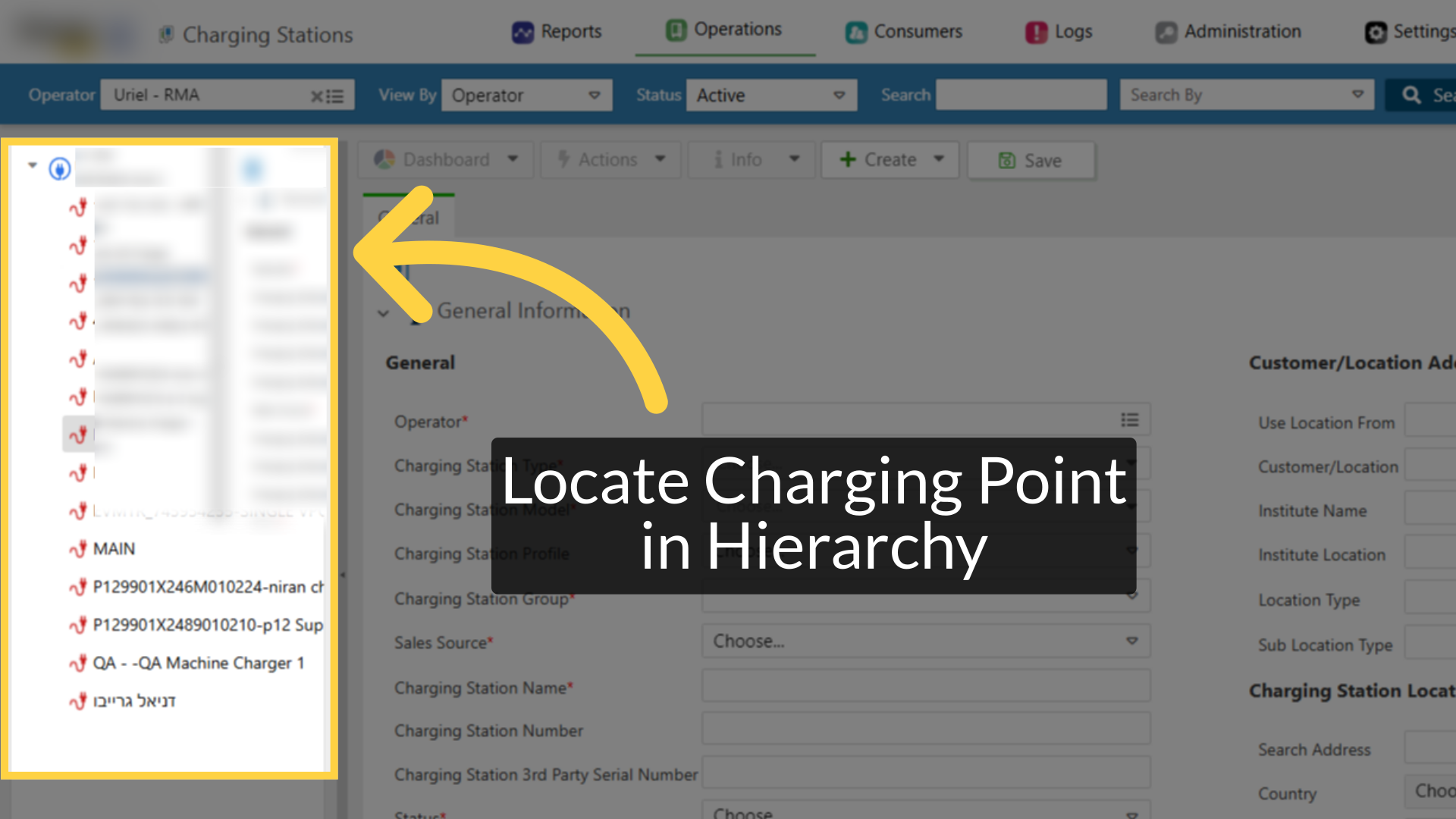

Locate Charging Point in Hierarchy

Image Attached

Locate and click on the Charging Point from the hierarchy.

5

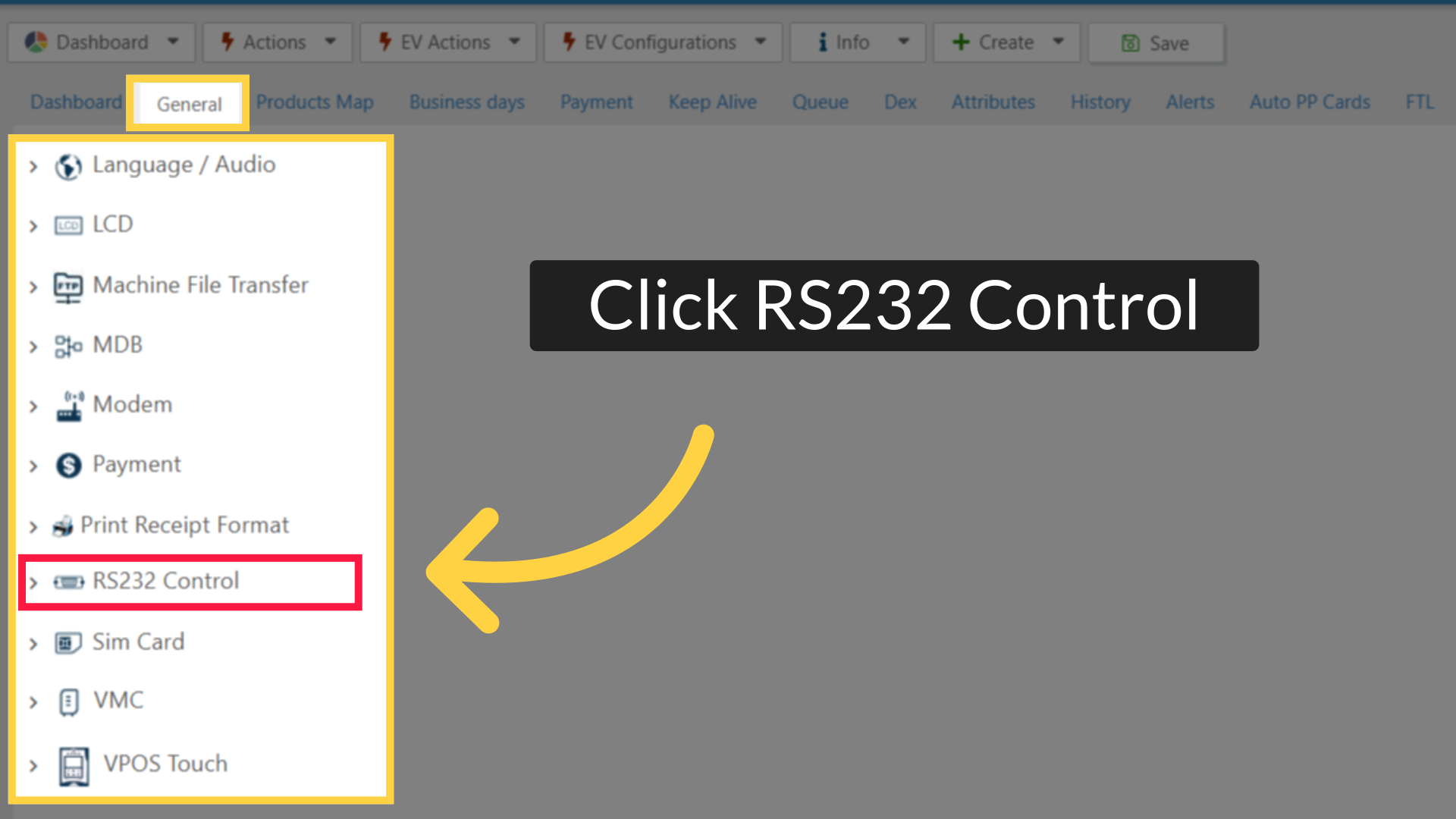

Click RS232 Control

Image Attached

From the general tab scroll and click on the RS232 Control tab as highlighted in RED on the visual.

6

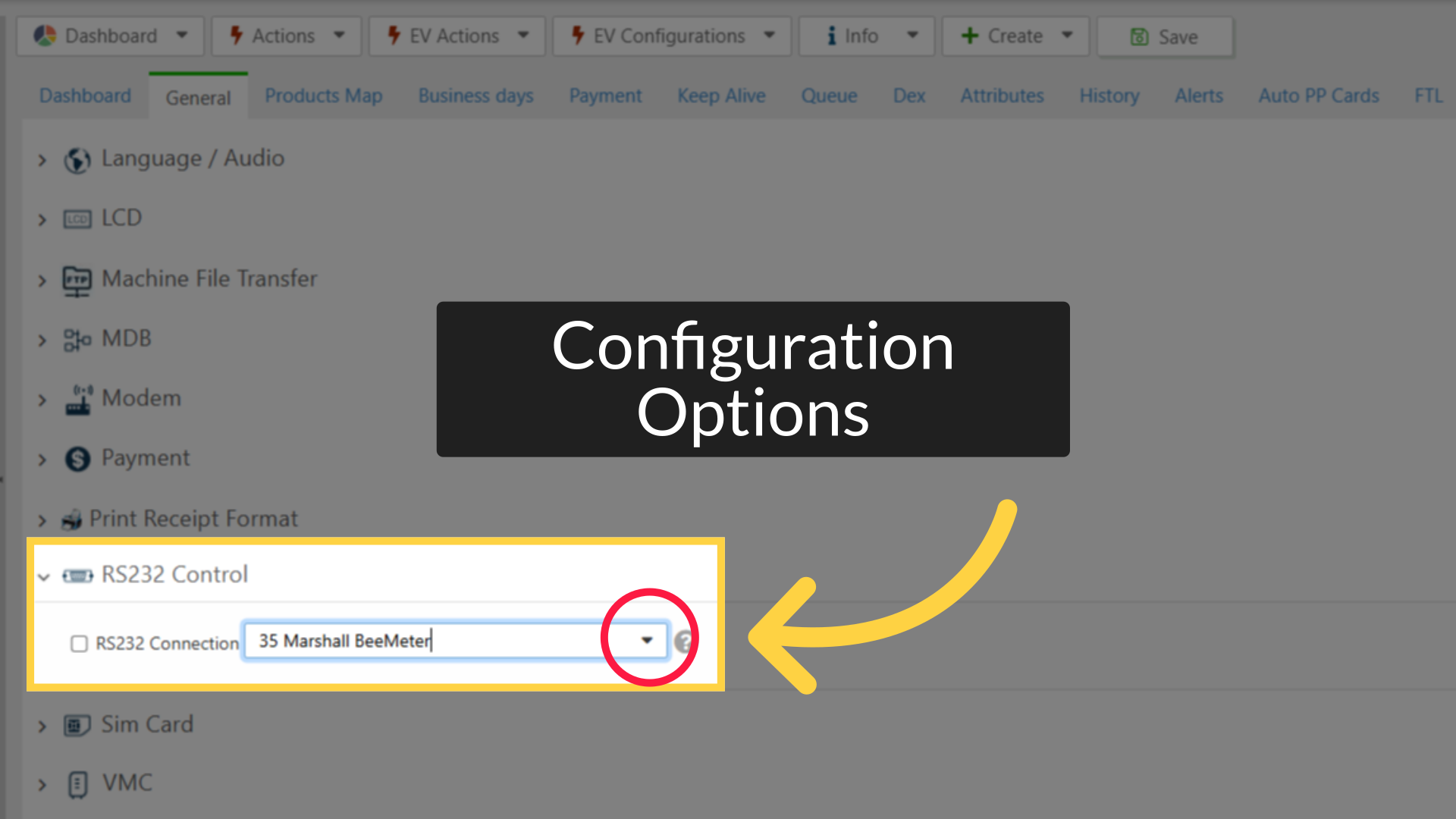

Configuration Options

Image Attached

Open the drop down menu by clicking on the arrow as highlighted.





Configuration	Use of the EV Meter APP
35 Marshall BeeMeter	Enable
00 none	Disable



7

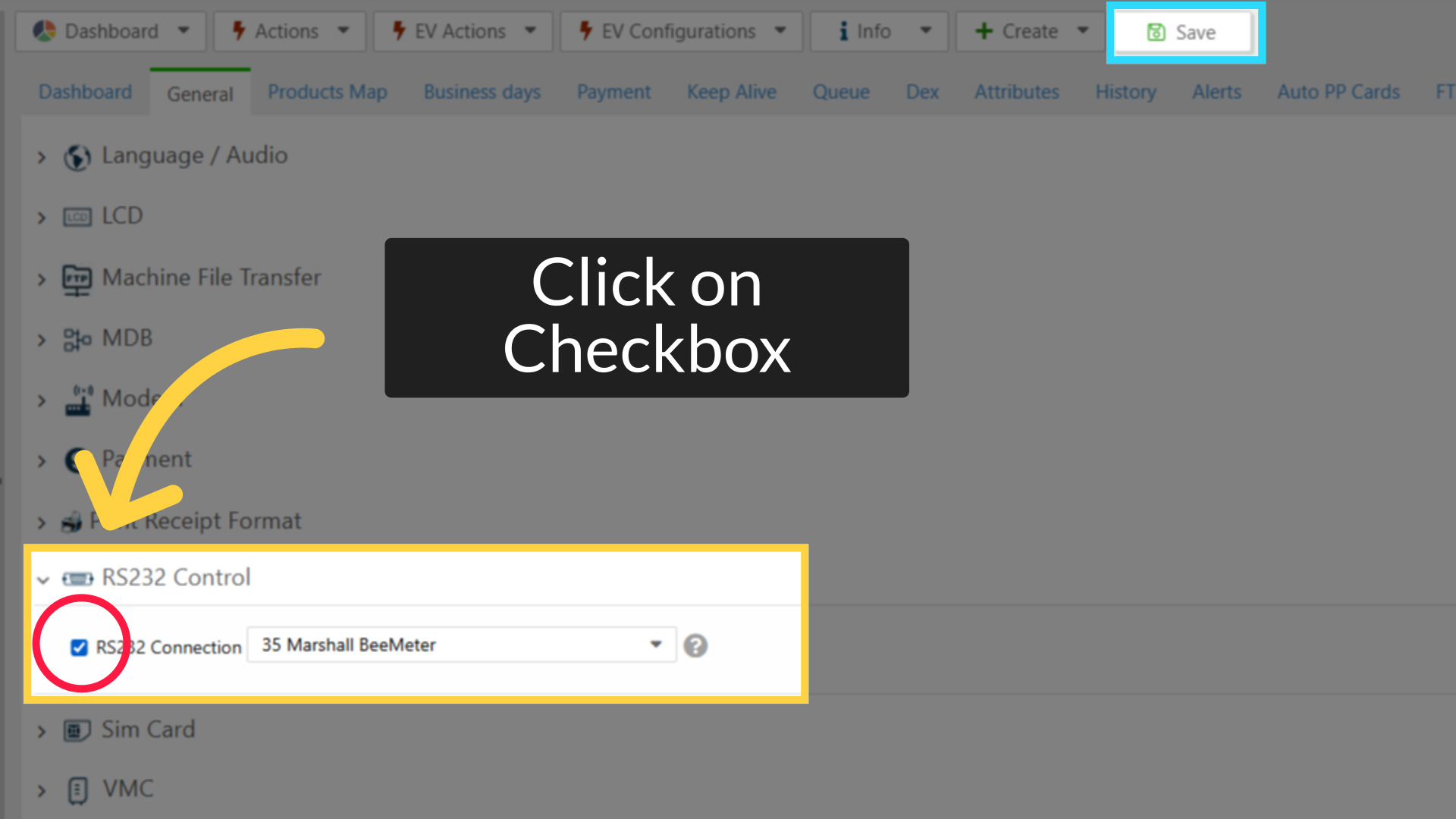

Click on Checkbox

Image Attached

Click on the checkbox located to the left of the Charging Profile attribute as highlighted then click on the save button to save your progress as highlighted in BLUE.

8

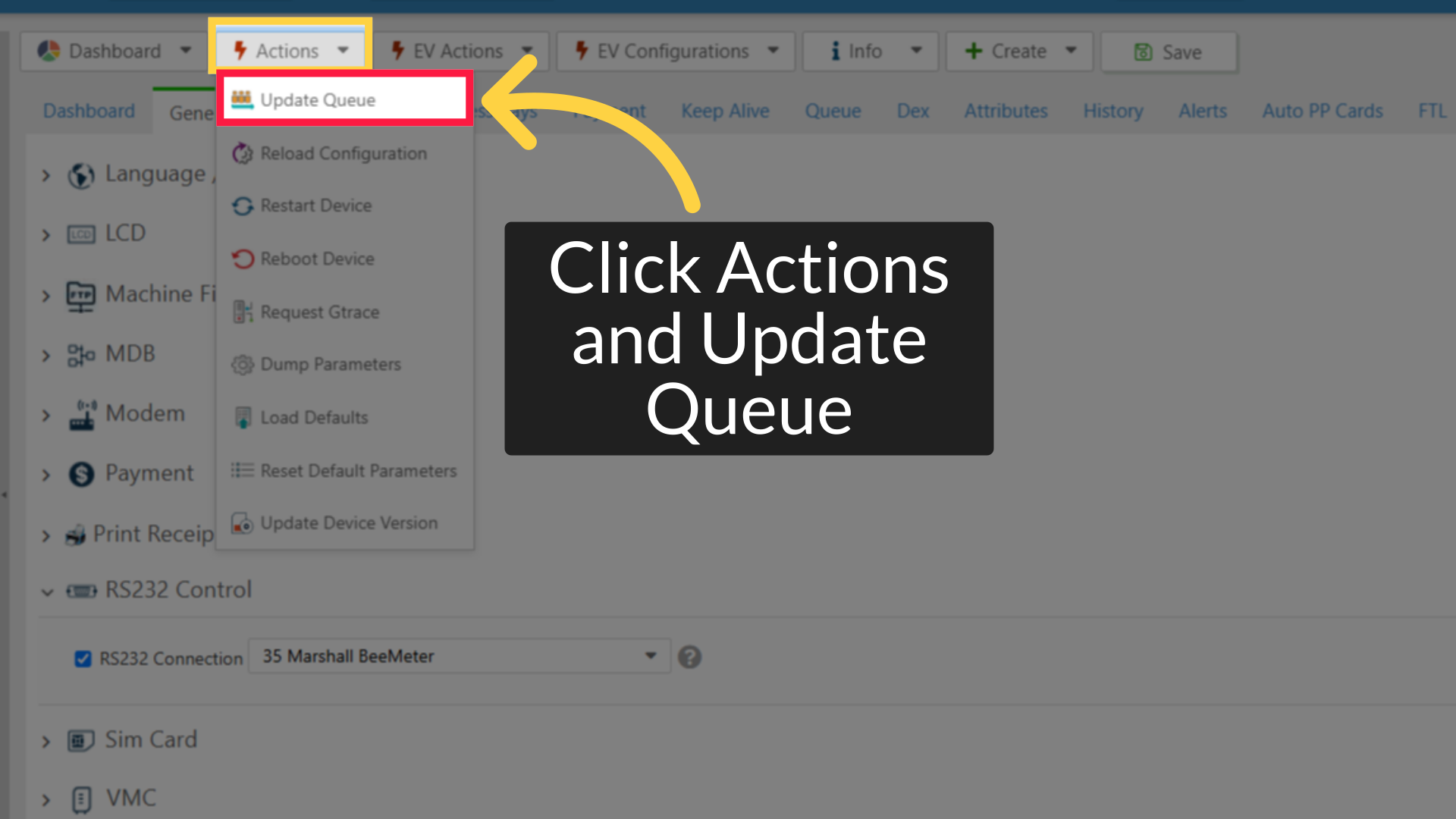

Click Actions and Update Queue

Image Attached

Then scroll to the Actions button and click Update Queue as highlighted in RED on the visual.
